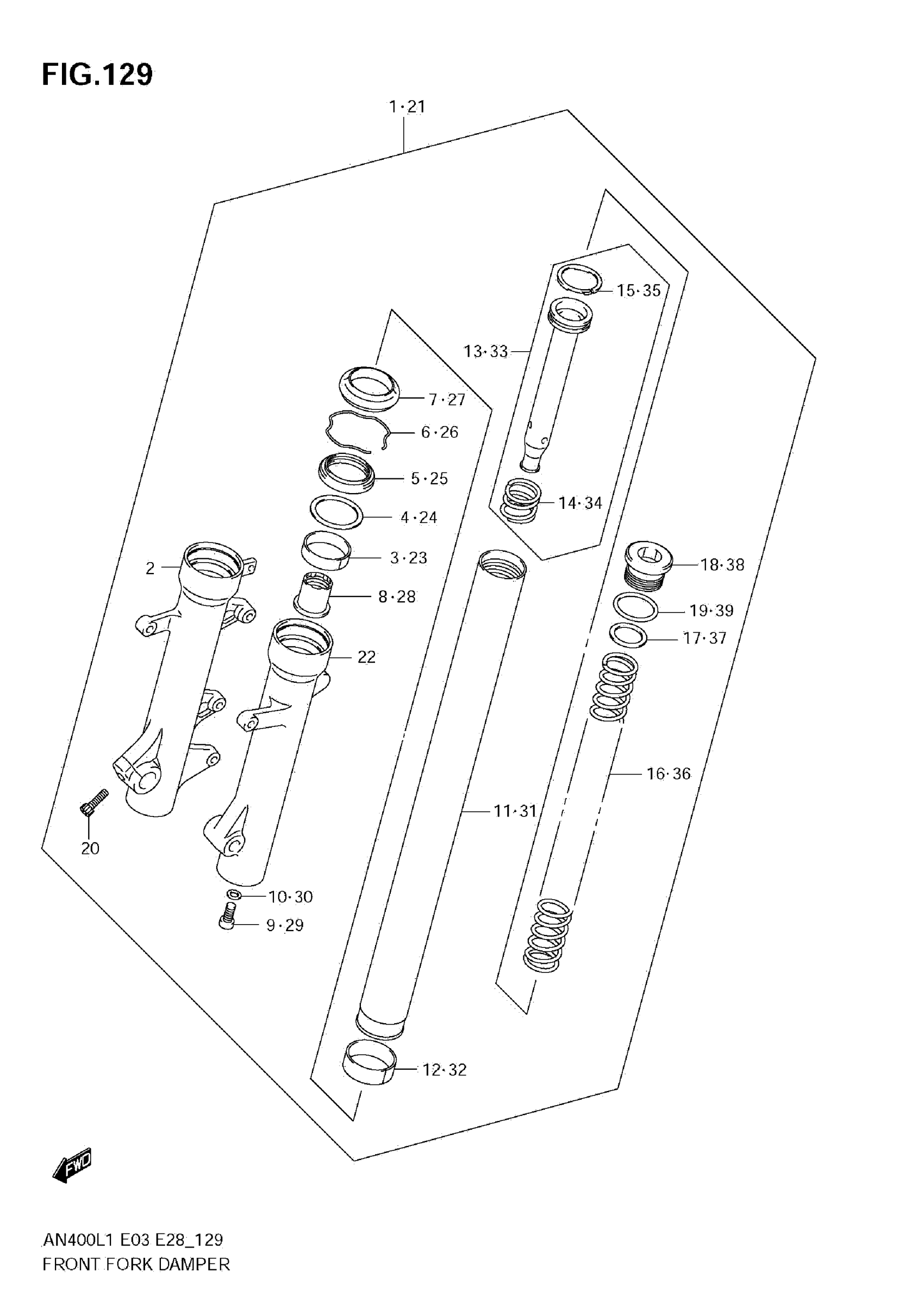

Suzuki AN400AL1 (2011) FRONT FORK DAMPER (AN400 L1 E3) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-05H00

Unavailable

2

TUBE, OUTER RH

51130-05H00

Unavailable

3

METAL, SLIDE

51167-26E10

$24.52

4

WASHER

51158-05A00

$5.83

5

SEAL, OIL

51153-10G50

$20.70

6

RING, OIL SEAL STOPPER

51156-49440

$5.05

7

SEAL, DUST

51173-14F00

$23.07

8

PIECE, OIL LOCK

51195-33D10

$26.20

9

BOLT, FORK CYLINDER

51147-05H00

$5.40

10

GASKET

51148-41310

$2.26

11

TUBE, INNER

51110-05H00

$349.58

12

PISTON

51121-33D10

$18.90

13

CYLINDER

51146-05H00

Unavailable

14

SPRING, REBOUND

51177-14F70

Unavailable

15

RING, PISTON

51196-14F51

Unavailable

16

SPRING, FRONT

51171-05H00

$55.35

17

WASHER, STEM HEAD (24.5X34X1.6)

51356-27C00

$6.75

18

CAP, FORK

51351-14F20

Unavailable

19

O RING (D:3.5,ID:31.7)

09280-32001

$2.06

20

BOLT

51328-05H00

$5.75

21

DAMPER ASSY, FRONT FORK LH

51104-05H00

Unavailable

22

TUBE, OUTER LH

51140-05H00

Unavailable

23

METAL, SLIDE

51167-26E10

$24.52

24

WASHER

51158-05A00

$5.83

25

SEAL, OIL

51153-10G50

$20.70

26

RING, OIL SEAL STOPPER

51156-49440

$5.05

27

SEAL, DUST

51173-14F00

$23.07

28

PIECE, OIL LOCK

51195-33D10

$26.20

29

BOLT, FORK CYLINDER

51147-05H00

$5.40

30

GASKET

51148-41310

$2.26

31

TUBE, INNER

51110-05H00

$349.58

32

PISTON

51121-33D10

$18.90

33

CYLINDER

51146-05H00

Unavailable

34

SPRING, REBOUND

51177-14F70

Unavailable

35

RING, PISTON

51196-14F51

Unavailable

36

SPRING, FRONT

51171-05H00

$55.35

37

WASHER, STEM HEAD (24.5X34X1.6)

51356-27C00

$6.75

38

CAP, FORK

51351-14F20

Unavailable

39

O RING (D:3.5,ID:31.7)

09280-32001

$2.06
