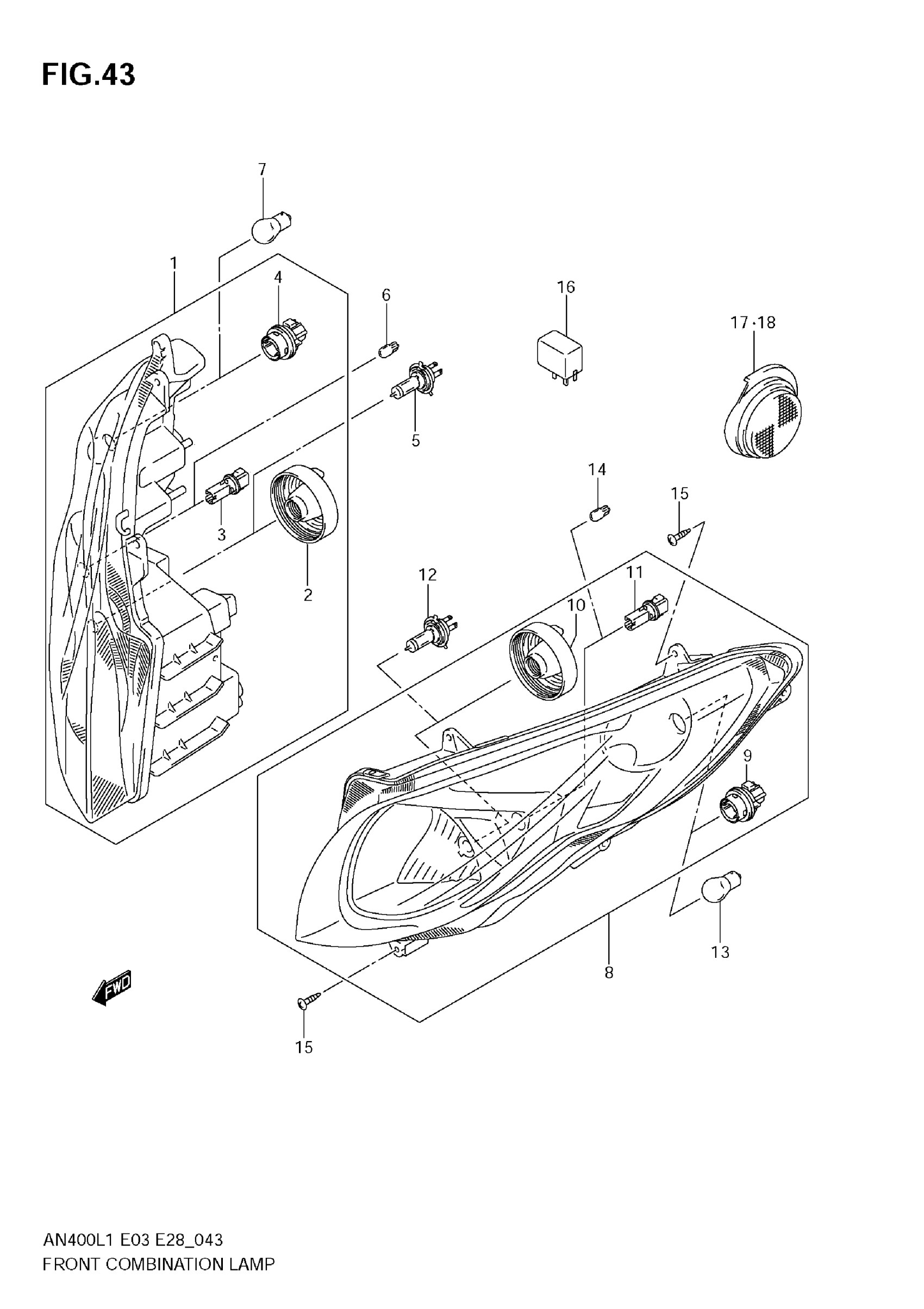

Suzuki AN400AL1 (2011) FRONT COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY, FRONT COMB, RH

35100-05H60-999

Unavailable

2

SOCKET, COVER

35179-64G00

$12.39

3

SOCKET, POSITION | FOR POSITION

35118-76F00

Unavailable

4

SOCKET | FOR TURN

36118-60G00

Unavailable

5

BULB (12V60/55W)

09471-12182

$77.08

6

.BULB (12V5W) | FOR POSITION

09471-12216

$5.36

7

BULB (12V27/8W) | FOR TURN

09471-12152

Unavailable

8

LAMP ASSY, FRONT COMB, LH

35300-05H60-999

Unavailable

9

SOCKET | FOR TURN

36118-60G00

Unavailable

10

SOCKET, COVER

35179-64G00

$12.39

11

SOCKET, POSITION | FOR POSITION

35118-76F00

Unavailable

12

BULB (12V60/55W)

09471-12182

$77.08

13

BULB (12V27/8W) | FOR TURN

09471-12152

Unavailable

14

.BULB (12V5W) | FOR POSITION

09471-12216

$5.36

15

SCREW

03541-0516A

$1.49

16

RELAY ASSY,TURN This part replaces 38610-05H00.

38610-05H01

$104.88

17

REFLEX REFLECTOR, FR RH

35951-05H00

$42.20

18

REFLEX REFLECTOR, FR LH

35952-05H00

$53.17
