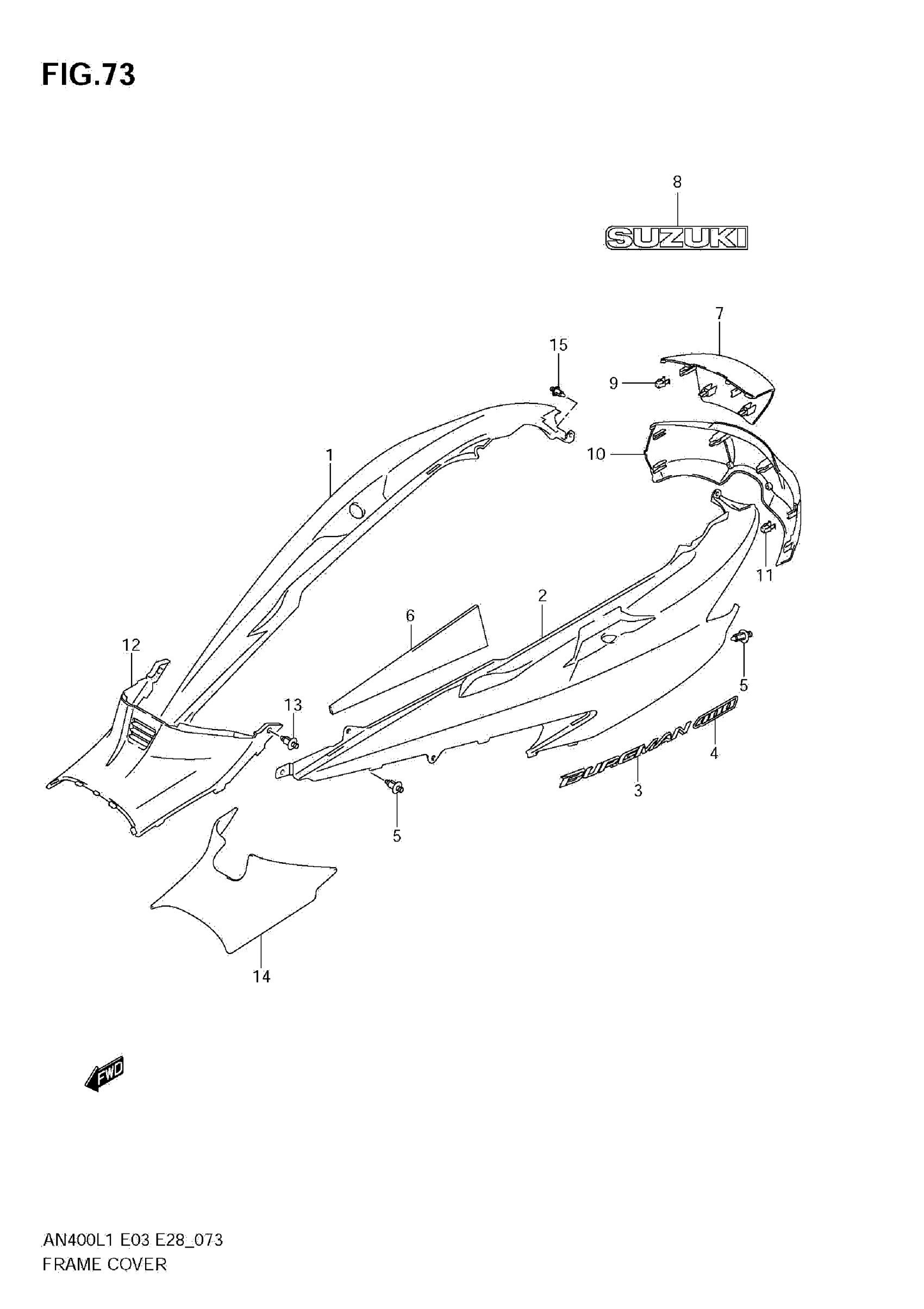

Suzuki AN400AL1 (2011) FRAME COVER (AN400A L1 E33) Diagram

#

Description
Price

1

COVER,FRAME,R This part replaces 47111-05H00-YPA.

47111-05H01-YPA

$266.48

1

COVER, FRAME RH (GRAY)

47111-05H00-YHG

Unavailable

2

COVER,FRAME,L This part replaces 47211-05H00-YPA.

47211-05H01-YPA

$266.48

2

COVER,FRAME,L(G This part replaces 47211-05H00-YHG.

47211-05H01-YHG

$230.62

3

EMBLEM,FRAME CO This part replaces 68131-05H10.

68131-12JA1

$19.98

4

EMBLEM, "400" (SILVER) | FOR YWG

68131-05H20-YES

$12.82

4

EMBLEM, "400" (GRAY) | FOR YPA

68131-05H20-YJH

Unavailable

5

CLIP (BLACK)

09409-08308-5ES

$1.97

6

CUSHION, FRAME COVER

47162-05H00

Unavailable

7

COVER, FRAME CENTER (WHITE)

47311-05H00-YPA

Unavailable

7

COVER, FRAME CENTER (GRAY)

47311-05H00-YHG

$157.32

8

EMBLEM,SUZUKI | FOR YWG This part replaces 68131-05H50-YES.

68131-05H51-YES

$8.13

8

EMBLEM,SUZUKI | FOR YPA This part replaces 68131-05H50-YJH.

68131-05H51-YJH

$8.13

9

CLIP

09409-08326

$2.48

10

COVER, FRAME LOWER (WHITE)

47321-05H00-YPA

$221.58

10

COVER, FRAME LOWER (GRAY)

47321-05H00-YHG

$221.58

11

CLIP

09409-08326

$2.48

12

COVER, FRAME FRONT (BLACK)

47351-05H01-291

Unavailable

13

CLIP (BLACK)

09409-08308-5ES

$1.97

14

CUSHION, FRONT

47161-05H00

Unavailable

15

CLIP (BLACK)

09409-08308-5ES

$1.97
