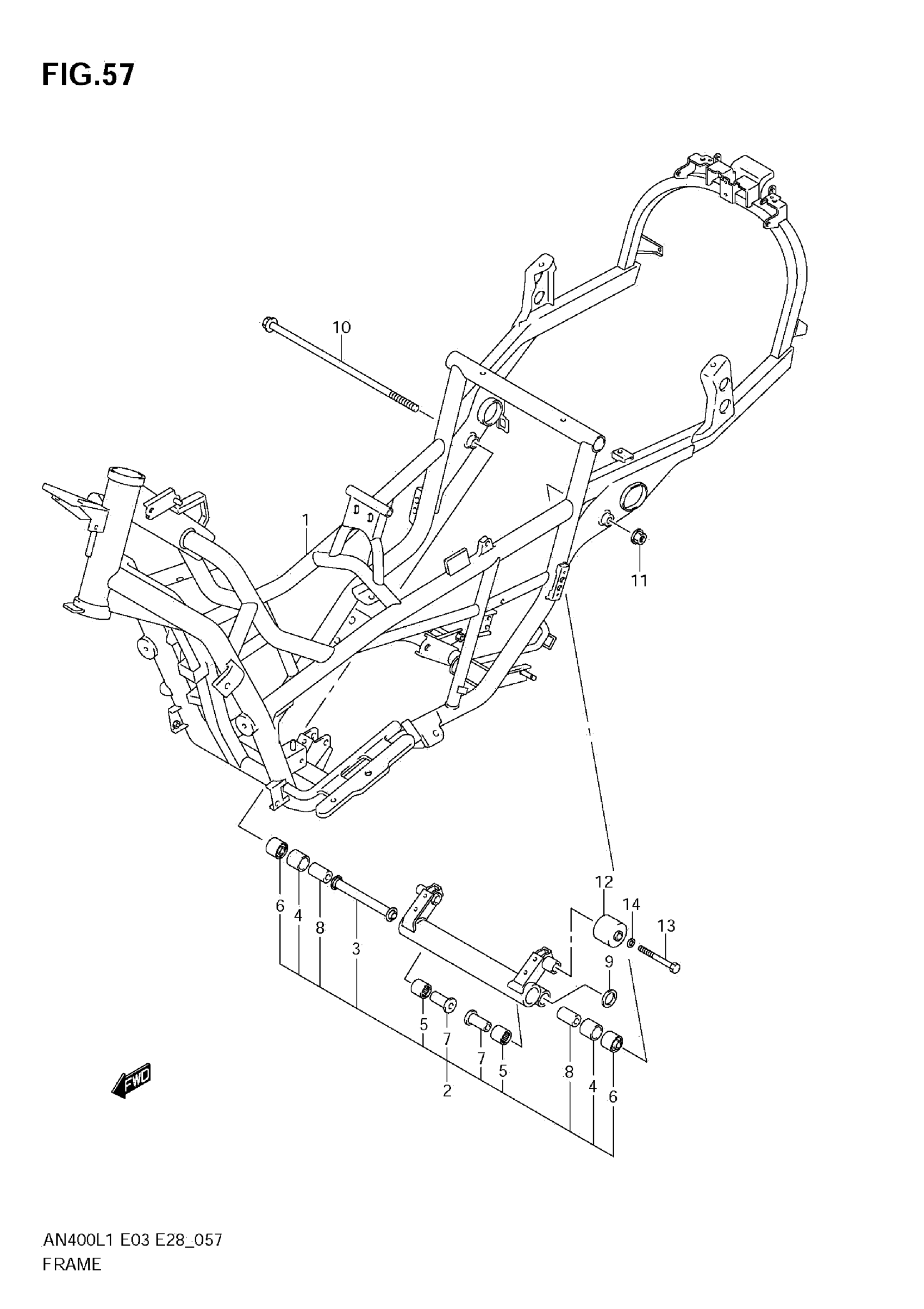

Suzuki AN400AL1 (2011) FRAME (AN400 L1 E3) Diagram

#

Description
Price

1

FRAME

41100-05H30

Unavailable

2

BRACKET SET, CRANKCASE

41180-05860

$542.47

3

SPACER, BRACKET

42610-05H00

Unavailable

4

BEARING (25X33X30)

09263-25063

Unavailable

5

.BEARING This part replaces 09263-20064.

09263-20120

$22.46

6

BUSH

09319-12065

$19.33

7

SPACER, ENGINE

41214-14F10

Unavailable

8

SPACER, BRACKET

41213-14F00

Unavailable

9

WASHER (12.5X35X3.2)

09160-12044

$4.03

10

BOLT (12X440)

09103-12086

Unavailable

11

NUT

08319-3112A

$3.76

12

CUSHION,SWING STOP

41185-14F00

Unavailable

13

BOLT (12X62)

09103-12065

Unavailable

14

WASHER

08322-0112B

$2.62
