Description

Price

1

RELAY ASSY,STARTING MOTOR This part replaces 31800-21E20.

31800-21E30

$67.32

2

COVER

31861-47E00

$16.15

3

FUSE (30A)

09481-30101

$2.26

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY This part replaces 32800-05H20.

32800-47H50

$288.77

6

SCREW

02162-0620B

$2.28

7

CONTROL UNIT, FI

32920-05HF0

Unavailable

8

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

9

COIL ASSY, IGNITION

33410-05H00

$163.57

10

BOLT

07130-0525A

$2.28

11

CAP ASSY, SPARK PLUG

33510-48B10

$31.77

12

SEAL, SPARK PLUG

33541-23E10

$6.54

13

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

14

COVER,SPARK PLUG CAP

33543-33E01

$4.54

15

CLAMP (L:45)

09404-06429

$1.83

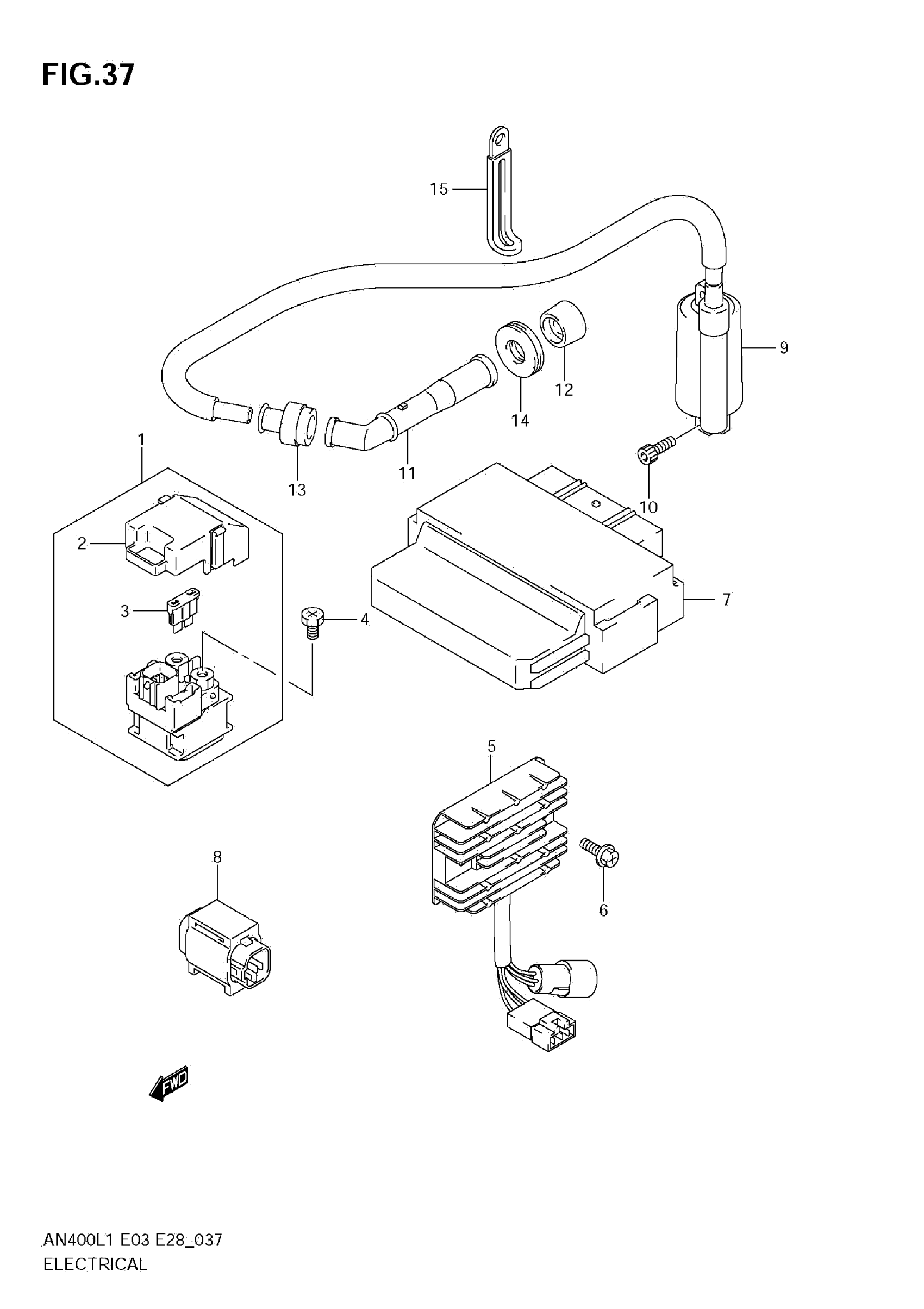

Suzuki AN400AL1 (2011) ELECTRICAL Diagram
