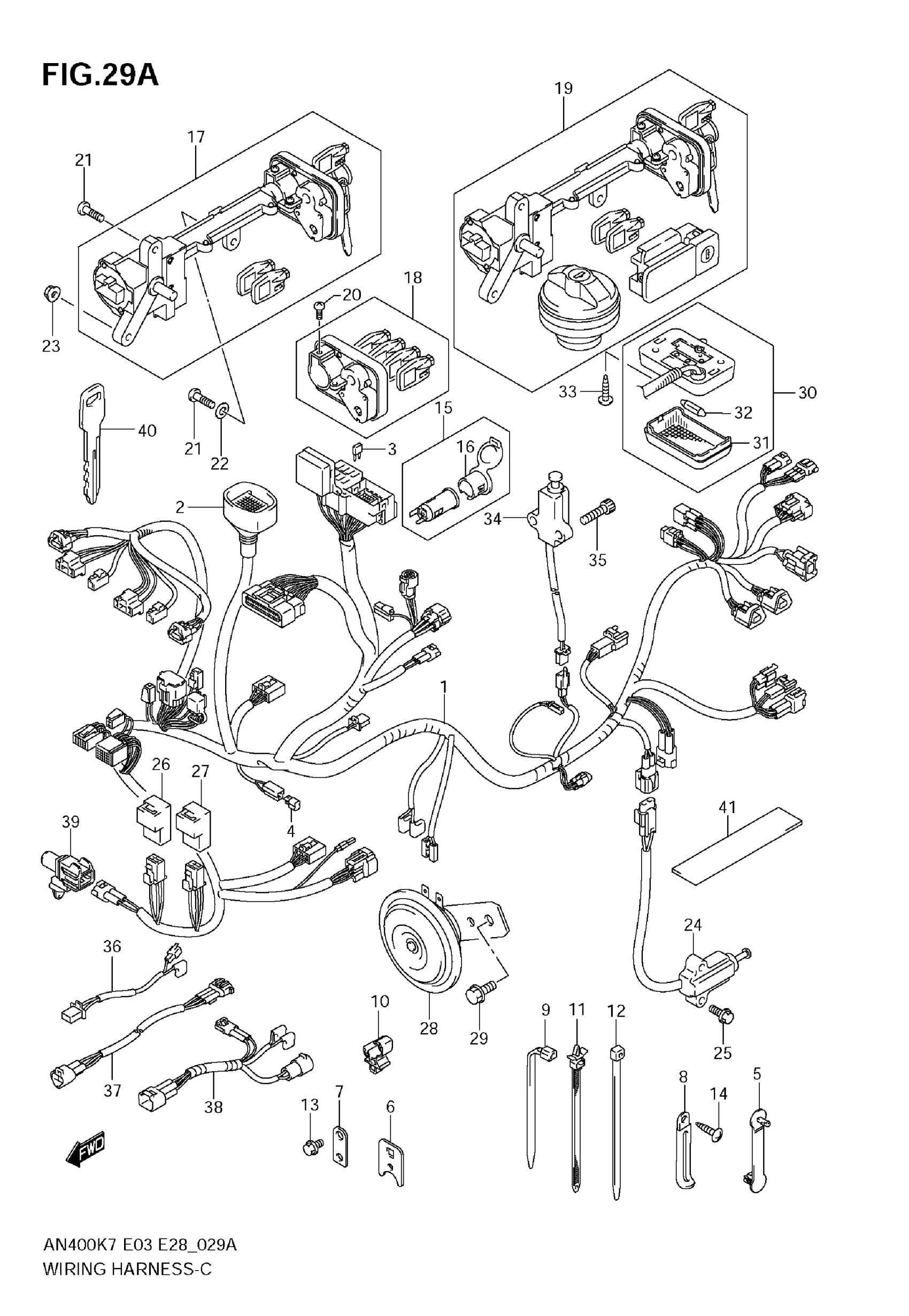

Suzuki AN400AK9 (2009) WIRING HARNESS (AN400K8/K9) Diagram

#

Description
Price

1

HARNESS, WIRING | MODEL K8

36610-05H81

Unavailable

1

HARNESS, WIRING | MODEL K9

36610-05HG0

Unavailable

2

COVER

36618-21E00

Unavailable

3

FUSE (10A)

09481-10501

$2.06

3

FUSE (15A)

09481-15501

$2.02

4

DIODE

32800-16A00

$23.07

5

CLAMP

36651-48E00

$3.25

6

BRACKET, LEAD WIRE

36672-05H00

Unavailable

7

BRACKET, LEAD WIRE

36672-05H10

Unavailable

8

CLAMP (L:45)

09404-06429

$1.83

9

CLAMP (L:125)

09407-14403

$2.26

9

CLAMP (L:190)

09407-19401

$3.05

9

CLAMP (L:235)

09407-25401

$4.66

10

CLAMP (ID:80)

09403-08332

Unavailable

11

CLAMP (L:90)

09407-11402

$1.80

12

CLAMP (L:145)

09407-14407

$3.57

13

BOLT

01547-0612A

$2.03

14

SCREW

03541-0616A

$2.02

15

TERMINAL, POWER SOURCE

39410-76F00-P4Z

Unavailable

16

COVER

39441-76F00-P4Z

$14.77

17

LOCK ASSY,STEER This part replaces 37120-10852.

37120-10855

$339.63

18

SHUTTER, STEERING LOCK

37155-10G01

Unavailable

19

LOCK SET This part replaces 37103-10891.

37103-10894

Unavailable

20

TORX BOLT (5X10)

37159-14G00

Unavailable

21

SCREW (6X20)

09139-06048

$2.14

22

WASHER (6.5X18X1.6)

09160-06084

$1.78

23

NUT

08316-1006B

$2.50

24

SWITCH ASSY,SID This part replaces 37840-11X50.

37840-11X51

$82.02

25

BOLT

01547-0620A

$2.03

26

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

27

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

$38.58

28

HORN ASSY

38500-05H00

$87.70

29

BOLT (8X12)

01550-0812A

$2.32

30

LAMP ASSY, TRUNK BOX

36210-14G00

Unavailable

31

LENS, ROOM LAMP

36212-79001

Unavailable

32

BULB (12V5W)

09471-12073

$3.03

33

SCREW

03541-0412B

$1.49

34

SWITCH ASSY, TRUNK BOX LAMP

37980-14F00

Unavailable

35

BOLT

07130-0516B

$2.45

36

WIRE, POWER SOURCE LEAD

36852-05H00

Unavailable

37

WIRE, SPEED SENSOR

36853-05H00

Unavailable

38

WIRE, IGNITION COIL LEAD

36854-05H00

Unavailable

39

SENSOR, AMBIENT AIR

95643-58J00

$50.50

40

KEY, BLANK

37146-14G00

$38.13

41

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64
