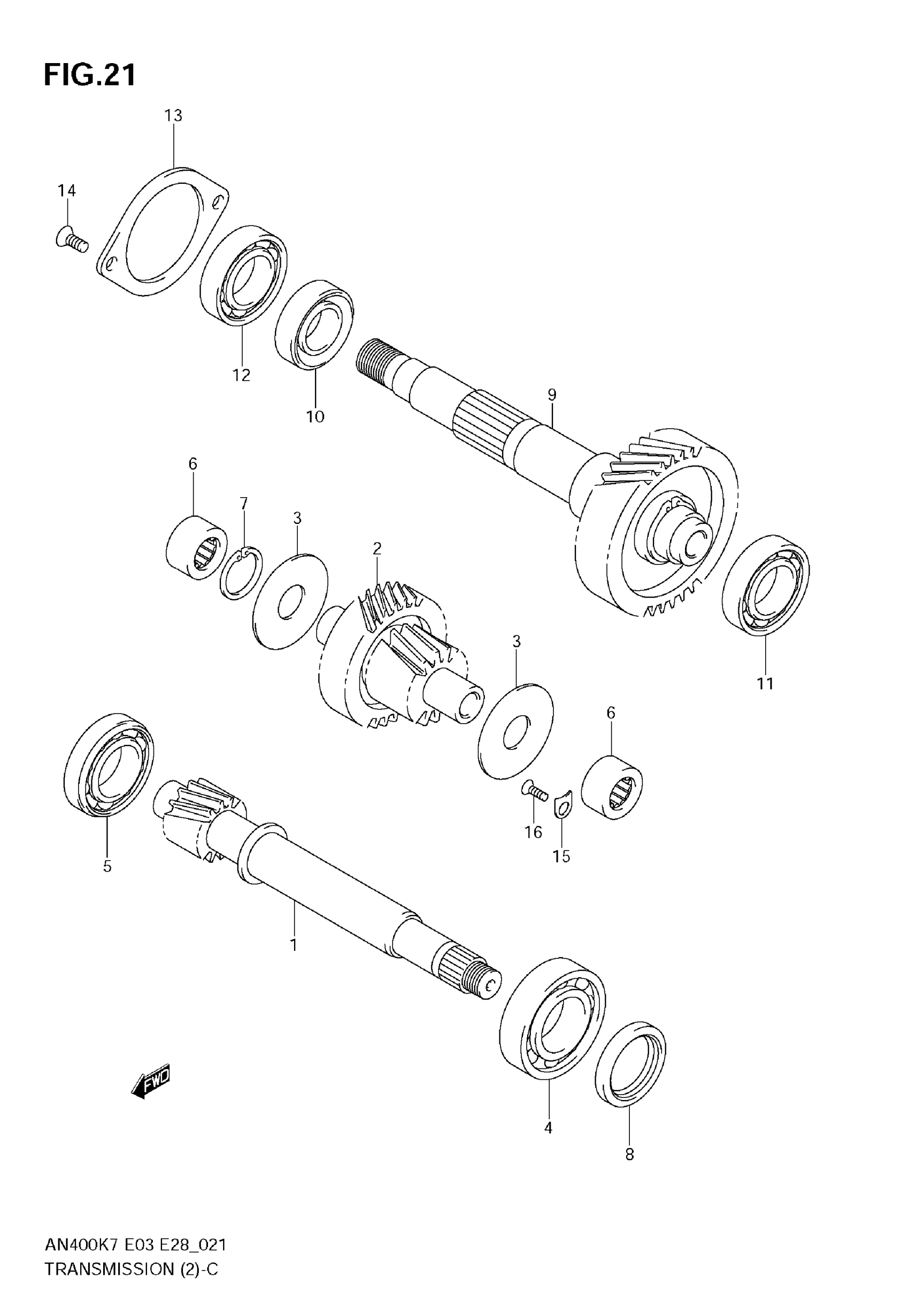

Suzuki AN400AK9 (2009) TRANSMISSION (2) Diagram

#

Description
Price

1

SHAFT, DRIVE (NT:14)

24131-05H00

$169.35

2

SHAFT, IDLE (NT:15)

24150-05H00

$209.20

3

SHIM, IDLE SHAFT | 20X50X2

09160-20077

$12.40

4

BEARING, DRIVE SHAFT, LH

08113-52050

$80.88

5

BEARING, DRIVE SHAFT, RH

09262-20073

$23.28

6

BEARING (20X34X18)

09263-20062

$46.98

7

CIRCLIP, IDLE SHAFT

08331-41349

$2.73

8

SEAL, DRIVE SHAFT | 25X37X6

09283-25097

$11.92

9

SHAFT, REAR AXLE

24140-05H00

Unavailable

10

OIL SEAL, AXLE SHAFT | 38X52X7

09283-38019

$17.90

11

BEARING, AXLE SHAFT, LH

09262-25084

$39.10

12

BEARING This part replaces 08130-63067.

08130-6306B

$47.60

13

RETAINER, AXLE SHAFT

24751-14F10

$16.77

14

SCREW

02122-0616A

$1.49

15

RETAINER, IDLE SHAFT, LH

24742-44B00

$4.10

16

SCREW

02122-0616A

$1.49
