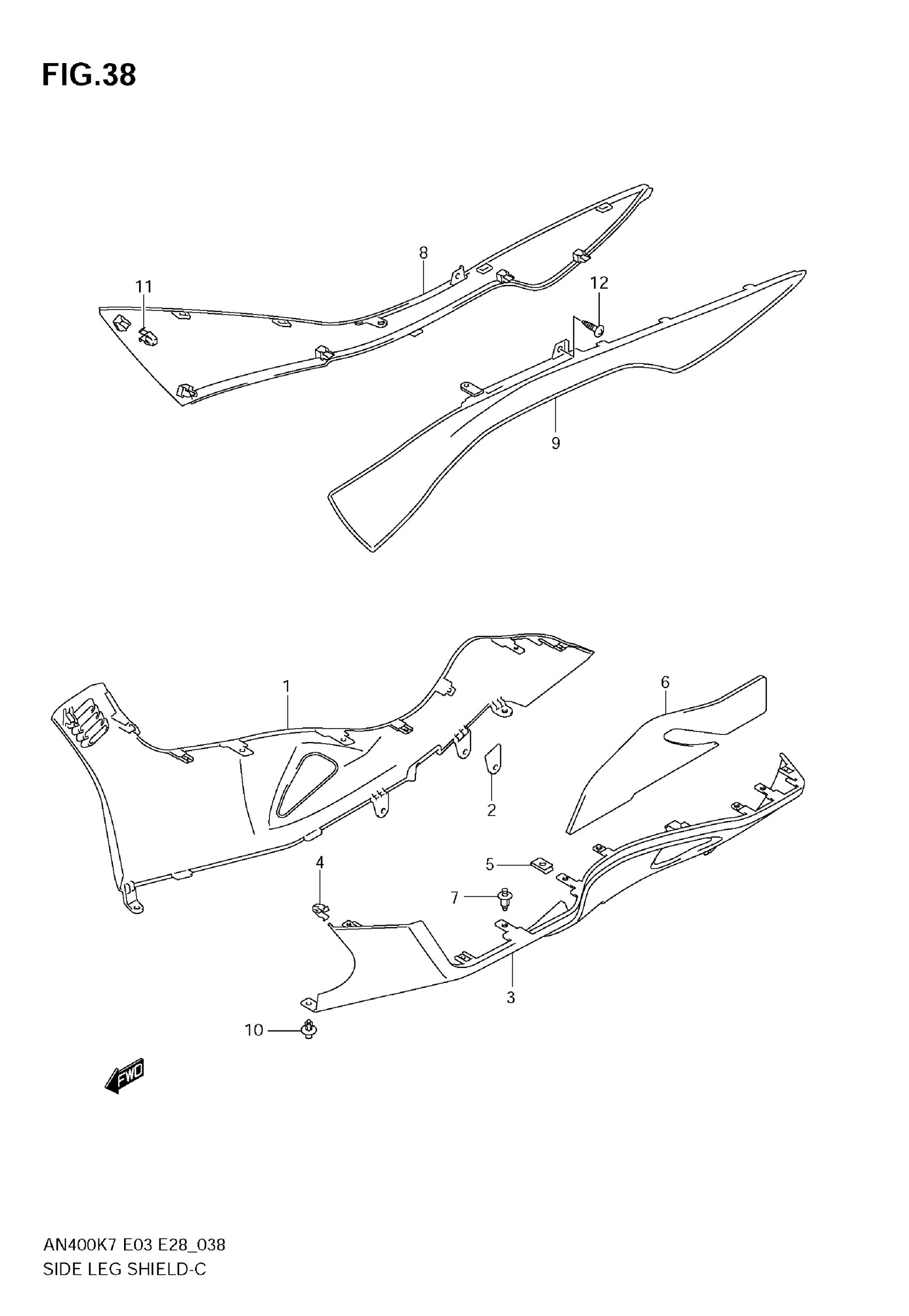

Suzuki AN400AK9 (2009) SIDE LEG SHIELD (MODEL K7/K8) Diagram

#

Description
Price

1

SHIELD, LEG SIDE RH (RED) | MODEL K8

48171-05H00-YHL

$549.07

1

SHIELD, LEG SIDE RH (BLACK) | MODEL K8

48171-05H00-YAY

$431.52

1

SHIELD, LEG SIDE RH (BLUE) | MODEL K7

48171-05H00-YKZ

Unavailable

1

SHIELD, LEG SIDE RH (GRAY) | MODEL K7

48171-05H00-YHG

$477.80

1

SHIELD, LEG SIDE RH (BLUE) | E28

48171-05H00-YLE

Unavailable

2

SHIELD, HEAT RH

48172-05H00

Unavailable

3

SHIELD, LEG SIDE LH (RED) | MODEL K8

48181-05H01-YHL

$546.20

3

SHIELD, LEG SIDE LH (BLACK) | MODEL K8 This part replaces 48181-05H00-YAY.

48181-05H01-YAY

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL K7 This part replaces 48181-05H00-YKZ.

48181-05H01-YKZ

Unavailable

3

SHIELD, LEG SIDE LH (GRAY) | MODEL K7 This part replaces 48181-05H00-YHG.

48181-05H01-YHG

$477.80

3

SHIELD, LEG SIDE LH (BLUE) | E28

48181-05H00-YLE

Unavailable

4

CLIP

09409-08326

$2.48

5

NUT

09148-05038

$1.97

6

CUSHION, SHIELD LEG SIDE LH This part replaces 48182-05H00.

48182-05H01

Unavailable

7

CLIP (BLACK)

09409-08308-5ES

$1.97

8

COVER, LEG CENTER RH (BLACK)

48141-05H00-291

$133.65

9

COVER, LEG CENTER LH (BLACK)

48142-05H00-291

$133.65

10

CLIP, CENTER (BLACK)

09409-08308-5ES

$1.97

11

CLIP

09409-08326

$2.48

12

SCREW

03541-0516A

$1.49
