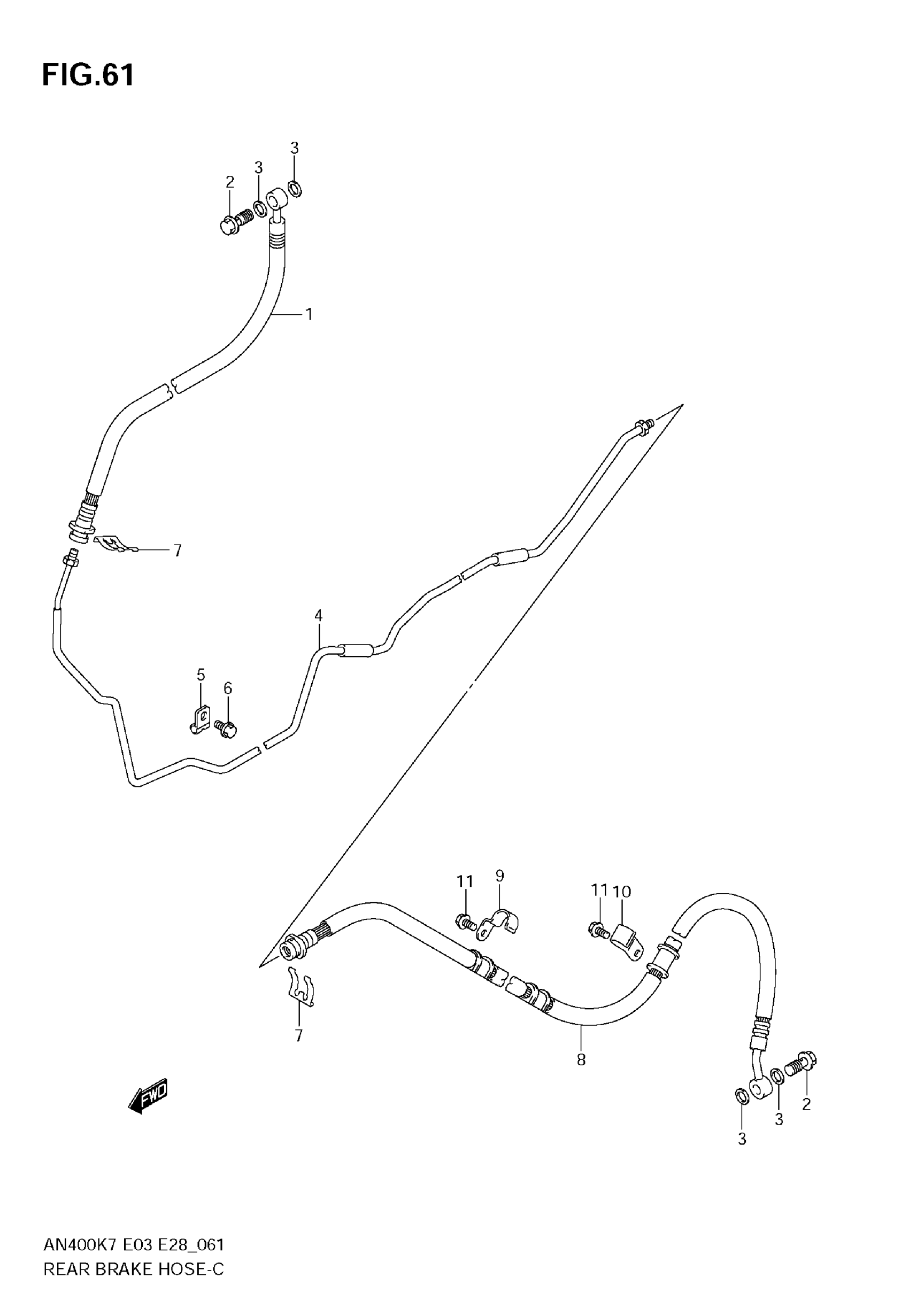

Suzuki AN400AK9 (2009) REAR BRAKE HOSE (AN400K7/K8/K9) Diagram

#

Description
Price

1

HOSE, REAR BRAKE NO.1

69240-05H00

Unavailable

2

BOLT, BRAKE FLUID

09360-10062

$6.43

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

PIPE, REAR BRAKE

69250-05H00

Unavailable

5

CLAMP, REAR BRAKE PIPE

09403-07401

Unavailable

6

BOLT, RR BRAKE PIPE CLAMP

01547-0616A

$2.03

7

E-RING, REAR BRAKE HOSE

09383-13003

$2.30

8

HOSE This part replaces 69480-05H00.

69480-05H01

$85.38

9

CLAMP, REAR BRAKE HOSE NO.1

69261-05H00

Unavailable

10

CLAMP, REAR BRAKE HOSE NO.2

69266-05H00

Unavailable

11

BOLT, REAR BRAKE HOSE CLAMP

01547-0612A

$2.03
