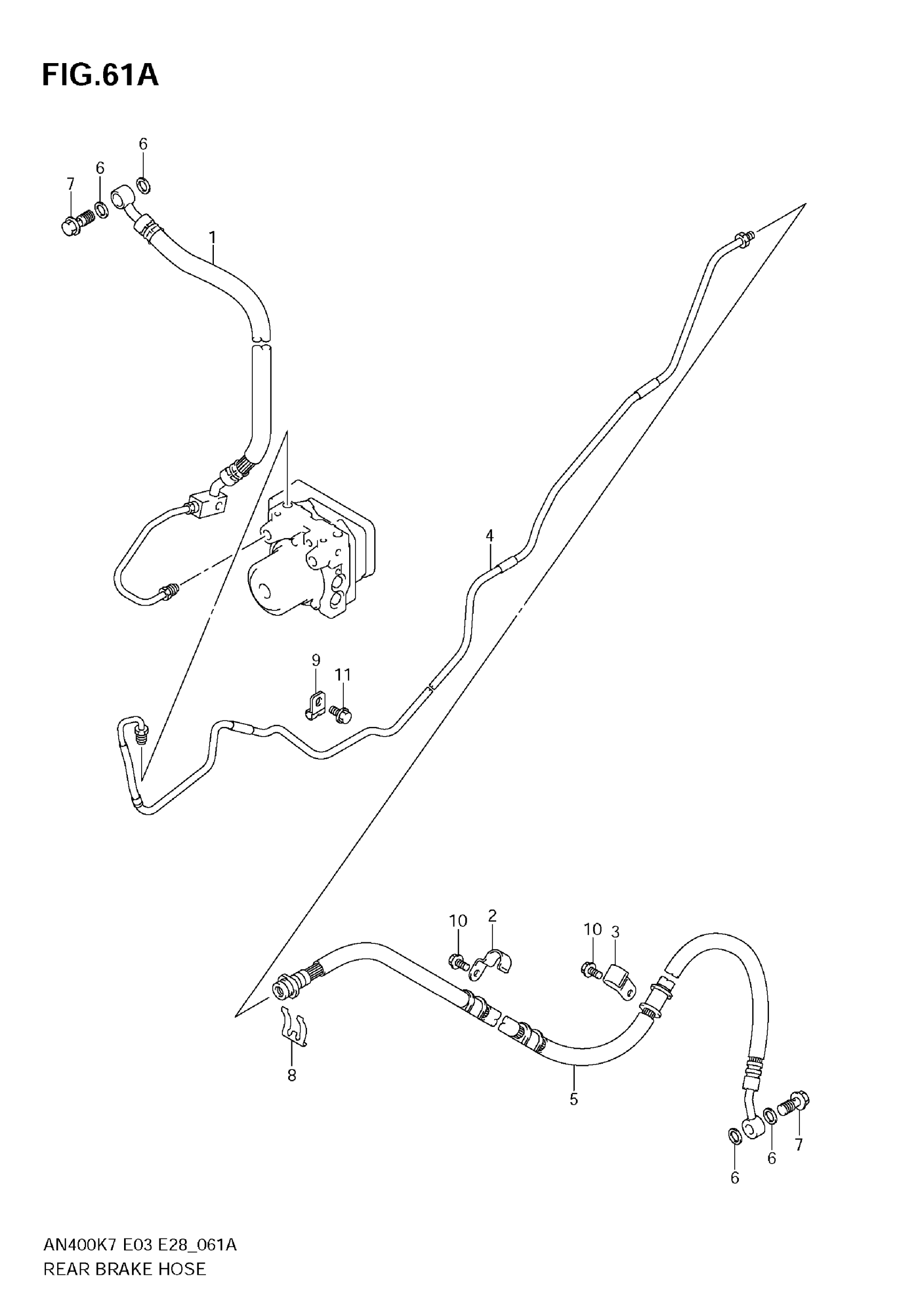

Suzuki AN400AK9 (2009) REAR BRAKE HOSE(AN400AK9) Diagram

#

Description

Price

1

HOSE ASSY, RR BRAKE NO.1

69200-05H00

$113.15

2

CLAMP, RR BRAKE HOSE NO.1

69261-05H00

Unavailable

3

CLAMP, RR BRAKE HOSE NO.2

69266-05H00

Unavailable

4

PIPE, REAR BRAKE

69450-05H00

$83.42

5

HOSE This part replaces 69480-05H00.

69480-05H01

$95.90

6

WASHER (10X15X1.5)

09161-10009

$1.83

7

BOLT, BRAKE FLUID

09360-10062

$5.81

8

E RING This part replaces 09383-13001.

09383-13003

$2.44

9

CLAMP, RR BRAKE PIPE

09403-07401

Unavailable

10

BOLT, RR BRAKE HOSE CLAMP

01547-0612A

$2.01

11

BOLT, RR BRAKE PIPE CLAMP

01547-0616A

$2.01
