2009 Suzuki AN400AK9 OIL Pump Diagram

← All diagrams

Find the part on the OIL Pump diagram for your 2009 Suzuki AN400AK9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

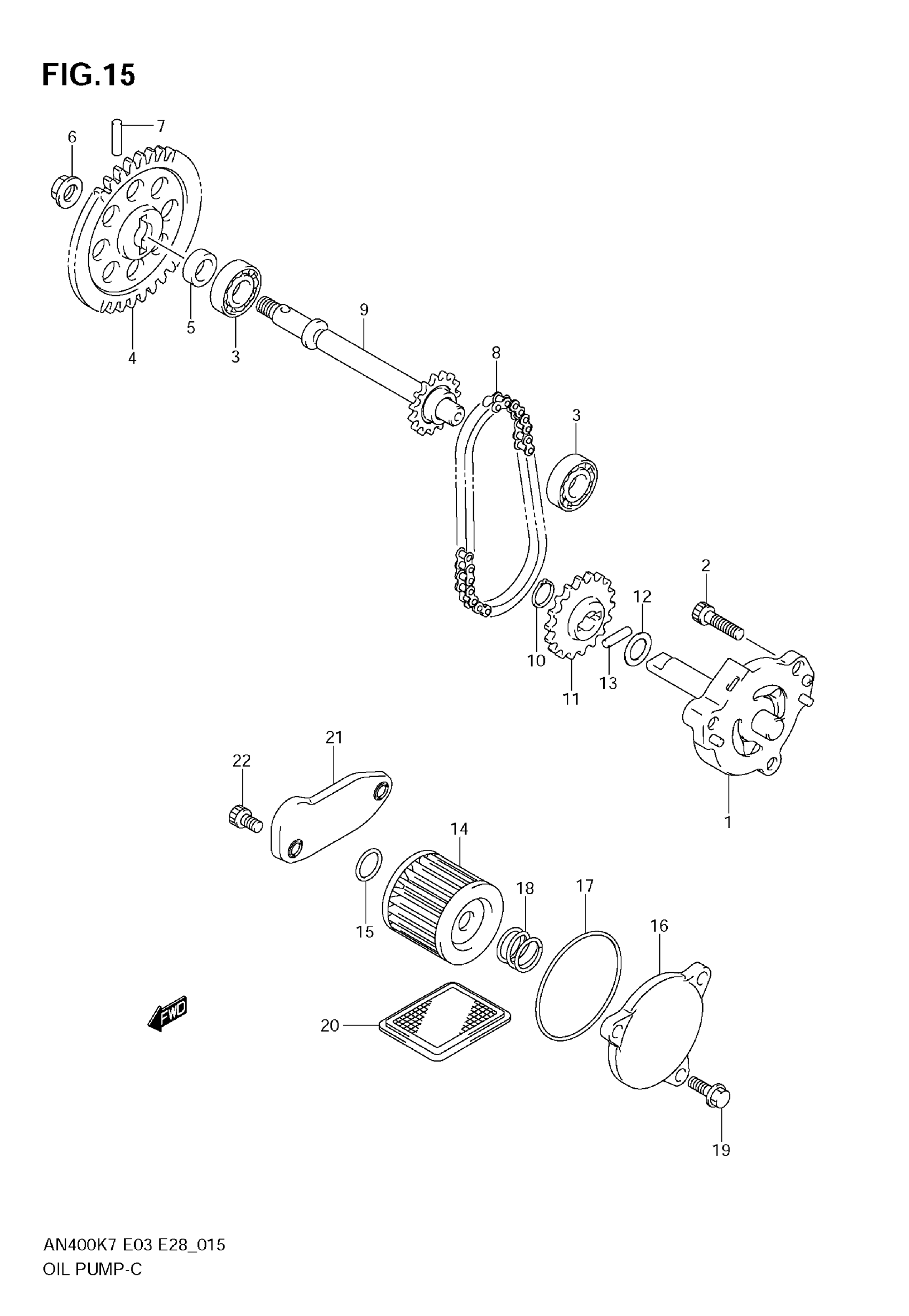

2009 Suzuki AN400AK9 OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP ASSY, ENG OIL This part replaces 16400-05H00-E00.

16400-05H00

1
Out of stock

2

BOLT

07130-0620A

2
Out of stock

3

BEARING (10X26X8)

09262-10015

2
Out of stock

4

GEAR, OIL PUMP IDLE

16321-05H00

1
Out of stock

5

SPACER

09180-10125

1
Out of stock

6

NUT

08316-1008A

1
Out of stock

7

PIN

09261-04009

1
Out of stock

8

CHAIN ASSY,OIL PUMP DRIVE

16310-05H00

1
Out of stock

9

SPROCKET, OIL PUMP DRIVE

16322-05H00

1
Out of stock

10

CIRCLIP This part replaces 08331-31106.

08331-31109

1
Out of stock

11

SPROCKET, OIL PUMP DRIVEN

16331-05H00

1
Out of stock

12

WASHER

09181-10158

1
Out of stock

13

PIN

09261-04009

1
Out of stock

14

FILTER ASSY, ENGINE OIL

16510-05240

1
Out of stock

15

O RING (D:1.9,ID:13)

09280-13004

1
Out of stock

16

CAP,OIL FILTER

16512-49E00

1
Out of stock

17

O RING (D:2.4,ID:52.6)

09280-54001

1
Out of stock

18

SPRING

09440-18002

1
Out of stock

19

BOLT

01547-0616A

3
Out of stock

20

STRAINER,ENGINE OIL This part replaces 16520-09402.

16520-09403

1
Out of stock

21

CAP,OIL STRAINER

16523-05H00

1
Out of stock

22

BOLT

07130-0612A

2
Out of stock
