Description

Price

1

CRANKCASE SET RH This part replaces 11310-05810.

11310-05812

Unavailable

2

.BUSH (10X23X30)

09319-10043

$18.85

3

CRANKCASE SET, LH | AN400K7/K8/K9 This part replaces 11320-05812.

11320-05813

$890.70

3

CRANKCASE SET, LH | AN400AK9

11320-05830

Unavailable

4

.BUSH (10X23X30)

09319-10043

$18.85

5

PIN,CRANKCASE

11319-33E50

$5.01

6

BOLT

01547-0640A

$2.31

7

BOLT

01547-0665A

$2.34

8

BOLT

01550-0875A

$3.25

9

BOLT

01550-0895A

$5.00

10

O RING

11315-19F00

$21.07

11

O RING (D:1.9,ID:9.8)

09280-10016

$3.04

12

SEPARATOR,OIL

11313-05H00

Unavailable

13

BOLT

07130-0612A

$2.50

14

SEPARATOR,OIL

11323-05H00

Unavailable

15

BOLT

07130-0630A

$4.03

16

BOLT

07130-0645A

Unavailable

17

JET,PISTON COOLING

11390-14F00

Unavailable

18

O RING (D:1.2,ID:4.2)

09280-04004

$1.76

19

SCREW

07130-0612A

$2.50

20

PLUG, OIL GALLERY

01550-1016A

$2.84

21

GASKET (ID:9.9,OD:14)

09168-10002

$1.96

22

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.80

23

GASKET (ID:13.8,OD:18.8)

09168-14002

$2.83

24

PLUG, WATER GALLERY (22X11)

09248-22004

$17.87

25

GASKET (ID:22,OD:27)

09168-22002

$6.27

26

PLUG, OIL DRAIN (14X12)

09247-14036

$5.58

27

GASKET (ID:13.8,OD:18.8)

09168-14002

$2.83

28

HOSE, T/M BREATHER

11329-05H00

Unavailable

29

CLIP (ID:11)

09401-11403

$2.80

30

MAGNET, GEAR BOX

11393-20E00

Unavailable

31

BOLT

01570-0612A

$2.87

32

COVER,GEAR BOX

11431-05H00

Unavailable

33

O RING

09280-00035

$21.40

34

BOLT (8X35)

01550-0835A

$2.80

35

PIN

04211-09149

$1.64

36

BOLT (8X12)

01550-0812A

$2.31

37

GASKET (8.2X14X1)

09168-08016

$1.64

38

PLUG, T/M OIL LEVEL

01550-1016A

$2.84

39

GASKET (ID:9.9,OD:14)

09168-10002

$1.96

40

PLUG, T/M OIL FILLER (16X8)

09248-16012

$4.19

41

GASKET (ID:16,OD:22)

09168-16002

$1.89

42

BOLT (12X310)

09103-12054

$19.97

43

NUT

08319-3112A

$3.38

44

SEPARETOR, OIL BREATHER | MODEL K9

11324-05H00

$17.30

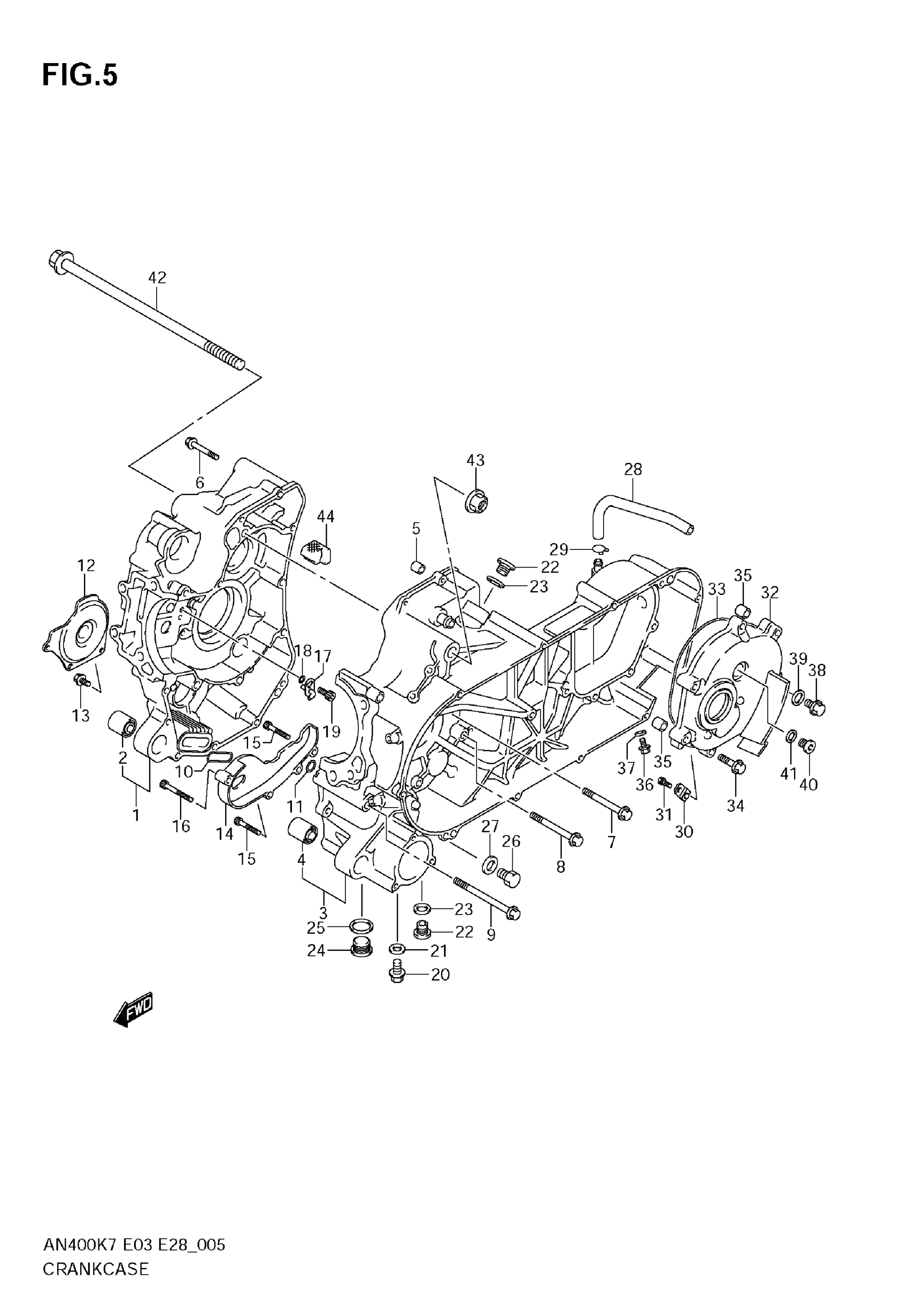

Suzuki AN400AK9 (2009) CRANKCASE Diagram

CRANKCASE SET RH This part replaces 11310-05810.

.BUSH (10X23X30)

CRANKCASE SET, LH | AN400K7/K8/K9 This part replaces 11320-05812.

CRANKCASE SET, LH | AN400AK9

.BUSH (10X23X30)

PIN,CRANKCASE

BOLT

BOLT

BOLT

BOLT

O RING

O RING (D:1.9,ID:9.8)

SEPARATOR,OIL

BOLT

SEPARATOR,OIL

BOLT

BOLT

JET,PISTON COOLING

O RING (D:1.2,ID:4.2)

SCREW

PLUG, OIL GALLERY

GASKET (ID:9.9,OD:14)

PLUG, SHAFT This part replaces 09248-14005.

GASKET (ID:13.8,OD:18.8)

PLUG, WATER GALLERY (22X11)

GASKET (ID:22,OD:27)

PLUG, OIL DRAIN (14X12)

GASKET (ID:13.8,OD:18.8)

HOSE, T/M BREATHER

CLIP (ID:11)

MAGNET, GEAR BOX

BOLT

COVER,GEAR BOX

O RING

BOLT (8X35)

PIN

BOLT (8X12)

GASKET (8.2X14X1)

PLUG, T/M OIL LEVEL

GASKET (ID:9.9,OD:14)

PLUG, T/M OIL FILLER (16X8)

GASKET (ID:16,OD:22)

BOLT (12X310)

NUT

SEPARETOR, OIL BREATHER | MODEL K9
