Description

Price

1

PANEL, METER FRONT (BLACK)

94421-05H00-291

Unavailable

2

PANEL, METER UPPER (BLACK)

94423-05H01-291

$150.28

3

PANEL, METER REAR (BLACK)

94422-05H00-291

$165.07

4

PANEL, FRONT (BLACK) | MODEL K7 This part replaces 94671-05H00-291.

94671-05H01-291

$68.55

4

PANEL, FRONT (BLACK) | MODEL K8/K9

94671-05H01-291

$68.55

5

TAPE, METER PANEL

94443-06G00

$3.25

6

CLIP (BLACK)

09409-06322-5PK

$3.10

7

CLIP

09409-08326

$2.48

8

SCREW

03541-0516A

$1.49

9

WINDSCREEN

94611-05H00

$1,035.05

10

SCREW, REAR

02142-0520B

$1.78

11

WASHER

08322-0105B

$2.26

12

NUT, REAR

09159-05045

$7.37

13

CUSHION, FRONT

94424-05H00

$5.88

14

EMBLEM

68281-35F00

$16.45

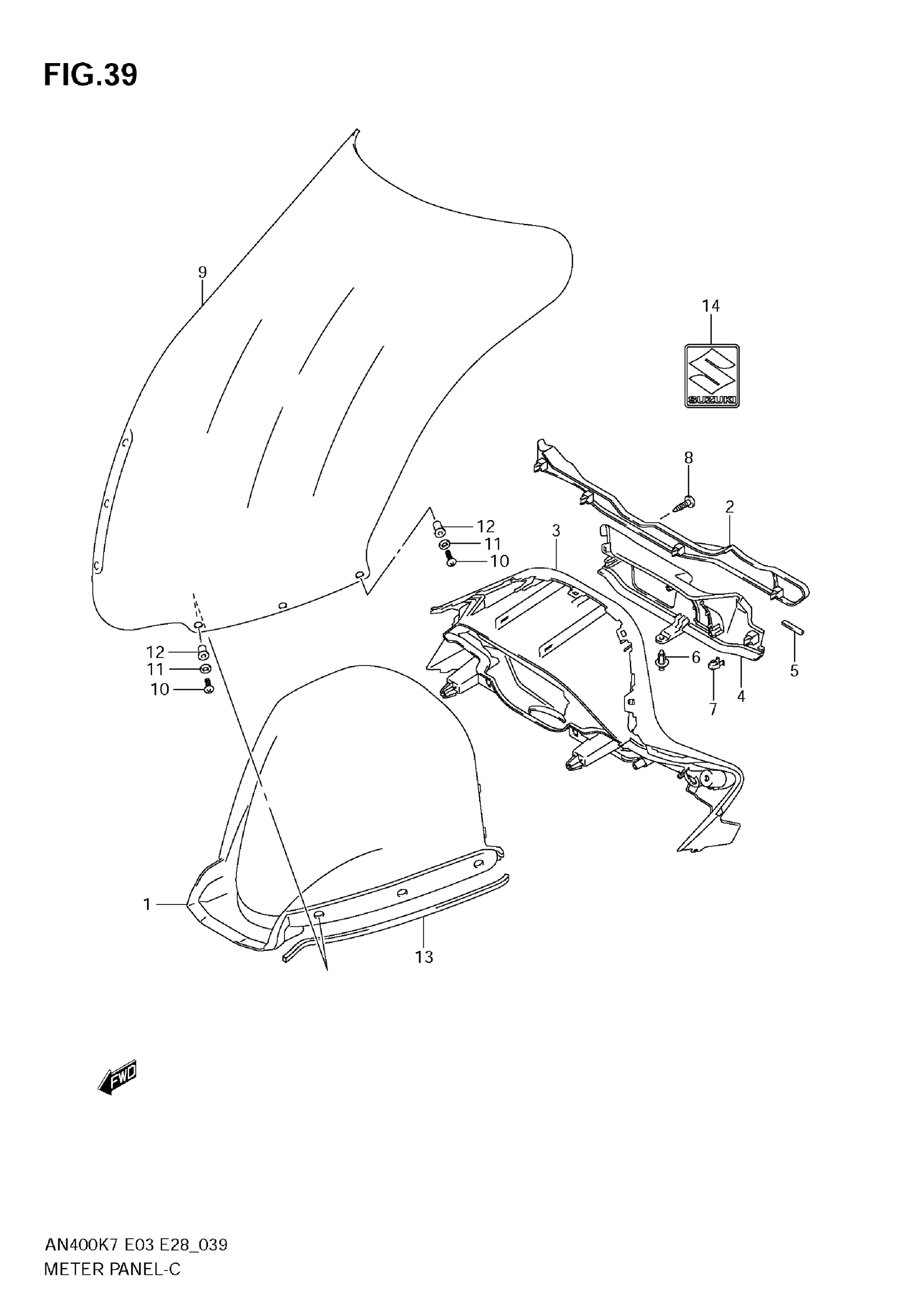

Suzuki AN400AK9 (2009) METER PANEL Diagram
