2009 Suzuki AN400AK9 Gasket SET Diagram

← All diagrams

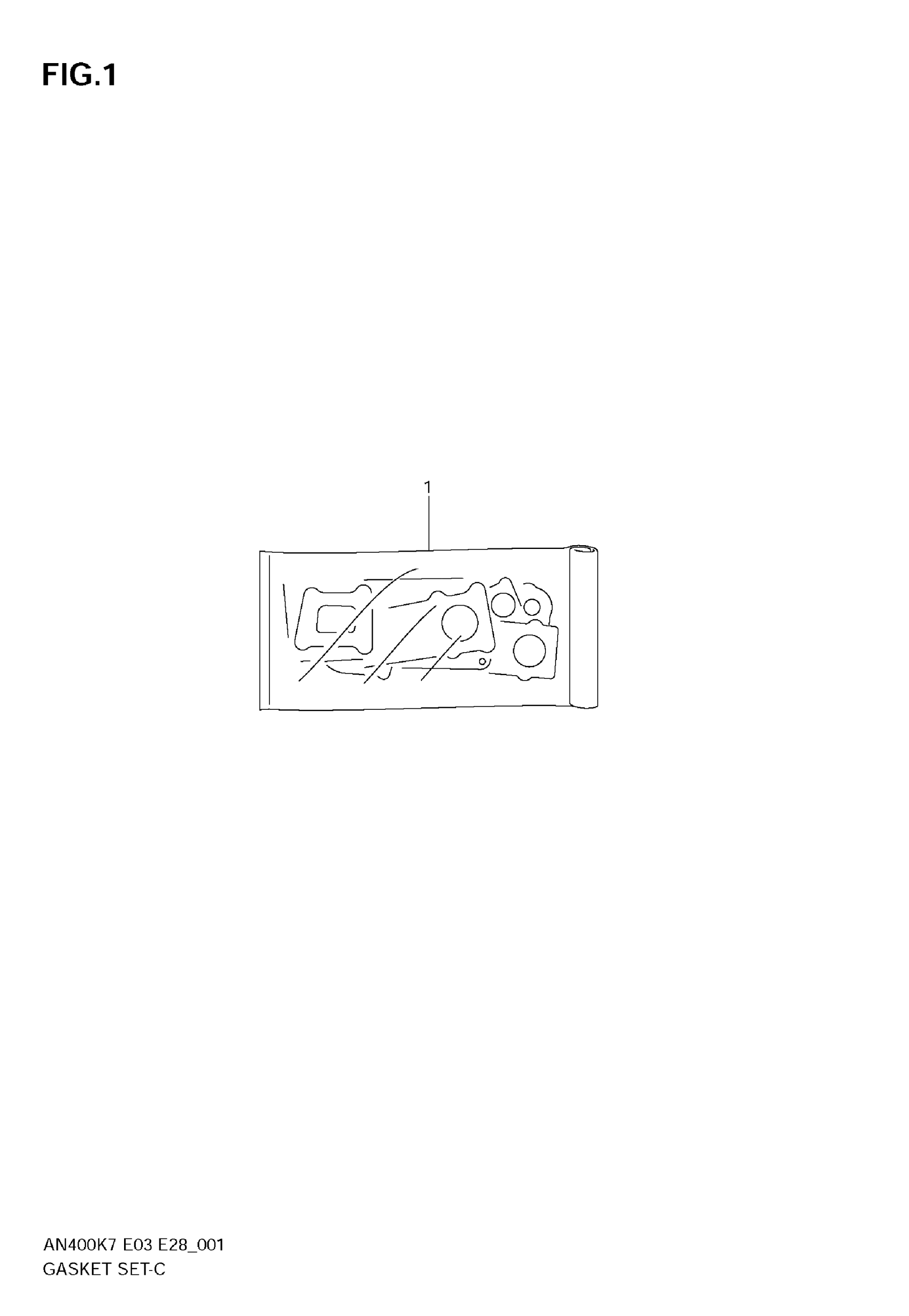

Find the part on the Gasket SET diagram for your 2009 Suzuki AN400AK9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki AN400AK9 Gasket SET Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET SET | OPT MODEL K7

11402-05850

1
Out of stock

1

GASKET SET | OPT MODEL K8/K9 This part replaces 11402-05870.

11402-05871

1
Out of stock

2

.GASKET,CYLINDER HEAD | NOT SHOWN This part replaces 11141-05H00.

11141-19K00

1
Out of stock

3

GASKET, CYL HEAD COVER NO.1 | NOT SHOWN

11173-05H00

1
Out of stock

4

GASKET, CYL HEAD COVER NO.2 | NOT SHOWN

11178-05H00

1
Out of stock

5

GASKET, CYLINDER | NOT SHOWN

11241-05H10

1
Out of stock

6

GASKET, CLUTCH COVER INNER | NOT SHOWN

11482-05H00

1
Out of stock

7

GASKET, MAGNETO COVER | NOT SHOWN

11483-05H00

1
Out of stock

8

GASKET, TENSIONER ADJUSTER | NOT SHOWN

12837-27G00

1
Out of stock

9

.GASKET,EXHAUST | MODEL K7 NOT SHOWN

14181-18C00

1
Out of stock

9

GASKET, EXHAUST PIPE | MODEL K8/K9 NOT SHOWN

14181-46E10

1
Out of stock

10

O RING (D:2.4,ID:172) | NOT SHOWN

09280-00035

1
Out of stock

11

O RING (D:1.9,ID:13) | NOT SHOWN

09280-13004

1
Out of stock

12

.O-RING (D:2.4,ID:21.8) | NOT SHOWN

09280-22001

2
Out of stock

13

O RING (D:2.4,ID:52.6) | NOT SHOWN

09280-54001

1
Out of stock
