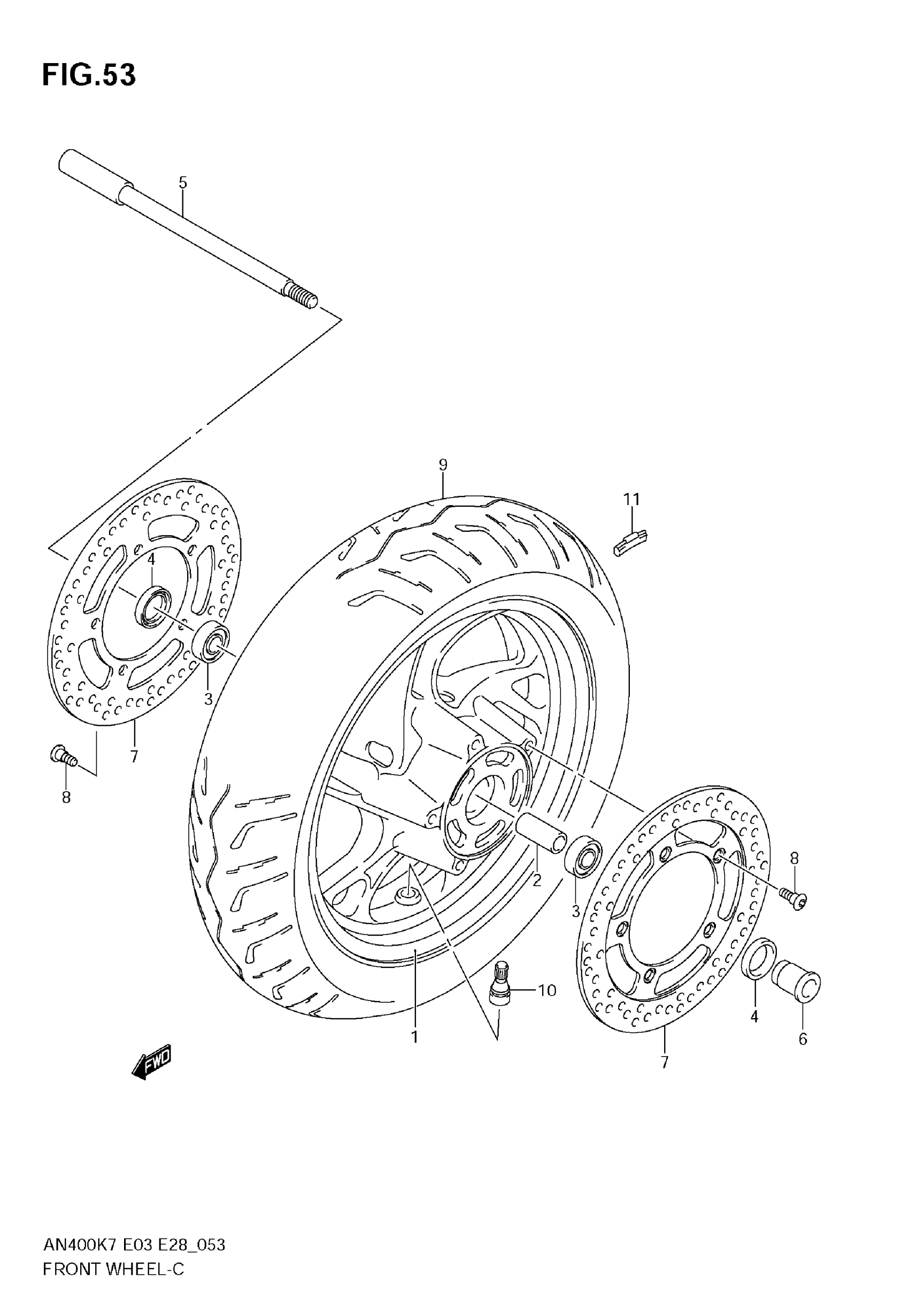

Suzuki AN400AK9 (2009) FRONT WHEEL (AN400K7/K8/K9) Diagram

#

Description

Price

1

WHEEL, FR (14M/CXMT3.00) (SILVER)

54111-05H00-YD8

Unavailable

2

SPACER, FRONT WHEEL BRG

09180-15070

$22.50

3

BEARING, FRONT WHEEL

08123-62027

$17.01

4

SEAL, FRONT WHEEL DUST | MODEL K7/K8

09284-22004

$10.57

4

SEAL,OIL | MODEL K9 This part replaces 09285-22005.

09285-22007

$6.26

5

AXLE,FRONT

54711-05H00

Unavailable

6

SPACER, FRONT AXLE, L

54751-14F00

$24.10

7

DISC, FRONT BRAKE

59221-14G20

Unavailable

8

BOLT, FRONT BRAKE DISC

09106-08160

$3.22

9

TIRE, FR, 120/80-14M/C 58S

55110-05H00

Unavailable

10

VALVE ASSY, WHEEL RIM

43130-24A00

$8.10

11

BALANCER, WHEEL NO.1

43222-73H10

$6.57

11

BALANCER, WHEEL NO.2

43224-73H10

$4.02

11

BALANCER, WHEEL NO.3

43226-73H10

$4.69
