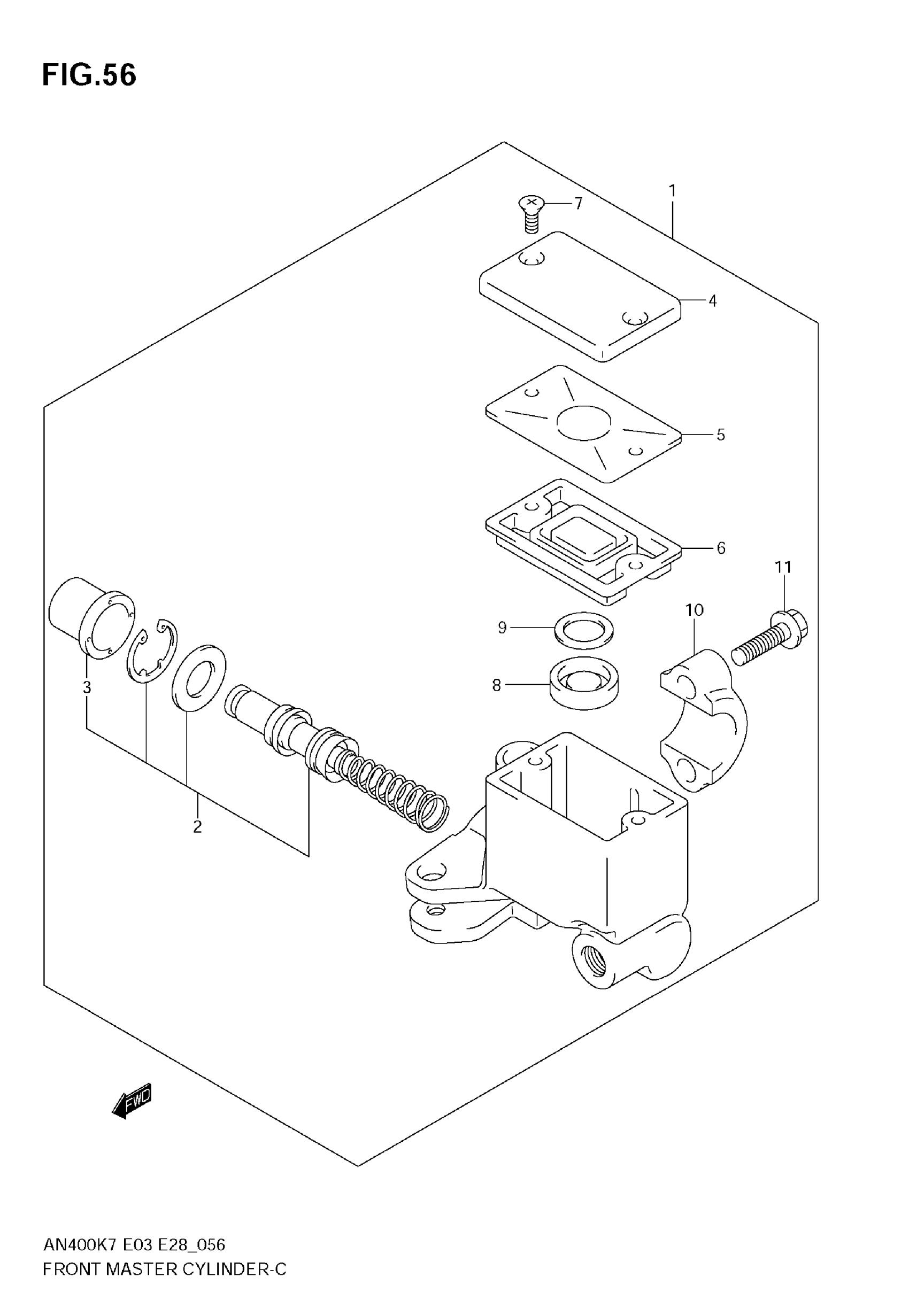

Suzuki AN400AK9 (2009) FRONT MASTER CYLINDER (MODEL K7) Diagram

#

Description
Price

1

CYLINDER ASSY, FRONT MASTER

59600-14F41

Unavailable

2

PISTON/CUP SET

59600-04810

$43.23

3

BOOT

59666-44300

$5.54

4

CAP

59669-14F10

$23.02

5

.PLATE,DIAPHRAGM

59668-14F00

$13.10

6

DIAPHRAGM

59667-04700

$9.36

7

SCREW, RESERVOIR CAP

69689-49300

$1.81

8

SEPARATOR

59748-15400

$9.22

9

PLATE

59749-15400

$2.80

10

.HOLDER

59671-36500

$12.01

11

BOLT (6X22)

59675-02FA0

$3.66
