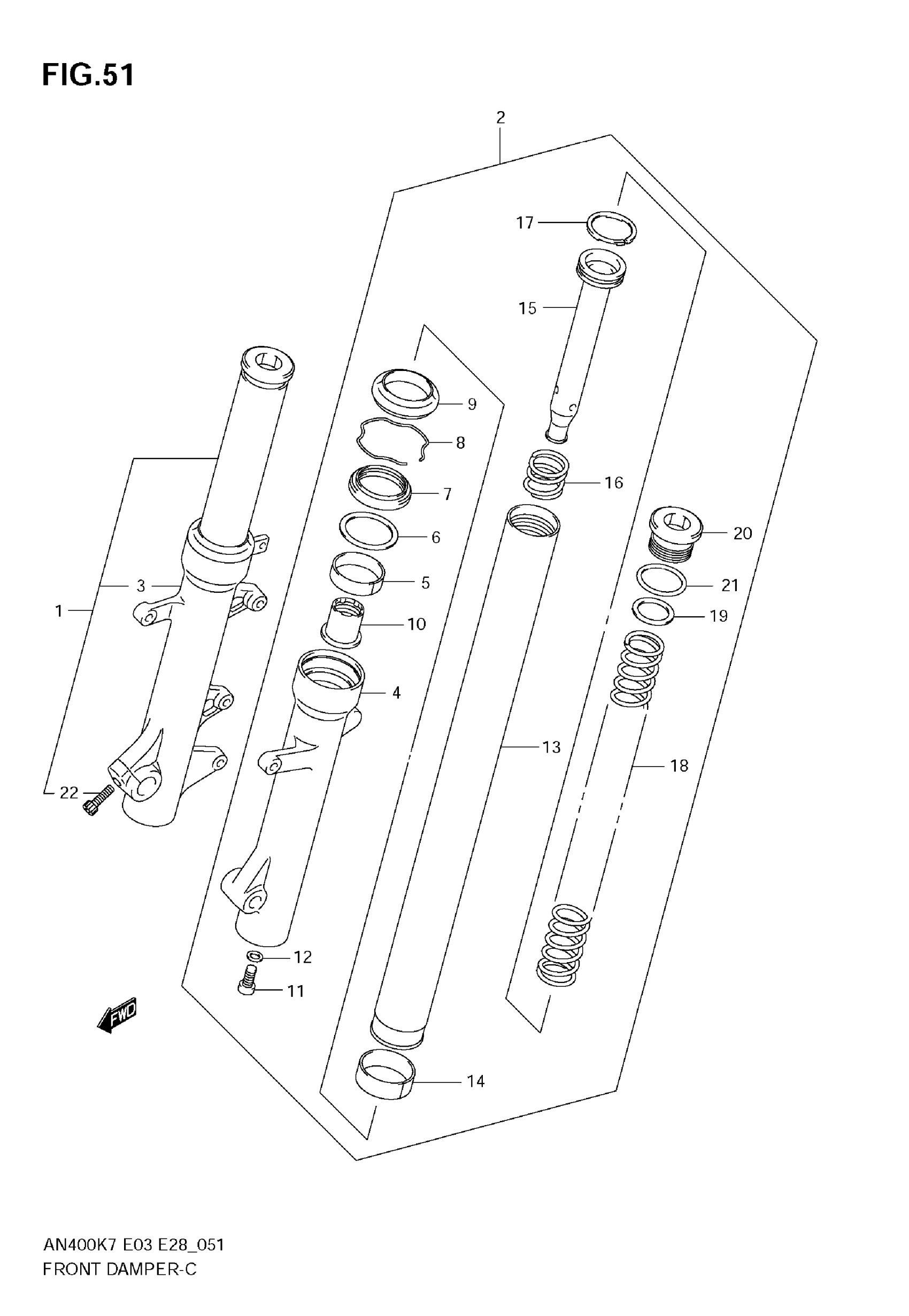

Suzuki AN400AK9 (2009) FRONT FORK DAMPER (AN400K7/K8/K9) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK, R

51103-05H00

Unavailable

2

DAMPER ASSY, FRONT FORK, L

51104-05H00

Unavailable

3

TUBE, OUTER, R

51130-05H00

Unavailable

4

TUBE, OUTER, L

51140-05H00

Unavailable

5

METAL, SLIDE

51167-26E10

$23.09

6

WASHER

51158-05A00

$5.34

7

SEAL, OIL

51153-10G50

$18.94

8

RING, OIL SEAL STOPPER

51156-49440

$4.75

9

SEAL, DUST

51173-14F00

$21.12

10

PIECE, OIL LOCK

51195-33D10

$29.57

11

BOLT, FORK CYLINDER

51147-05H00

$6.10

12

GASKET

51148-41310

$2.14

13

TUBE, INNER

51110-05H00

$389.02

14

PISTON

51121-33D10

$17.78

15

CYLINDER

51146-05H00

Unavailable

16

SPRING, REBOUND

51177-14F70

Unavailable

17

RING, PISTON

51196-14F51

Unavailable

18

SPRING, FRONT

51171-05H00

$62.47

19

WASHER, STEM HEAD (24.5X34X1.6)

51356-27C00

$7.62

20

CAP, FORK

51351-14F20

Unavailable

21

O RING

09280-32001

$2.07

22

BOLT | RH

51328-05H00

$6.50
