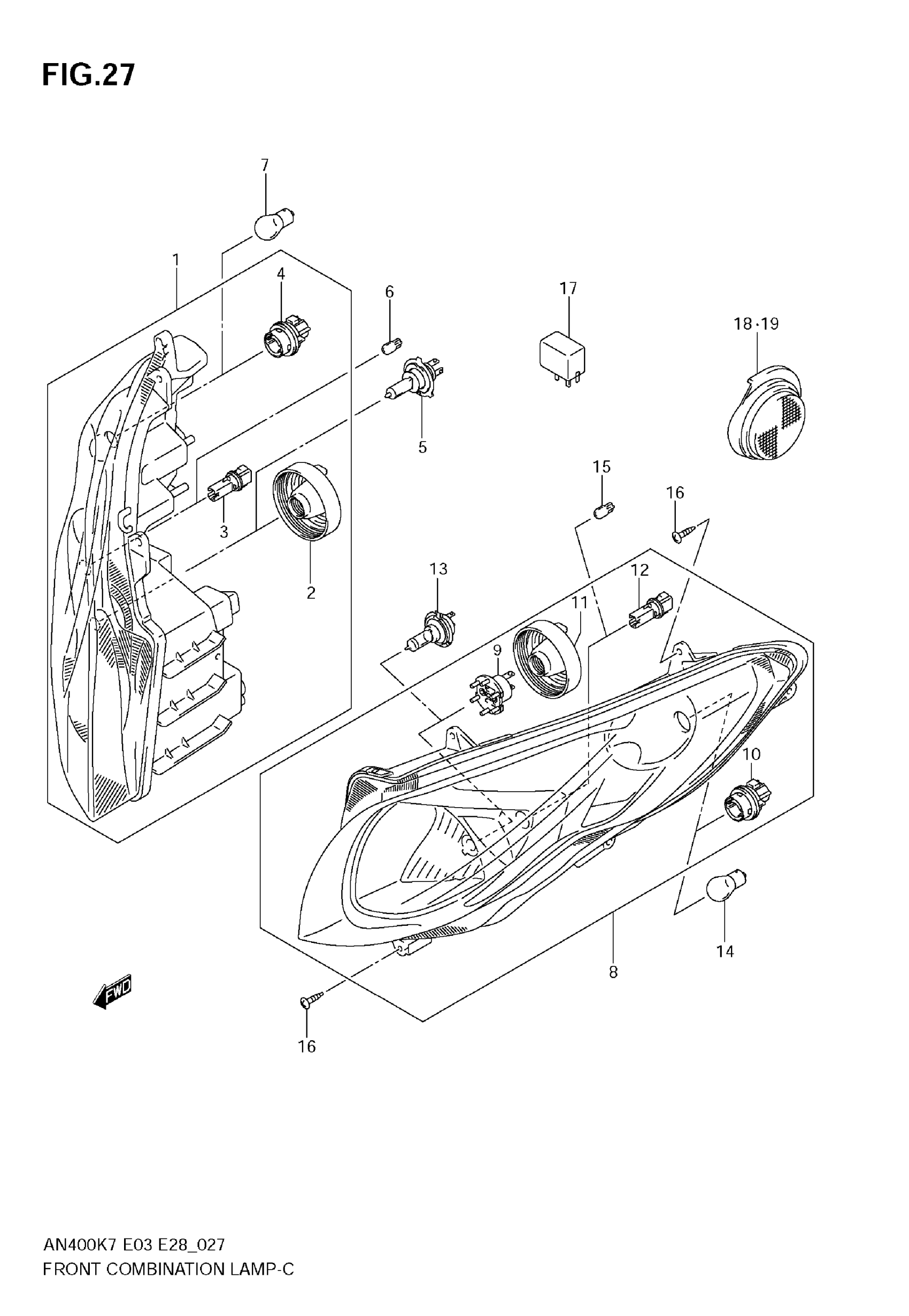

Suzuki AN400AK9 (2009) FRONT COMBINATION LAMP (MODEL K7) Diagram

#

Description
Price

1

LAMP ASSY, FRONT COMB, R

35100-05H20-999

Unavailable

2

SOCKET, COVER

35179-64G00

$12.39

3

SOCKET, POSITION | FOR POSITION

35118-76F00

Unavailable

4

SOCKET | FOR TURN

36118-60G00

Unavailable

5

BULB (12V60/55W)

09471-12182

$77.08

6

.BULB (12V5W) | FOR POSITION

09471-12216

$5.36

7

BULB (12V27/8W) | FOR TURN

09471-12152

Unavailable

8

LAMP ASSY, FRONT COMB, L

35300-05H20-999

Unavailable

9

ADAPTER ASSY

34175-33E50

$18.50

10

SOCKET | FOR TURN

36118-60G00

Unavailable

11

SOCKET, COVER

35179-64G00

$12.39

12

SOCKET, POSITION | FOR POSITION

35118-76F00

Unavailable

13

BULB (12V55W H7)

09471-12188

$22.60

14

BULB (12V27/8W) | FOR TURN

09471-12152

Unavailable

15

.BULB (12V5W) | FOR POSITION

09471-12216

$5.36

16

SCREW

03541-0516A

$1.49

17

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

$87.08

18

REFLEX REFLECTOR, FR R

35951-05H00

$42.20

19

REFLEX REFLECTOR, FR L

35952-05H00

$53.17
