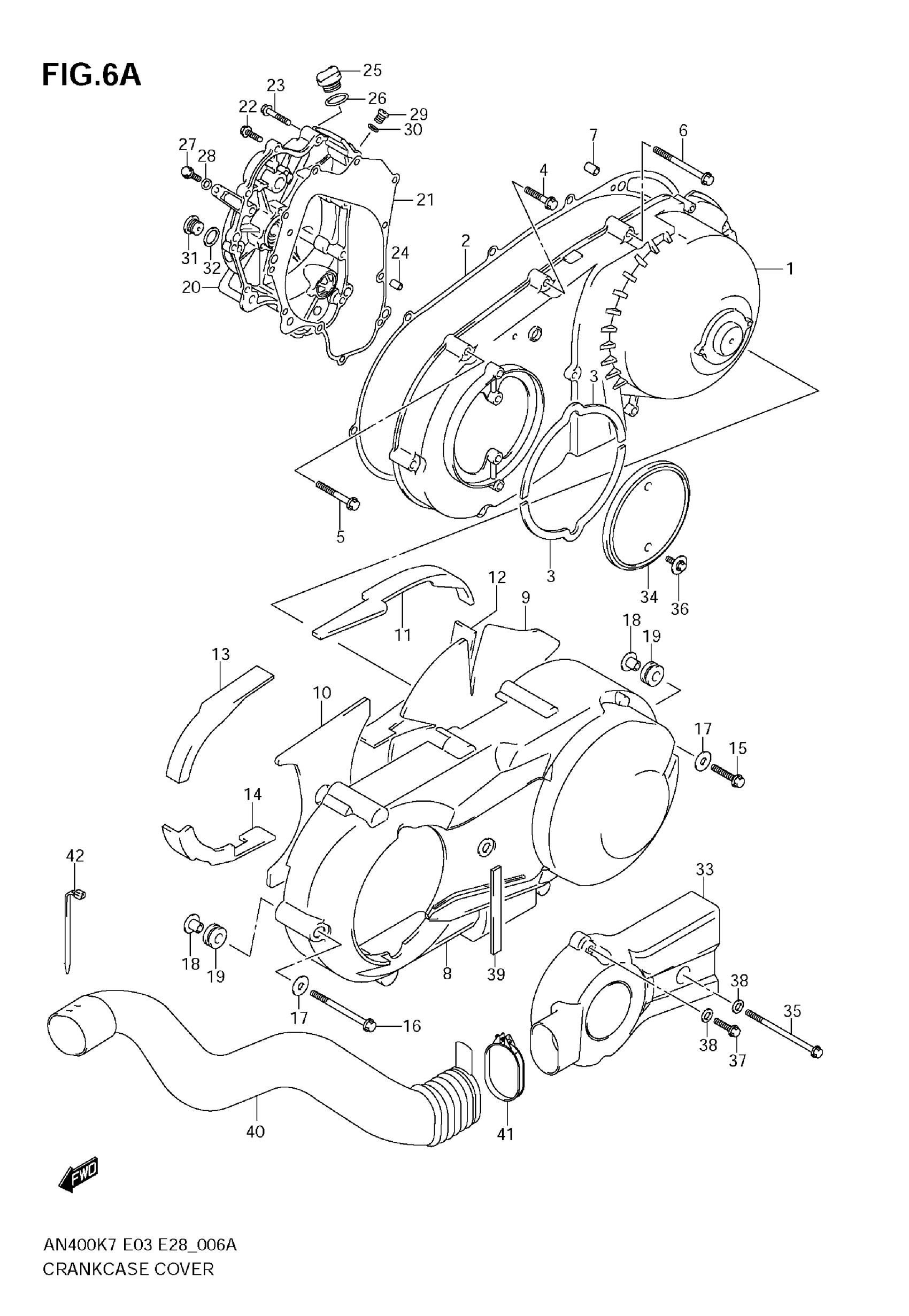

Suzuki AN400AK9 (2009) CRANKCASE COVER (MODEL K9) Diagram

#

Description
Price

1

COVER,CLUTCH INNER

11341-05H00

$385.72

2

GASKET

11482-05H00

$66.08

3

CUSHION, COOLING DUCT

11485-05H00

$5.98

4

BOLT

01547-0630A

$2.32

5

BOLT

01547-0645A

$2.42

6

BOLT

01547-0675A

$3.28

7

PIN

04211-09149

$1.65

8

COVER,CLUTCH OU This part replaces 11371-05H20.

11371-05H21

$129.05

9

CUSHION, COVER NO.1

11486-05H00

$62.48

10

CUSHION, COVER NO.2

11487-05H00

$24.52

11

CUSHION, COVER NO.3

11488-05H00

$16.13

12

CUSHION, COVER NO.4

11489-05H00

$12.40

13

CUSHION, COVER NO.5

11491-05H00

$11.78

14

CUSHION, COVER NO.6

11492-05H00

$13.28

15

BOLT

01547-0625A

$2.01

16

BOLT

01547-0660A

$2.82

17

WASHER (6.5X18X1.0)

09160-06028

$1.49

18

SPACER

09169-06062

$2.50

19

CUSHION

09320-09016

$1.97

20

COVER, MAGNETO

11350-05H00

Unavailable

21

GASKET

11483-05H00

$18.75

22

BOLT (6X25)

09103-06212

$2.47

23

BOLT (6X40)

09103-06215

$2.78

24

PIN

04211-09149

$1.65

25

PLUG,ENGINE OIL FILLER

11971-25D00

$5.11

26

O RING (D:3.1,ID:16.8)

09280-17003

$1.65

27

PLUG, OIL GALLERY

01547-0612A

$2.03

28

GASKET (ID:5.8,OD:13)

09168-06023

$2.35

29

PLUG, OIL GALLERY

09248-10010

$4.17

30

GASKET (ID:9.9,OD:14)

09168-10002

$2.13

31

PLUG, TDC

09248-16012

$4.64

32

GASKET (ID:16,OD:22)

09168-16002

$1.91

33

DUCT, BELT COOLING

11380-05H40

Unavailable

34

FILTER

11388-10G00

$20.82

35

BOLT (6X95)

09103-06227

$4.17

36

BOLT (6X16)

09116-06170

$2.50

37

BOLT

01547-0620A

$2.03

38

WASHER

08322-01067

$2.13

39

CUSHION

11382-05H30

Unavailable

40

HOSE,BELT COOLI This part replaces 11383-05H40.

11383-05H41

$41.93

41

CLAMP,BELT COOL This part replaces 11384-05H40.

11384-05H41

$8.68

42

CLAMP

09407-14403

$2.26
