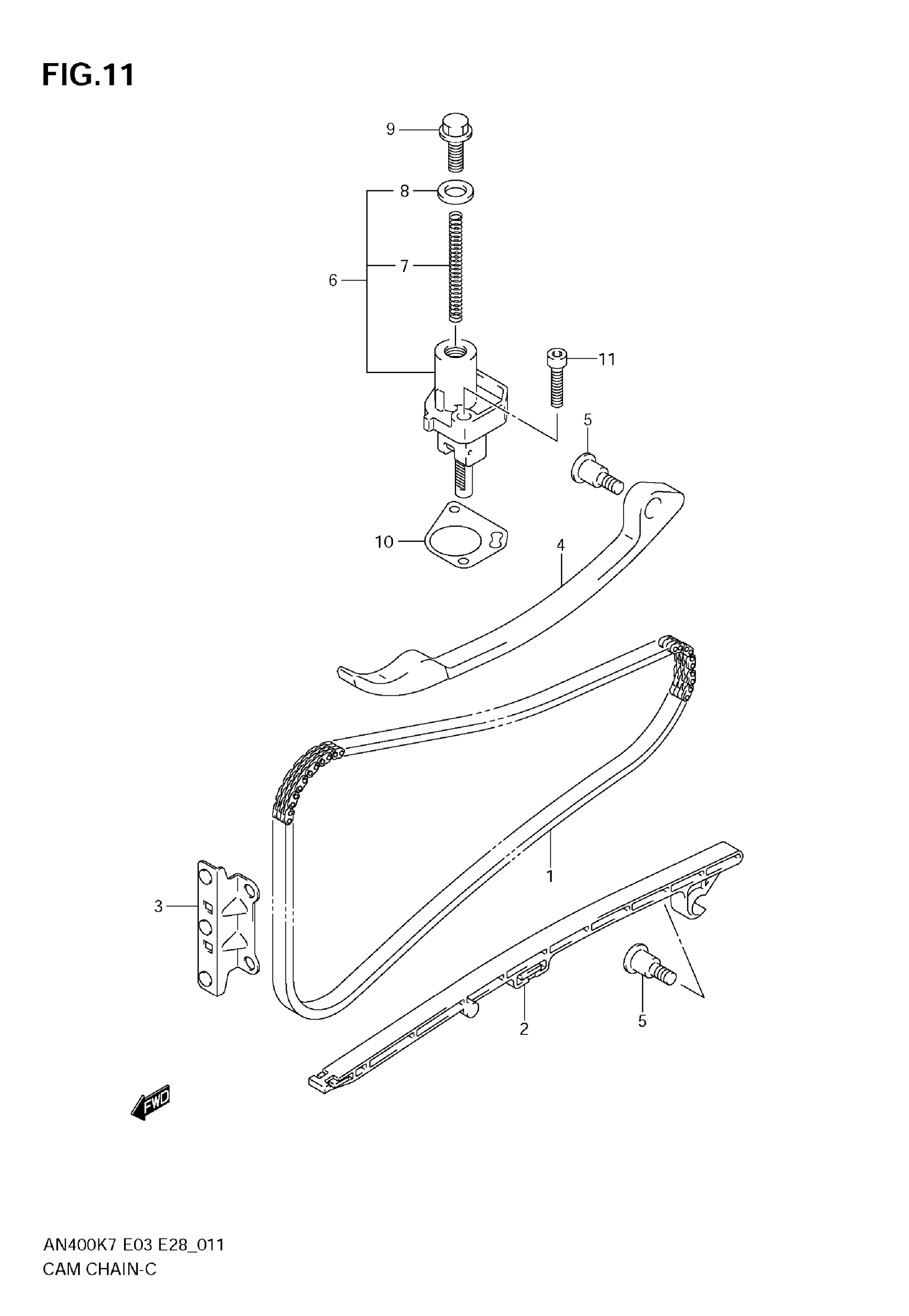

Suzuki AN400AK9 (2009) CAM CHAIN Diagram

#

Description
Price

1

CHAIN, CAMSHAFT DRIVE

12760-19F01

$197.58

2

GUIDE,CAM CHAIN NO.1 This part replaces 12771-05H00.

12771-05H01

$28.48

3

GUIDE,CAM CHAIN NO.2

12782-05H00

$37.08

4

TENSIONER,CAM CHAIN This part replaces 12811-05H00.

12811-05H01

$27.92

5

BOLT

12812-31G00

$4.58

6

ADJUSTER ASSY,TENSIONER RR

12830-27G10

$119.50

7

SPRING

12831-39F00

$5.77

8

GASKET

12837-24F10

$4.78

9

PLUG

12833-17G00

$7.87

10

GASKET

12837-27G00

$4.72

11

BOLT

07130-0625B

$3.04
