2008 Suzuki AN400 Wiring Harness Diagram

← All diagrams

Find the part on the Wiring Harness diagram for your 2008 Suzuki AN400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

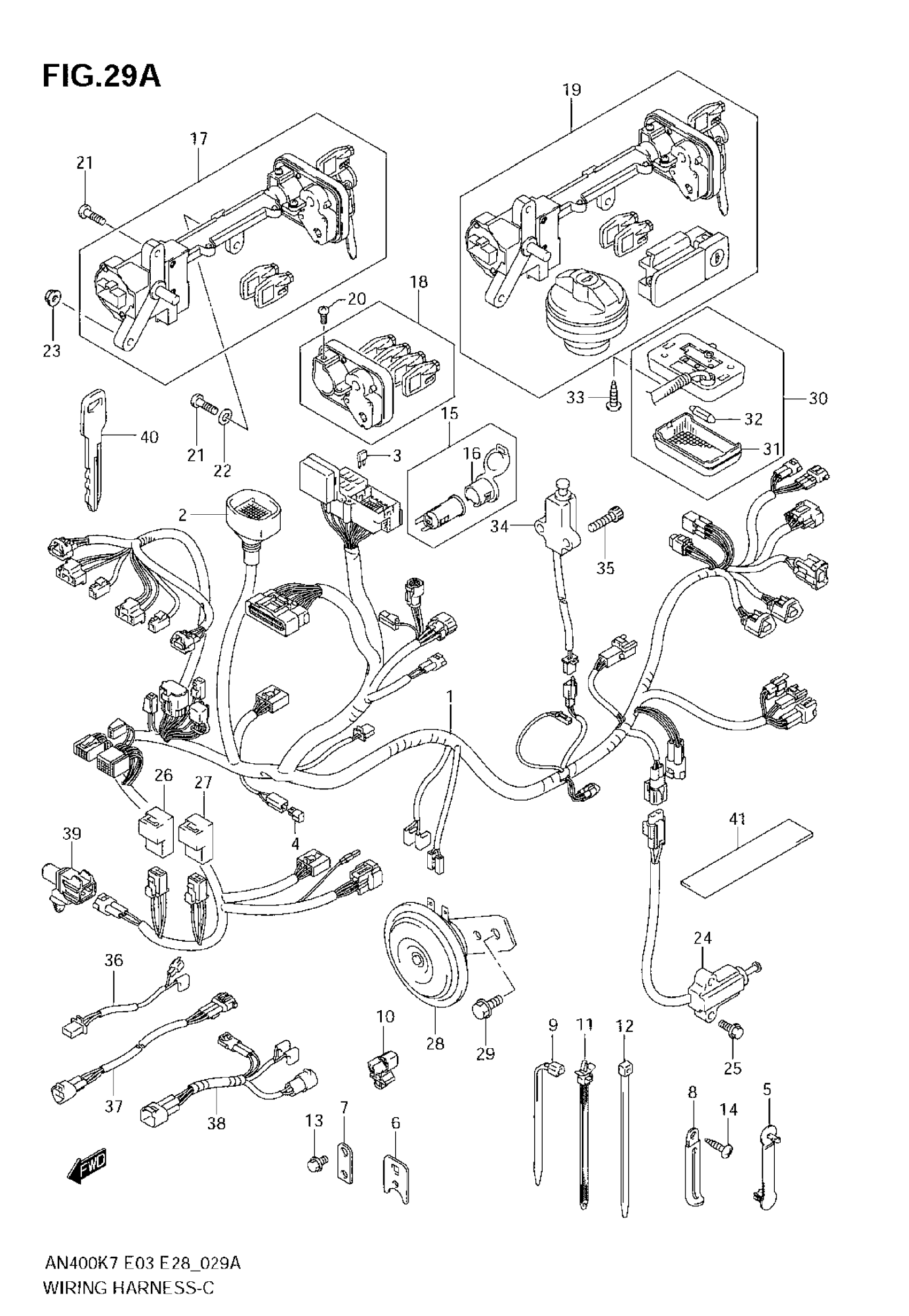

2008 Suzuki AN400 Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HARNESS, WIRING | Includes Item(s) 2 - 4

36610-05H80

1
Out of stock

2

COVER

36618-21E00

1
Out of stock

3

FUSE (10A)

09481-10501

2
Out of stock

3

FUSE (15A)

09481-15501

4
Out of stock

4

DIODE

32800-16A00

1
Out of stock

5

CLAMP

36651-48E00

3
Out of stock

6

BRACKET, LEAD WIRE

36672-05H00

1
Out of stock

7

BRACKET, LEAD WIRE

36672-05H10

1
Out of stock

8

CLAMP (L:45)

09404-06429

1
Out of stock

9

CLAMP (L:125)

09407-14403

5
Out of stock

9

CLAMP (L:190)

09407-19401

8
Out of stock

9

CLAMP (L:235)

09407-25401

3
Out of stock

10

CLAMP (ID:80)

09403-08332

1
Out of stock

11

CLAMP (L:90)

09407-11402

2
Out of stock

12

CLAMP (L:145)

09407-14407

1
Out of stock

13

BOLT

01547-0612B

1
Out of stock

14

SCREW

03541-0616A

1
Out of stock

15

TERMINAL, POWER SOURCE | Includes Item(s) 16

39410-76F00-P4Z

1
Out of stock

16

COVER

39441-76F00-P4Z

1
Out of stock

17

LOCK ASSY,STEER This part replaces 37120-10851.

37120-10855

1
Out of stock

18

SHUTTER, STEERING LOCK

37155-10G01

1
Out of stock

19

LOCK SET This part replaces 37103-10890.

37103-10894

1
Out of stock

20

TORX BOLT (5X10)

37159-14G00

2
Out of stock

21

SCREW (6X20)

09139-06048

2
Out of stock

22

WASHER (6.5X18X1.6)

09160-06109

1
Out of stock

23

NUT

08316-1006B

1
Out of stock

24

SWITCH ASSY,SID This part replaces 37840-11X50.

37840-11X51

1
Out of stock

25

BOLT

01550-0620B

2
Out of stock

26

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

1
Out of stock

27

RELAY ASSY,FUEL PUMP This part replaces 38740-26E00.

38740-26E01

1
Out of stock

28

HORN ASSY

38500-05H00

1
Out of stock

29

BOLT

01550-0812B

1
Out of stock

30

LAMP ASSY, TRUNK BOX | Includes Item(s) 31 - 32

36210-14G00

1
Out of stock

31

LENS, ROOM LAMP

36212-79001

1
Out of stock

32

BULB (12V5W)

09471-12073

1
Out of stock

33

SCREW

03541-0412B

2
Out of stock

34

SWITCH ASSY, TRUNK BOX LAMP

37980-14F00

1
Out of stock

35

BOLT

07130-0516B

2
Out of stock

36

WIRE, POWER SOURCE LEAD

36852-05H00

—
Out of stock

37

WIRE, SPEED SENSOR

36853-05H00

1
Out of stock

38

WIRE, IGNITION COIL LEAD

36854-05H00

1
Out of stock

39

SENSOR, AMBIENT AIR

95643-58J00

1
Out of stock

40

KEY, BLANK

37146-14G00

1
Out of stock

41

CUSHION (80X80X2) | CUT AS REQUIRED (20X80)

33652-07D00

1
Out of stock
← Wiring Harness Frame →
