2008 Suzuki AN400 Front Combination Lamp Diagram

← All diagrams

Find the part on the Front Combination Lamp diagram for your 2008 Suzuki AN400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

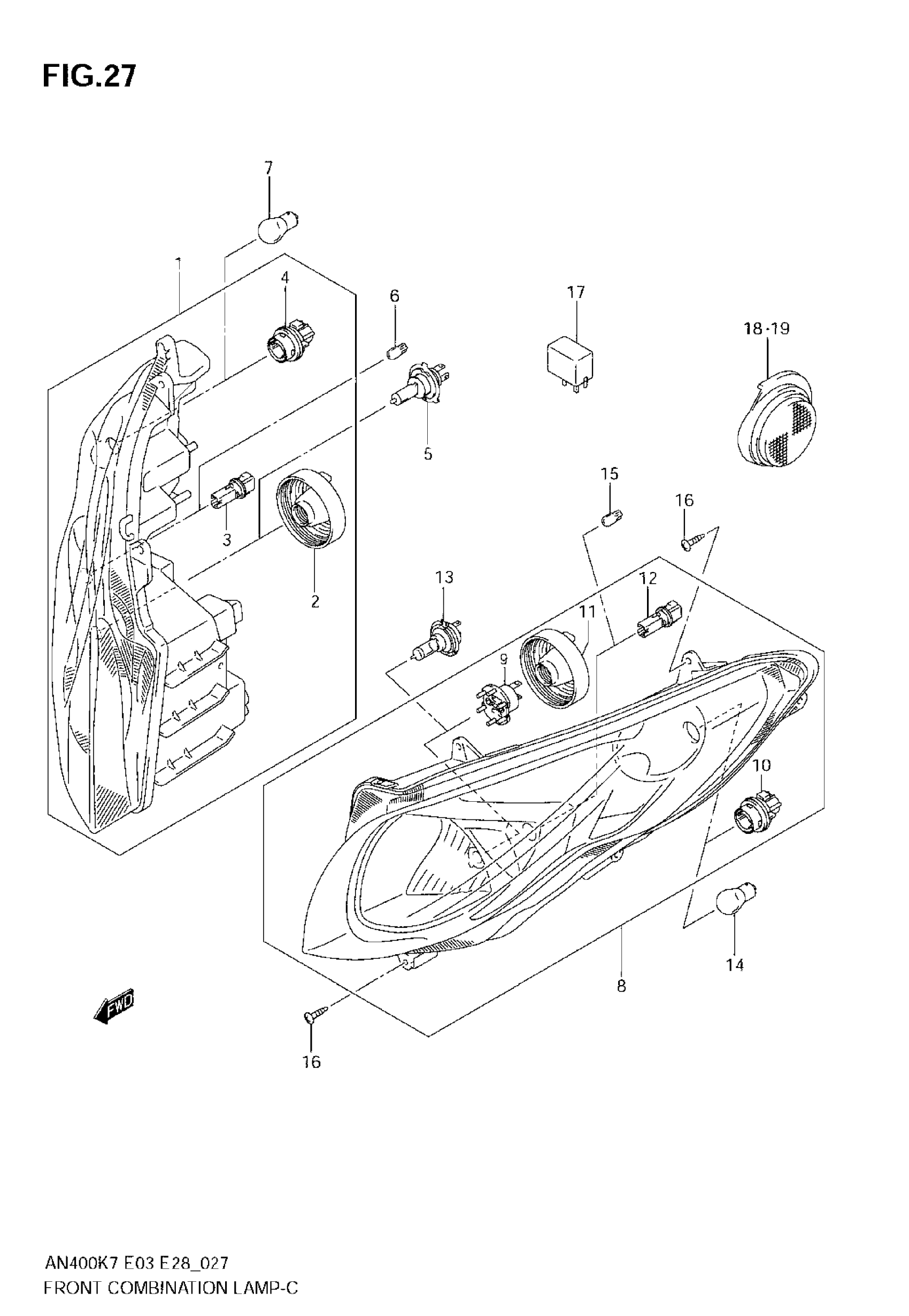

2008 Suzuki AN400 Front Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, FRONT COMB, RH | Includes Item(s) 2 - 4

35100-05H20-999

1
Out of stock

2

SOCKET, COVER

35179-64G00

1
Out of stock

3

SOCKET, POSITION | FOR POSITION

35118-76F00

1
Out of stock

4

SOCKET | FOR TURN

36118-60G00

1
Out of stock

5

BULB (12V60/55W,H4)

09471-12182

1
Out of stock

6

.BULB (12V5W) | FOR POSITION

09471-12216

1
Out of stock

7

BULB (12V27/8W) | FOR TURN

09471-12152

1
Out of stock

8

LAMP ASSY, FRONT COMB, LH | Includes Item(s) 9 - 12

35300-05H20-999

1
Out of stock

9

ADAPTER ASSY

34175-33E50

1
Out of stock

10

SOCKET | FOR TURN

36118-60G00

1
Out of stock

11

SOCKET, COVER

35179-64G00

1
Out of stock

12

SOCKET, POSITION | FOR POSITION

35118-76F00

1
Out of stock

13

BULB (12V55W H7)

09471-12188

1
Out of stock

14

BULB (12V27/8W) | FOR TURN

09471-12152

1
Out of stock

15

.BULB (12V5W) | FOR POSITION

09471-12216

1
Out of stock

16

SCREW

03541-0516A

10
Out of stock

17

RELAY ASSY,TURNSIGNAL LAMP This part replaces 38610-03F00.

38610-03F01

1
Out of stock

18

REFLEX REFLECTOR, FR RH

35951-05H00

1
Out of stock

19

REFLEX REFLECTOR, FR LH

35952-05H00

1
Out of stock
