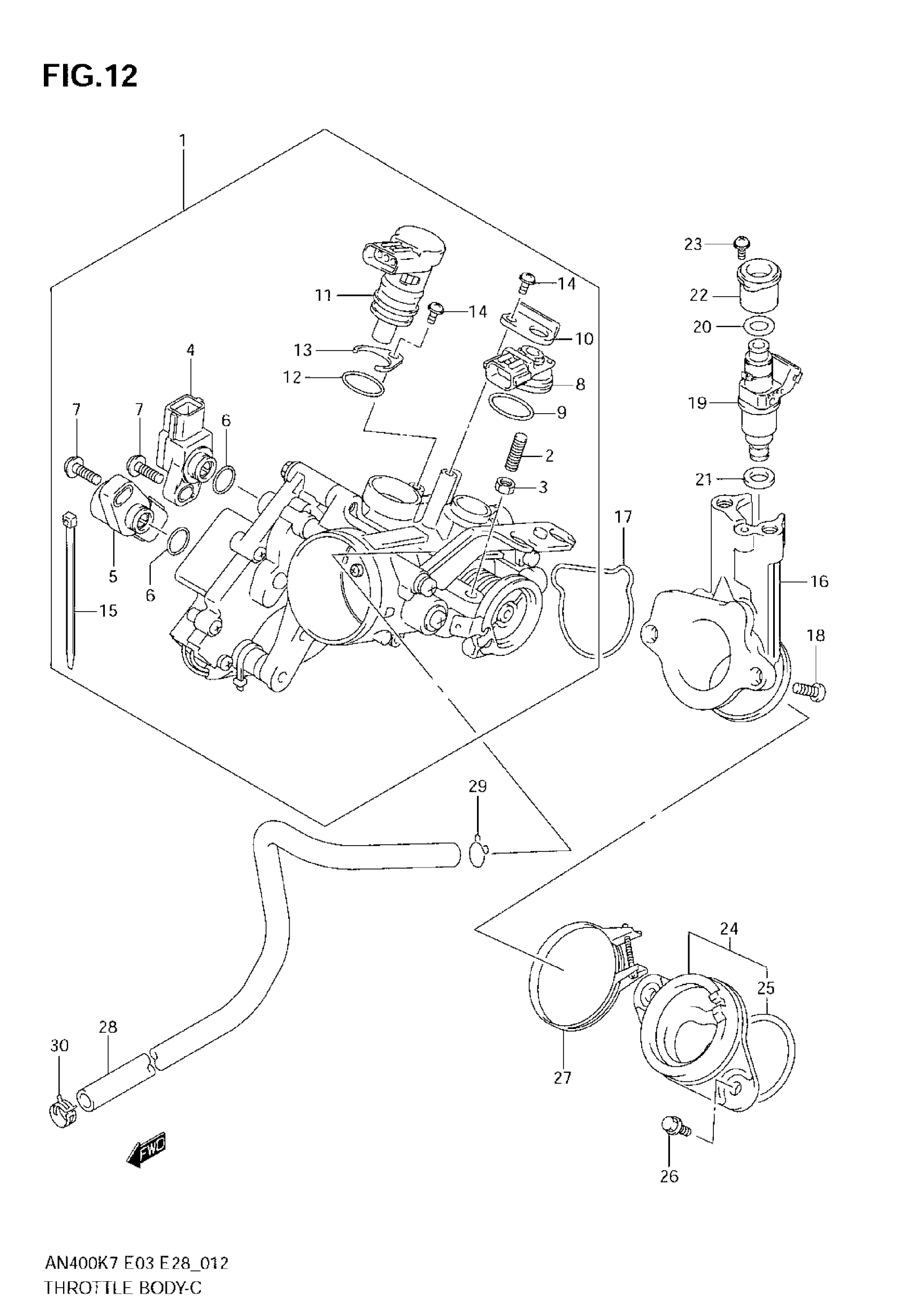

Suzuki AN400 (2008) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY,THROT | E3,E28 This part replaces 13401-05H00.

13401-05H03

$800.03

1

BODY ASSY,THROT | E33; Includes Item(s) 2 - 15 This part replaces 13401-05H10.

13401-05H13

$737.35

2

SCREW

13267-14G00

Unavailable

3

NUT

13661-14G00

Unavailable

4

SENSOR ASSY, MAIN

13580-18G00

$205.80

5

.SENSOR ASSY, SUB This part replaces 13580-05H00.

13580-05H01

$268.93

6

O RING

13575-40F00

$4.09

7

SCREW

13605-40F00

$3.71

8

SENSOR, MAP

15620-05H00

$273.45

9

.O RING This part replaces 15621-05H00.

15621-05H01

$9.05

10

PLATE

15622-05H00

Unavailable

11

VALVE ASSY,ISC This part replaces 18117-05H00.

18117-05H12

$260.10

12

O RING

18119-05H00

$3.95

13

PLATE

13428-06F30

$6.47

14

SCREW

02112-14087

$2.38

15

CLAMP

09407-14407

$3.57

16

INTAKE PIPE

13111-05H00

$293.10

17

.O RING

13278-05H00

$13.35

18

BOLT

13612-14G00

$2.42

19

INJECTOR ASSY This part replaces 15710-05H00.

15710-05H01

$333.68

20

O-RING

15721-10G00

$9.09

21

RING

15722-45G00

$13.23

22

COVER

13473-14G00

$14.77

23

SCREW

13601-14G00

$3.03

24

PIPE ASSY,INTAKE | Includes Item(s) 25 This part replaces 13101-05H00.

13101-05H01

$51.63

25

O RING

09280-42003

$8.65

26

BOLT

09119-06092

$2.38

27

CLAMP

09402-58208

$5.36

28

HOSE, PURGE | E33

13680-05H10

Unavailable

29

CLIP | E33

09401-06101

$2.03

30

CLIP | E33

09401-08411

$1.78
