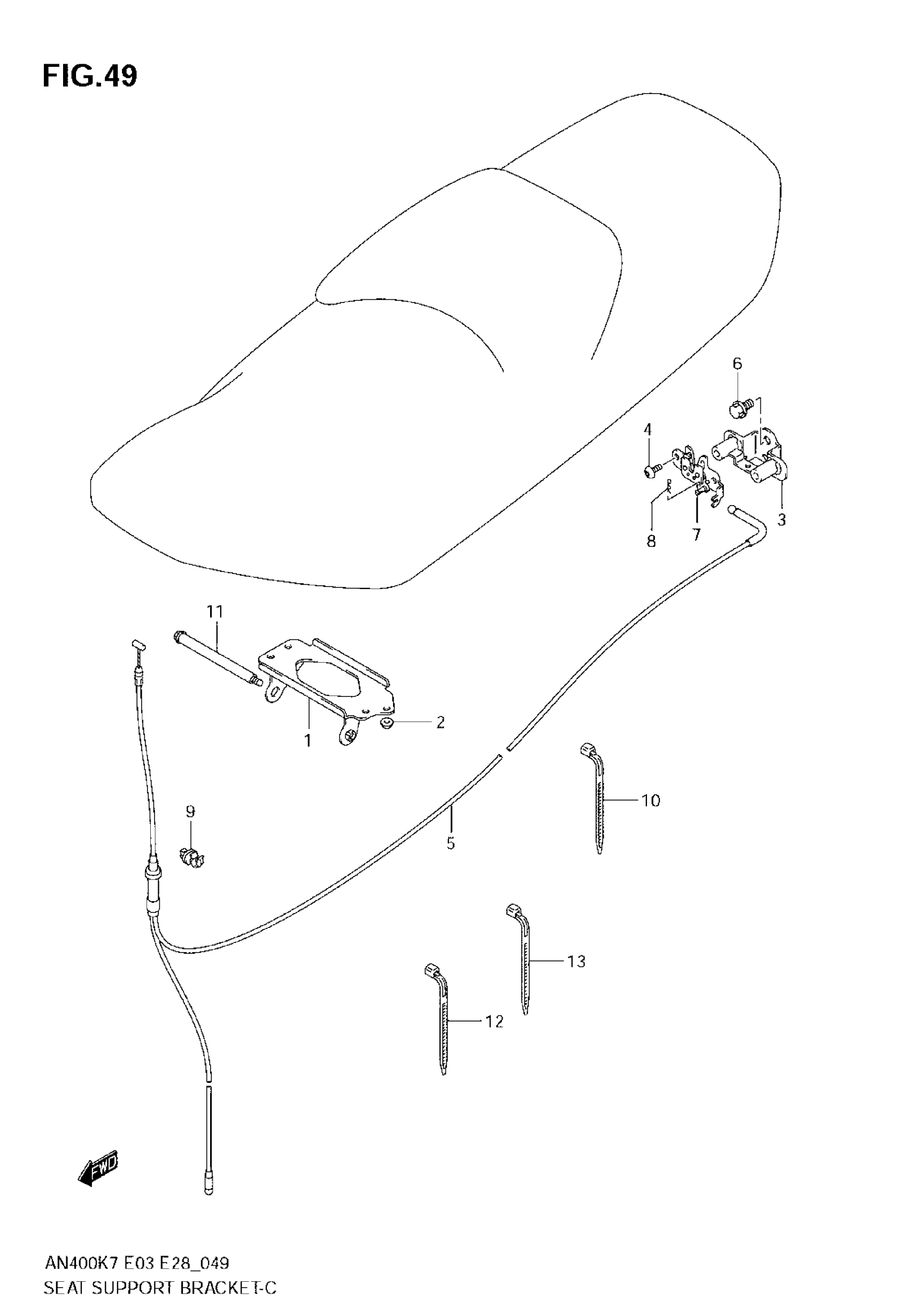

Suzuki AN400 (2008) SEAT SUPPORT BRACKET Diagram

#

Description
Price

1

BRACKET, SEAT HINGE

45240-05H00

Unavailable

2

NUT, SEAT BRACKET FRONT

08316-1006B

$2.50

3

BRACKET, SEAT SUPPORT

45220-05H00

Unavailable

4

BOLT, SEAT SUPPORT

09139-06139

$3.23

5

CABLE, SEAT LOCK This part replaces 45280-05H00.

45280-05H02

$46.90

6

BOLT,SEAT HINGE BRKT

45215-05H00

Unavailable

7

LOCK ASSY, SEAT STRIKER This part replaces 45700-14FD0.

45700-14FD2

$75.03

8

PIN, STRIKER SUPPORT BRKT

09385-05004

$1.55

9

CLAMP, SEAT LOCK CABLE

09403-07331

$3.50

10

CLAMP, SEAT LOCK CABLE

09407-18402

$2.19

11

BOLT, SEAT LOCK BRKT

01550-1016B

$4.10

12

CLAMP, SEAT LOCK CABLE

09407-19401

$3.05

13

CLAMP, SEAT LOCK CABLE

09407-14403

$2.26
