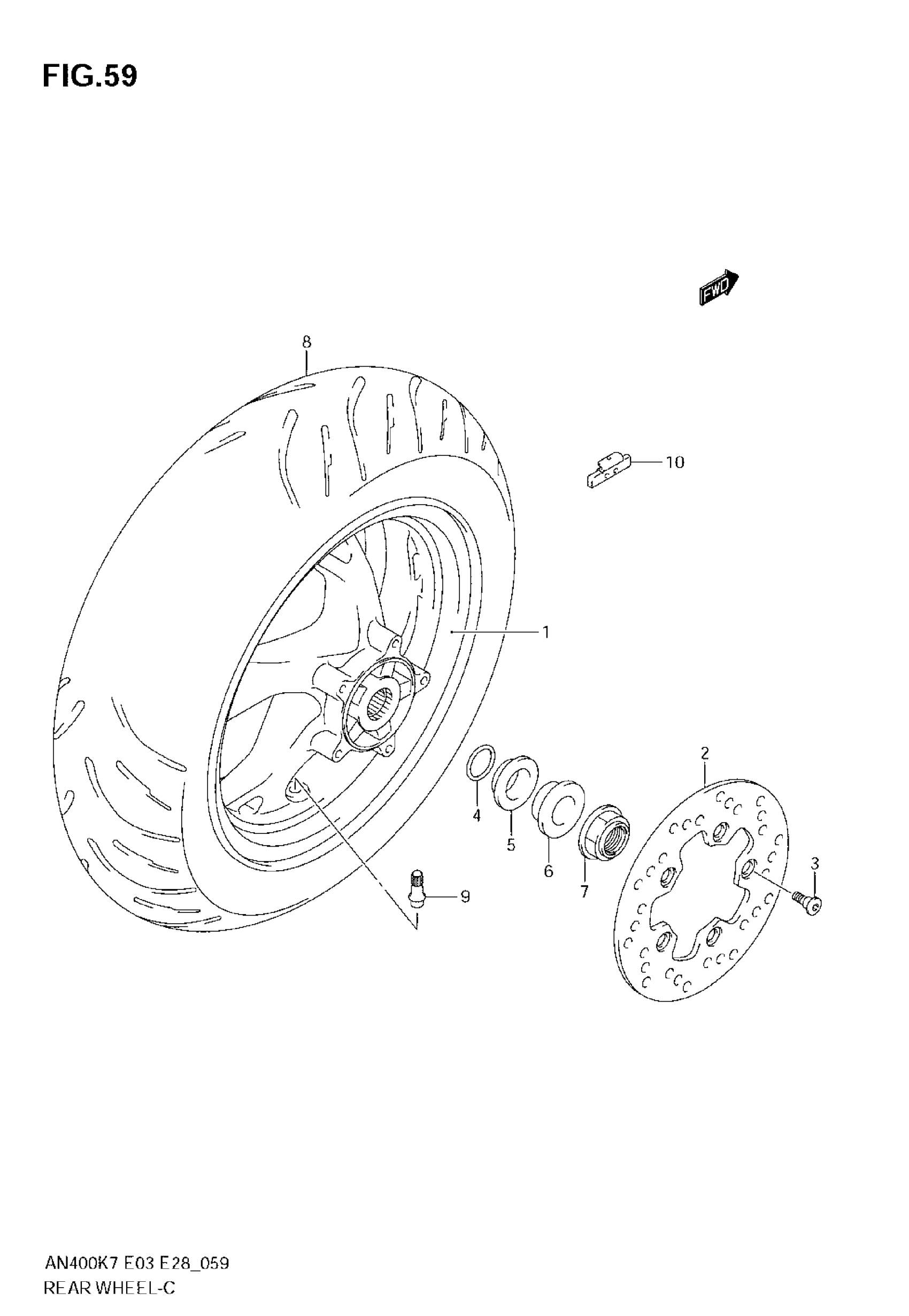

Suzuki AN400 (2008) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, RR (13M/CXMT4.00) (SILVER)

64110-05H00-YD8

Unavailable

2

DISC,REAR BRAKE

69211-05H00

$205.55

3

BOLT, DISC

09106-08160

$3.57

4

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

$1.55

5

SPACER,REAR AXLE INNER

64741-05H00

Unavailable

6

SPACER,REAR AXLE OUTER

64751-05H00

Unavailable

7

NUT, REAR AXLE

09159-20014

$37.47

8

TIRE, RR, 150/70-13M/C 64S

65110-05H00

$307.90

9

VALVE ASSY, WHEEL RIM

43130-24A00

$8.85

10

BALANCER, WHEEL NO.1

43222-73H10

$5.82

10

BALANCER, WHEEL NO.2

43224-73H10

$5.50

10

BALANCER, WHEEL NO.3

43226-73H10

$6.42
