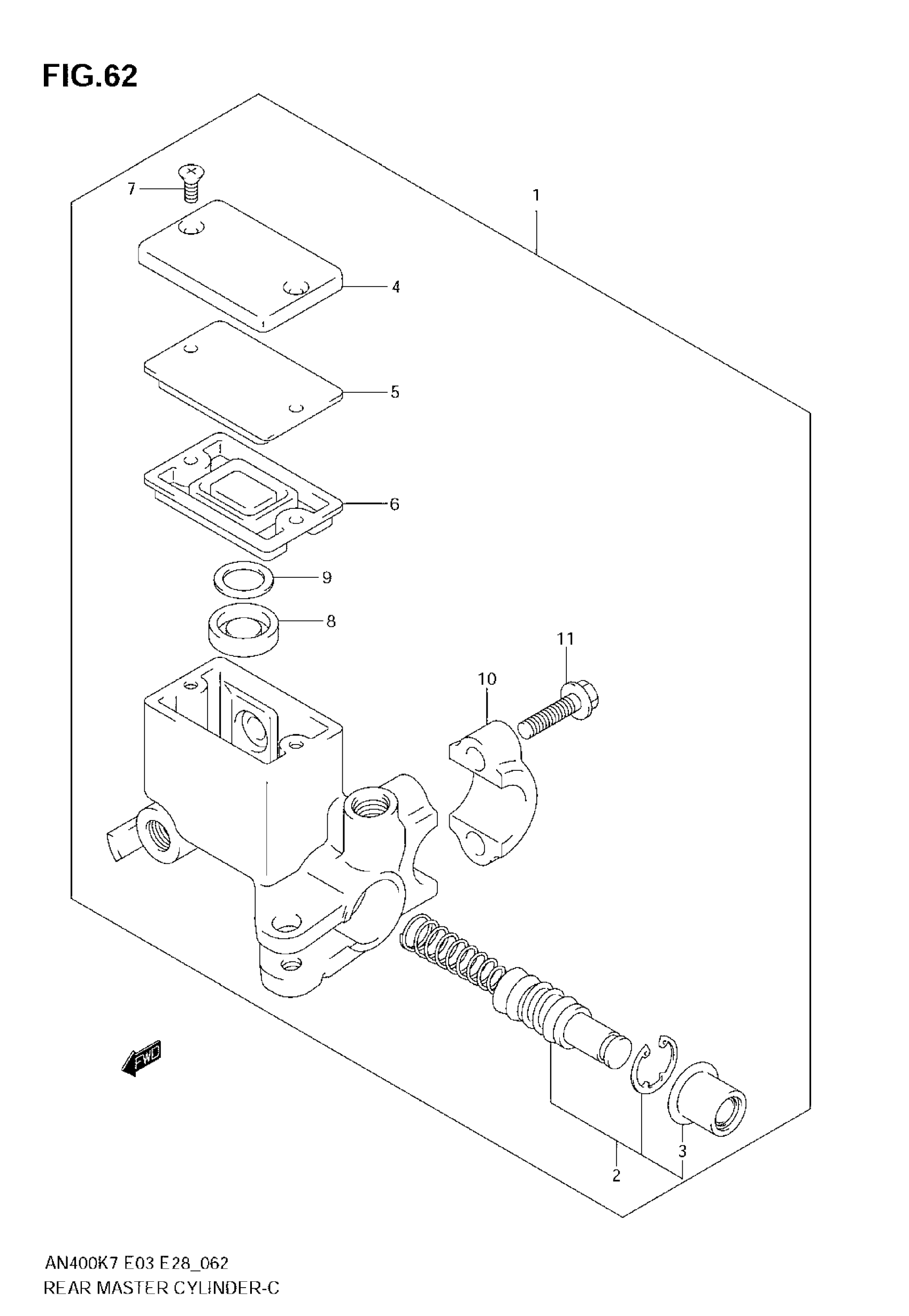

Suzuki AN400 (2008) REAR MASTER CYLINDER (MODEL K7) Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER | Includes Item(s) 2 - 11 This part replaces 69600-14F60.

69600-14F61

$222.22

2

PISTON & CUP SET

59600-04810

$45.20

3

BOOT

59666-44300

$5.80

4

CAP

59669-14F10

$20.40

5

.PLATE,DIAPHRAGM

59668-14F00

$11.60

6

DIAPHRAGM

59667-04700

$9.78

7

SCREW

69689-49300

$1.91

8

SEPARATOR

59748-15400

$9.38

9

PLATE

59749-15400

$2.79

10

.HOLDER

59671-36500

$12.21

11

BOLT

59675-02FA0

$3.82
