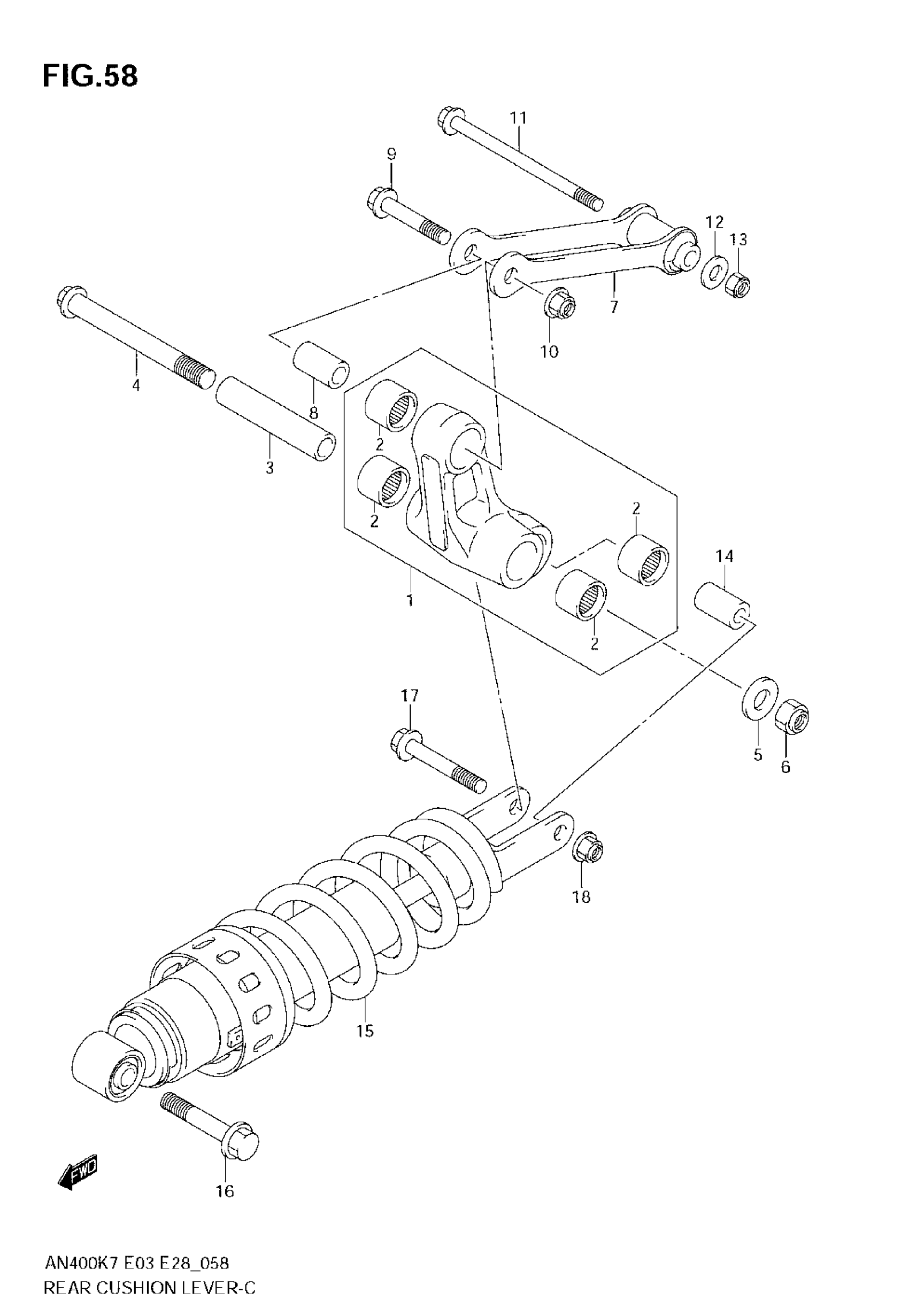

Suzuki AN400 (2008) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION | Includes Item(s) 2

62601-05820

Unavailable

2

.BEARING (17X24X26) This part replaces 09263-17034.

09263-17057

$20.85

3

SPACER, REAR CUSHION LEVER

62646-08G00

$36.78

4

BOLT,RR CUSHION ROD (12X111)

62621-19D00

$19.15

5

WASHER, REAR CUSHION LEVER

09160-12080

$4.80

6

NUT This part replaces 08319-21128.

08319-2112A

$3.76

7

ROD,RR CUSHION LEVER

62640-14F30

Unavailable

8

SPACER, REAR CUSHION ROD

62684-40A10

$12.15

9

BOLT, REAR CUSHION ROD FR

09103-10101

$4.00

10

NUT, REAR CUSHION ROD FR

08319-31107

$2.73

11

BOLT, REAR CUSHION ROD RR

09103-10198

Unavailable

12

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.26

13

NUT, REAR CUSHION ROD RR

09159-10027

$3.10

14

SPACER, REAR CUSHION LEVER

62684-40A10

$12.15

15

ABSORBER ASSY, REAR SHOCK | E28

62100-05H10

Unavailable

15

ABSORBER ASSY, REAR SHOCK | E3,E33

62100-05H20

Unavailable

16

BOLT, REAR SHOCK ABS FR

09103-10126

$4.50

17

BOLT, REAR SHOCK ABS RR

09103-10143

$4.52

18

NUT, REAR SHOCK ABS RR

08319-31107

$2.73
