2008 Suzuki AN400 Rear Combination Lamp Diagram

← All diagrams

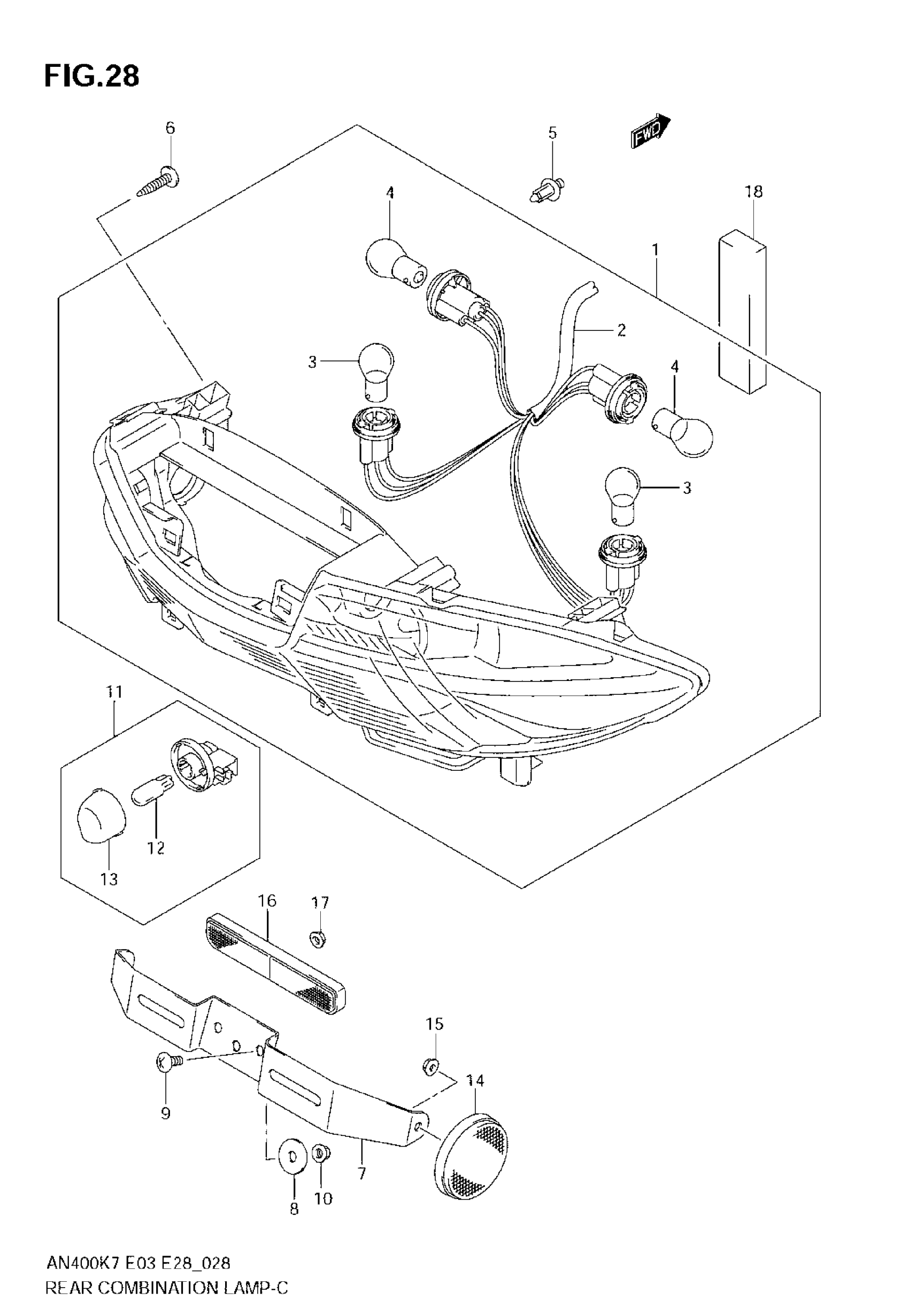

Find the part on the Rear Combination Lamp diagram for your 2008 Suzuki AN400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Suzuki AN400 Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, REAR COMB | Includes Item(s) 2 - 4

35710-05H00

1
Out of stock

2

SOCKET & CORD

35718-05H00

1
Out of stock

3

BULB (12V21W,AMBER)

09471-12186

2

$12.50

In stock

4

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

2
Out of stock

5

CLIP, REAR COMB

09409-08308-5ES

2
Out of stock

6

SCREW

03541-0516B

4
Out of stock

7

PLATE, LICENSE

35927-05H00

1
Out of stock

8

WASHER (6.5X24X1.2) This part replaces 09160-06140.

09160-06114

2
Out of stock

9

SCREW

02142-0616B

2
Out of stock

10

NUT

08316-1006B

2
Out of stock

11

LAMP ASSY, LICENSE | Includes Item(s) 12 - 13

35910-14F01

1
Out of stock

12

.BULB (12V5W)

09471-12216

1
Out of stock

13

LENS

35912-14F11

1
Out of stock

14

REFLECTOR ASSY, RR SIDE

35970-14A20

1
Out of stock

15

NUT, REAR

08316-1005B

2
Out of stock

16

REFLECTOR ASSY, REAR

35970-05H00

1
Out of stock

17

NUT

08313-2005B

—
Out of stock

18

CUSHION, REAR COMB | 15X70X20

33652-05H00

—
Out of stock
