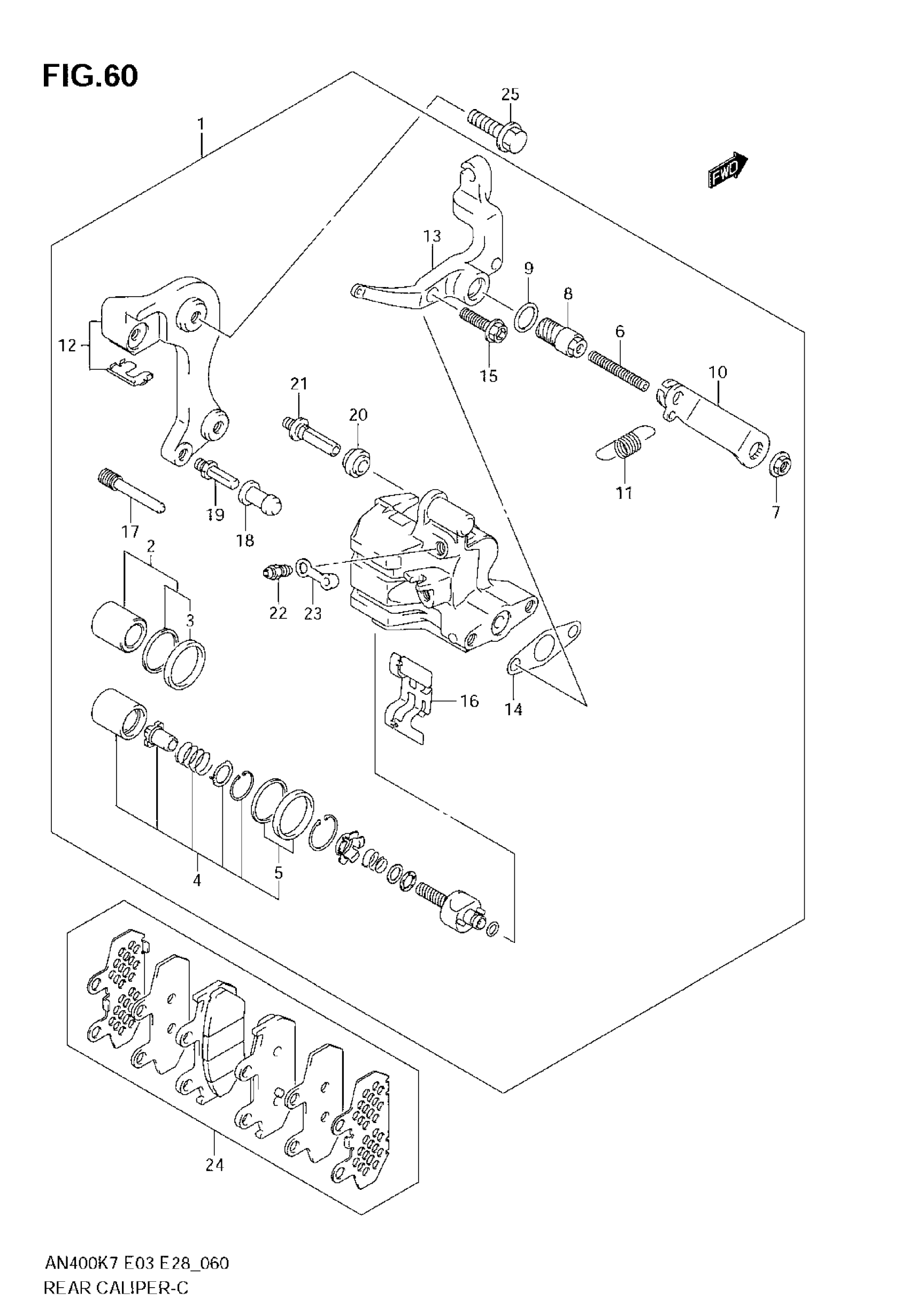

Suzuki AN400 (2008) REAR CALIPER Diagram

#

Description
Price

1

CALIPER ASSY RE | Includes Item(s) 2 - 23 This part replaces 69100-05H00-999.

69100-05H01-999

$767.82

2

PISTON SET

69100-10830

$46.50

3

SEAL SET, PISTON

69100-36810

$9.03

4

PISTON SET

69100-43810

$36.64

5

SEAL SET, PISTON

69100-36810

$9.03

6

BOLT

69127-10G00

$17.43

7

NUT

69123-14F40

$6.55

8

SHAFT

69124-10G00

Unavailable

9

O RING

69122-14F40

Unavailable

10

ARM

69125-05H00

$20.43

11

SPRING, RETURN

69128-14F00

$6.30

12

BRACKET

69150-05H00

Unavailable

13

PARKING

69120-05H00

Unavailable

14

PACKING

69126-14F40

$5.83

15

BOLT (8X25)

69121-14F00

Unavailable

16

SPRING, PAD

69115-10G00

$18.35

17

PIN, HANGER

59345-13E00

$14.34

18

BOOT

59386-13A00

$7.95

19

BOLT

59382-27C30

$9.07

20

BOOT

59303-14500

$5.52

21

PIN

59305-27C00

$23.48

22

BLEEDER

59121-01A00

$8.73

23

CAP, BLEEDER

59122-01A00

$4.34

24

PAD & SHIM SET

69100-10840

$56.58

25

BOLT, REAR CALIPER

01550-0830A

$3.04
