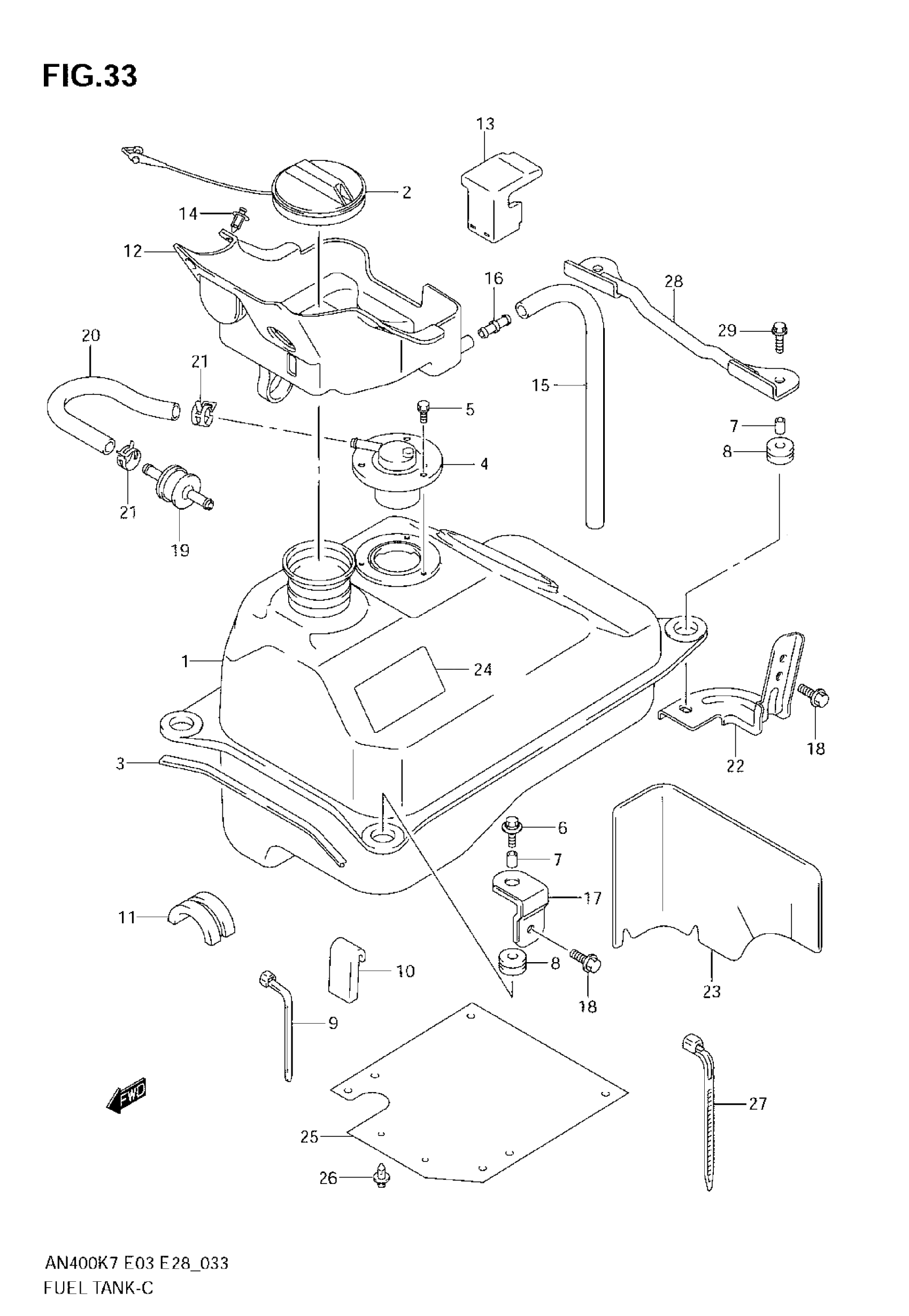

Suzuki AN400 (2008) FUEL TANK Diagram

TANK, FUEL This part replaces 44110-05H00.

44110-05H31

$531.33

CAP SET,FUEL TANK

44200-14840

$175.18

MOLDING

68241-04X50-300

$7.32

VALVE, FUEL CUT | MODEL K7

89485-65D00

$90.23

VALVE,FUEL CUT | MODEL K8

89480-52DA0

$63.60

BOLT This part replaces 09117-05003.

01570-0510B

$2.53

BOLT

09116-06147

$3.20

SPACER

09180-06267

$4.10

CUSHION,FUEL TANK SIDE This part replaces 44512-04F00.

44512-04F01

$3.86

CLAMP

09407-25402

$4.64

CUSHION, TANK LOWER RH

44541-14F00

Unavailable

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

TRAY, TANK INLET

44260-05H00

Unavailable

CUSHION

44262-05H00

$15.97

CLIP, TRAY

09409-07333

$2.31

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

JOINT

09367-08001

$4.17

BRACKET,FUEL TANK FRONT

44531-05H00

Unavailable

BOLT

01550-0610B

$2.42

VALVE,2 WAY CHECK

85451-75100

$46.78

HOSE, CHECK VALVE | MODEL K7

44434-05H00

Unavailable

HOSE, CHECK VALVE | MODEL K8

44434-05H10

$38.37

CLIP (ID:10.5,H:8)

09401-10409

$2.26

BRACKET, REAR LH

44560-05H00

Unavailable

SHIELD,FUEL TANK HEAT

44191-05H00

Unavailable

TAPE,FUEL TANK SIDE

44192-05H00

$27.12

SHEET, FUEL TRAY

44193-05H01

Unavailable

CLIP (BLACK)

09409-06314-5PK

$2.78

CLAMP

09407-18402

$2.19

BRACKET, FUEL TANK REAR

44500-05H00

Unavailable

BOLT

01550-0625A

$1.97
