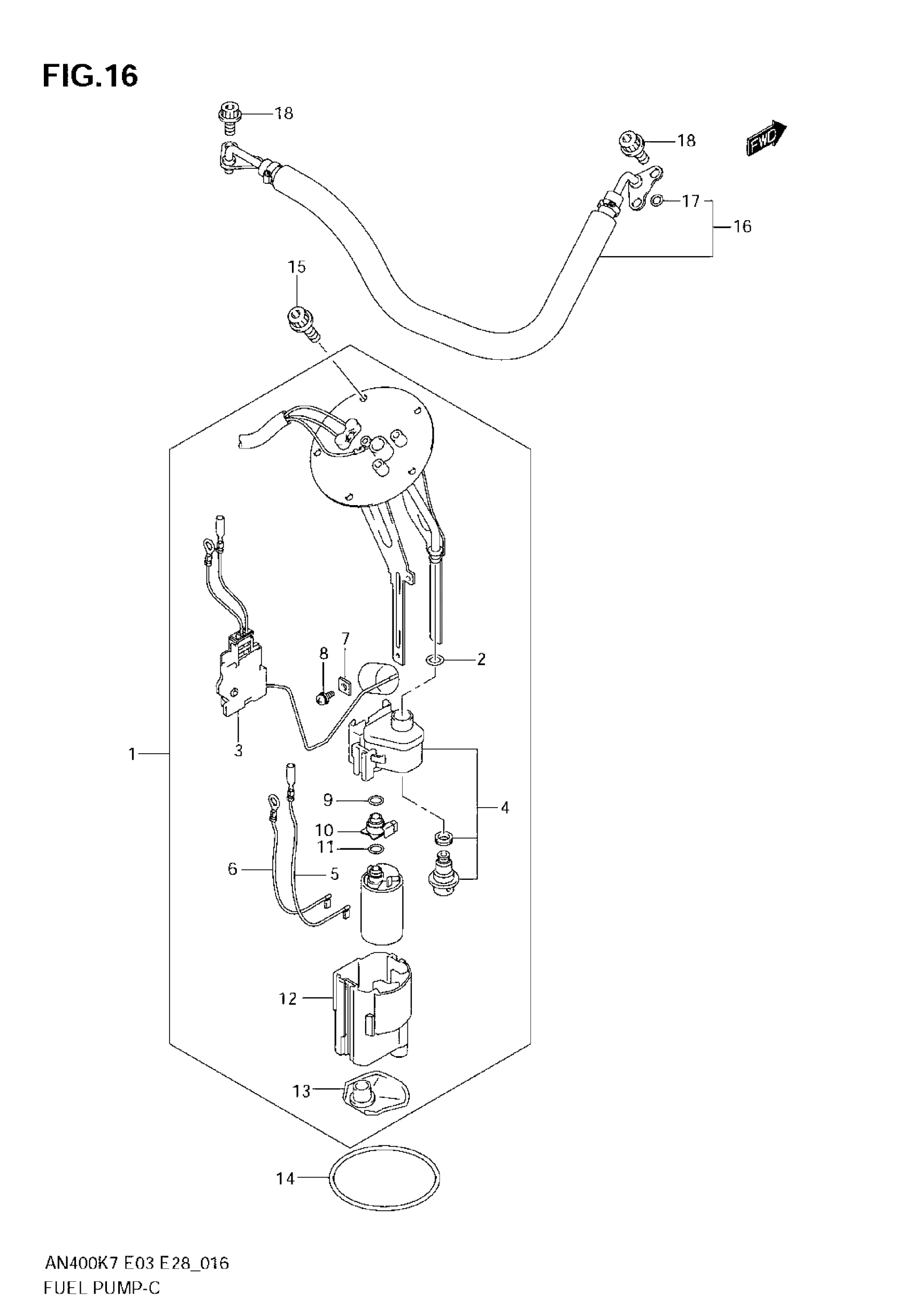

Suzuki AN400 (2008) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL | Includes Item(s) 2 - 13 This part replaces 15100-05H00.

15100-05H11

$355.74

2

O RING

15113-35F00

$8.91

3

GAUGE ASSY

34810-05H00

$220.03

4

REGULATOR

15610-05H00

Unavailable

5

WIRE, LEAD

15115-05H00

Unavailable

6

WIRE, EARTH

15114-05H00

Unavailable

7

STOPPER

15117-05H00

$7.53

8

SCREW

15116-10F00

$5.58

9

O RING

15113-05H00

$19.98

10

JOINT

15112-05H00

$28.12

11

O RING

15113-05H00

$19.98

12

CUP

15111-05H00

Unavailable

13

STRAINER

15420-05H00

$41.17

14

O-RING

15201-35F00

$27.60

15

BOLT

07120-0612A

$2.50

16

HOSE, FUEL | Includes Item(s) 17 This part replaces 15810-05H00.

15810-05H10

$162.72

17

O RING

15817-14G00

$4.52

18

BOLT

07130-0610A

Unavailable
