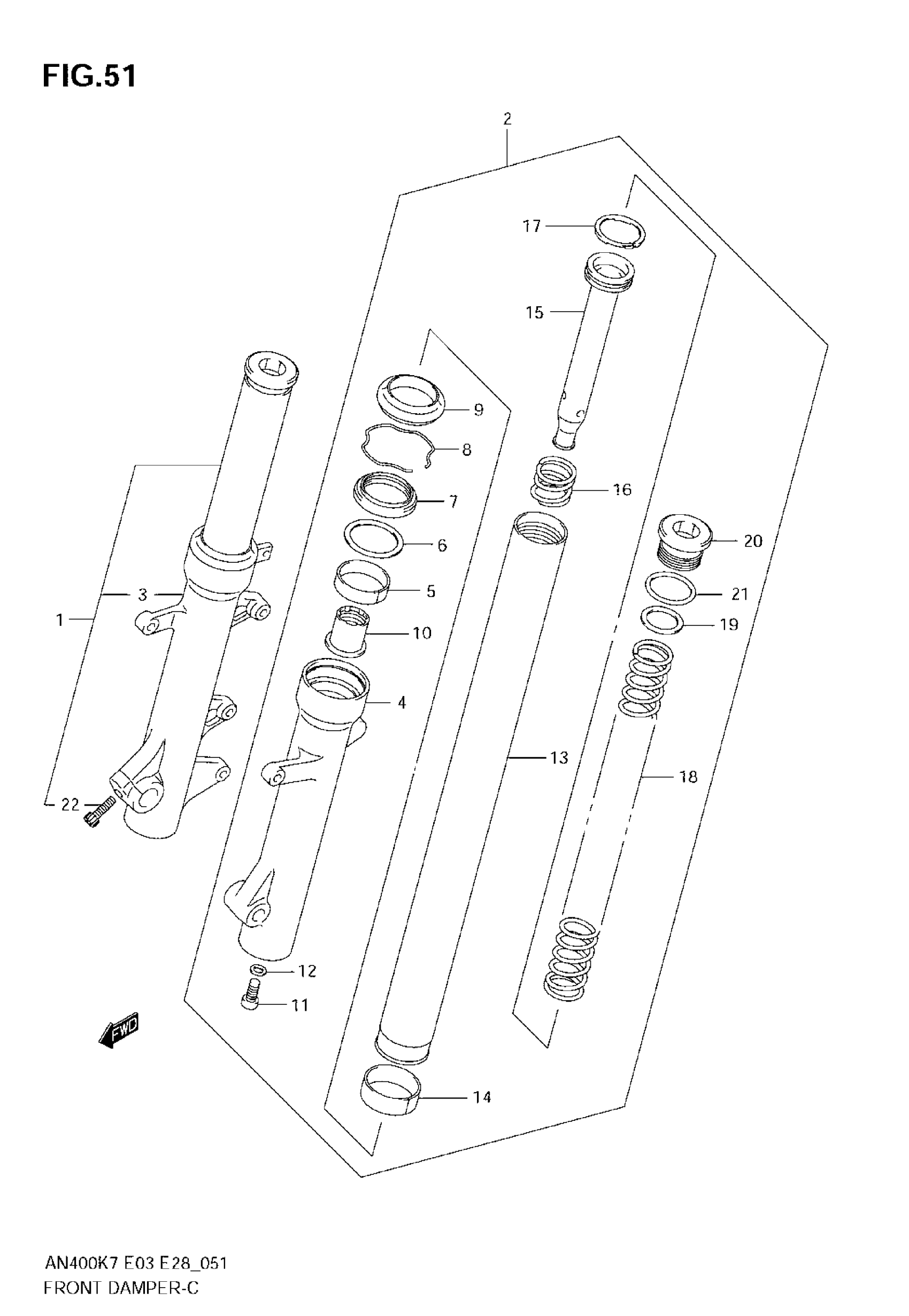

Suzuki AN400 (2008) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK, RH

51103-05H00

Unavailable

2

DAMPER ASSY, FRONT FORK, LH | Includes Item(s) 3 - 22

51104-05H00

Unavailable

3

TUBE, OUTER, RH

51130-05H00

Unavailable

4

TUBE, OUTER, LH

51140-05H00

Unavailable

5

METAL, SLIDE

51167-26E10

$24.52

6

WASHER

51158-05A00

$5.83

7

SEAL, OIL

51153-10G50

$20.70

8

RING, OIL SEAL STOPPER

51156-49440

$5.05

9

SEAL, DUST

51173-14F00

$23.07

10

PIECE, OIL LOCK

51195-33D10

$26.20

11

BOLT, FORK CYLINDER

51147-05H00

$5.40

12

GASKET

51148-41310

$2.26

13

TUBE, INNER

51110-05H00

$349.58

14

PISTON

51121-33D10

$18.90

15

CYLINDER

51146-05H00

Unavailable

16

SPRING, REBOUND

51177-14F70

Unavailable

17

RING, PISTON

51196-14F51

Unavailable

18

SPRING, FRONT

51171-05H00

$55.35

19

WASHER, STEM HEAD (24.5X34X1.6)

51356-27C00

$6.75

20

CAP, FORK

51351-14F20

Unavailable

21

O RING

09280-32001

$2.06

22

BOLT | RH

51328-05H00

$5.75
