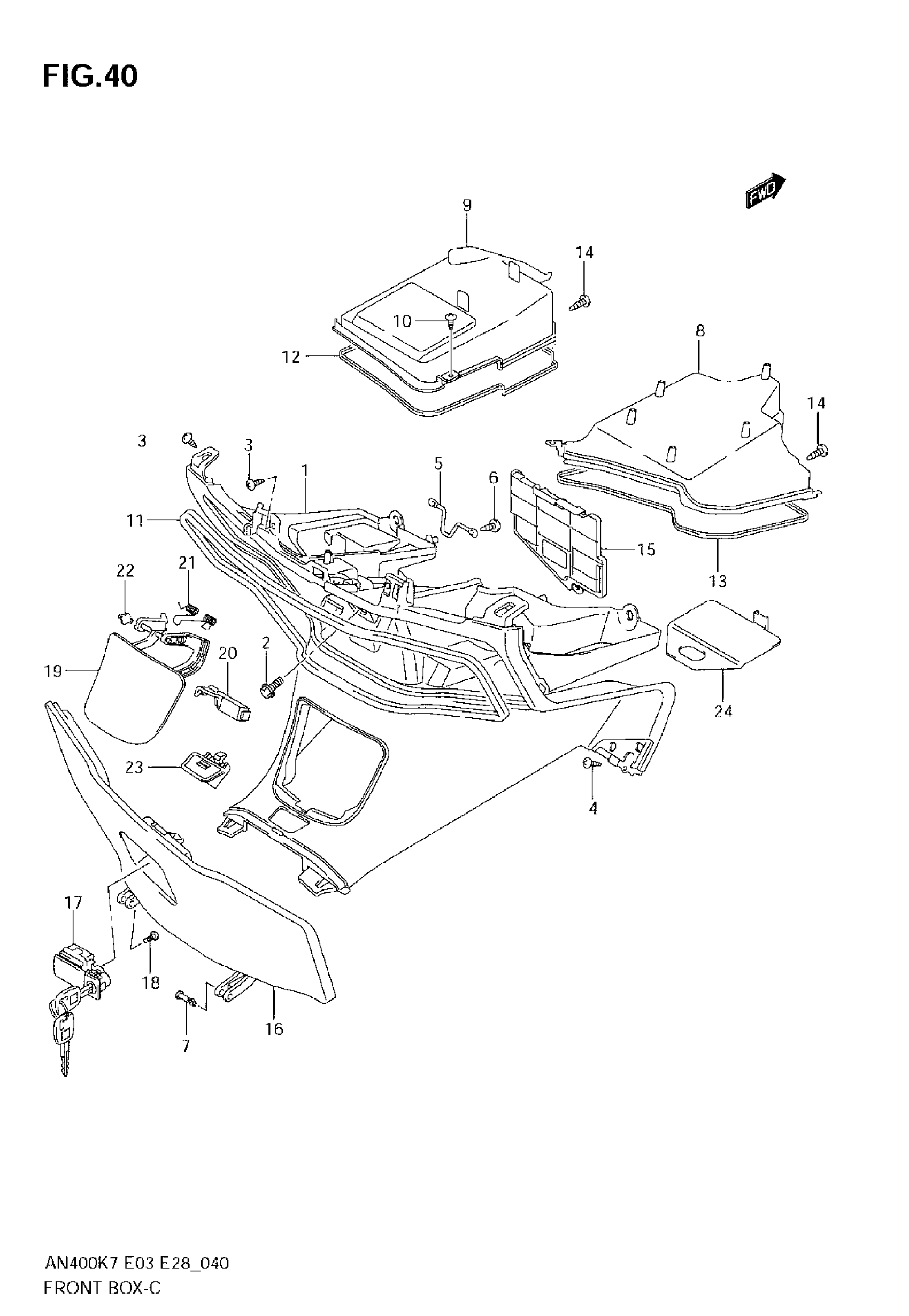

Suzuki AN400 (2008) FRONT BOX Diagram

#

Description
Price

1

BOX, FRONT (BLACK)

92111-05H11-291

$280.60

2

BOLT | MODEL K7 This part replaces 09116-06173.

09116-06205

$2.63

2

BOLT | MODEL K8

09116-06205

$2.63

3

SCREW

03541-0516A

$1.49

4

SCREW

09132-05053

$2.28

5

STRIKER, FRONT BOX

92171-05H00

Unavailable

6

SCREW

03541-0516A

$1.49

7

PIN, BOX HINGE

73423-50G00

$5.10

8

COVER, BOX INNER RH (BLACK) | MODEL K7 This part replaces 92112-05H00-291.

92112-05H02-291

Unavailable

8

COVER, BOX INNER RH (BLACK) | MODEL K8 This part replaces 92112-05H00-291.

92112-05H02-291

Unavailable

9

COVER, BOX INNER LH (BLACK) This part replaces 92113-05H00-291.

92113-05H01-291

Unavailable

10

SCREW

03541-0512A

$1.49

11

CUSHION, BOX NO.1

92114-05H00

Unavailable

12

CUSHION, INNER This part replaces 92115-14G00.

92116-05H00

$5.99

13

CUSHION, INNER

92116-05H00

$5.99

14

SCREW

03541-0616A

$2.02

15

LID, BATTERY BOX (BLACK) This part replaces 92191-05H00-291.

92191-05H01-291

$24.15

16

LID, FRONT BOX (BLACK) This part replaces 92120-05H00-291.

92120-05H10-291

$192.67

17

LOCK SET, FRONT BOX

92100-10841

$166.35

18

SCREW

02142-0512B

$2.05

19

LID, FUEL (BLACK)

92161-05H00-291

$42.45

20

LOCK,FUEL LID ARM

92162-14G01

$13.85

21

SPRING, FUEL LID This part replaces 92163-14G00.

92163-14G01

$11.90

22

DAMPER,FUEL LID

92164-14G00

$14.77

23

LOCK,FUEL LID (BLACK) This part replaces 92180-05H00-291.

92180-05H01-291

$23.63

24

PLATE, ELECTRIC PARTS

47412-14G01

$17.70
