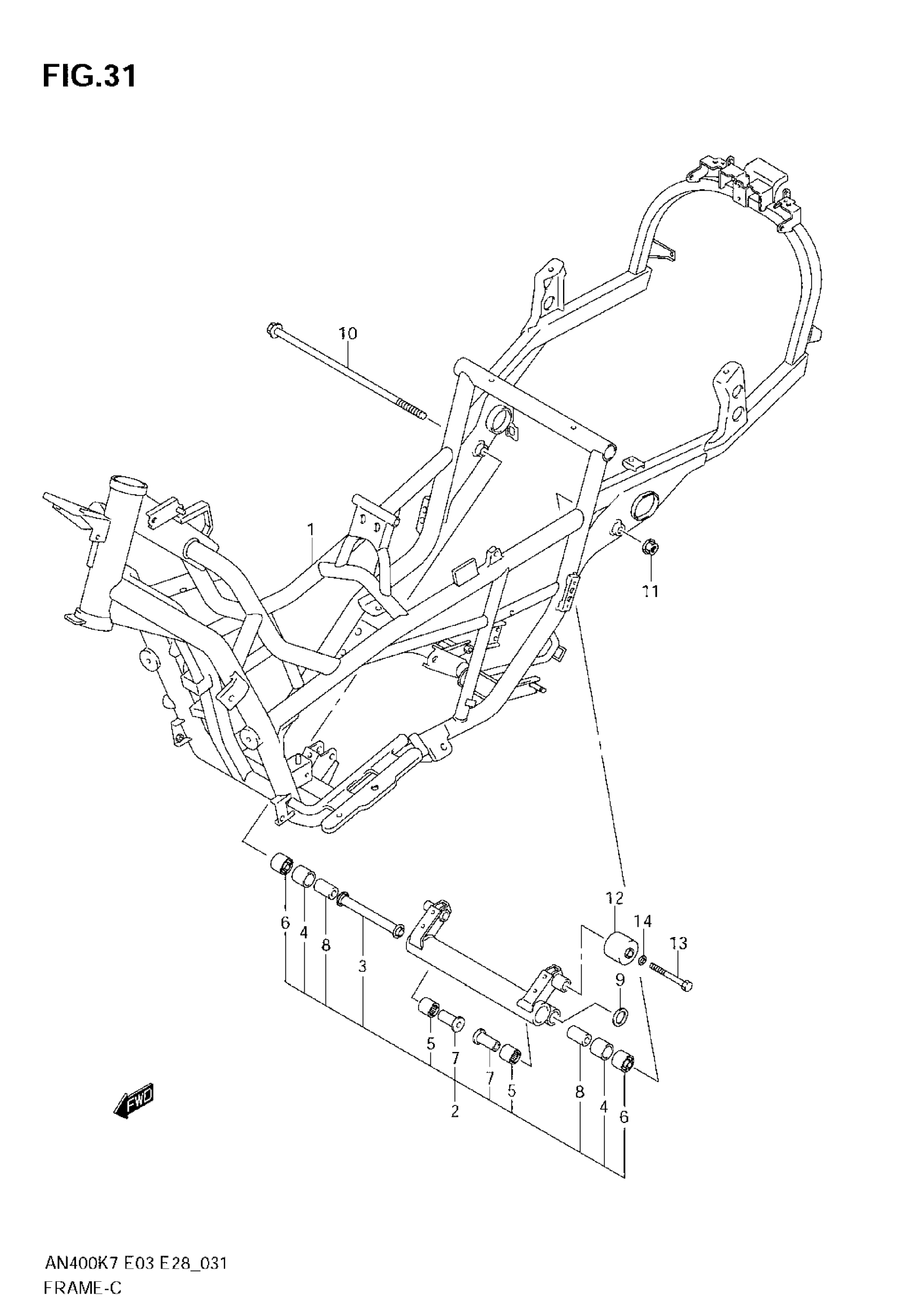

Suzuki AN400 (2008) FRAME Diagram
#
Description
Price
1
NO DESCRIPTION AVAILABLE | MODEL K7 This part replaces 41100-05H00.
41100-05H02
Unavailable
1
FRAME | MODEL K8
41100-05H10
Unavailable
2
BRACKET SET, CRANKCASE | MODEL K7
41180-05850
Unavailable
2
BRACKET SET, CRANKCASE | MODEL K8; Includes Item(s) 3 - 8
41180-05852
Unavailable
3
SPACER, BRACKET
42610-05H00
Unavailable
4
BEARING
09263-25063
Unavailable
7
SPACER, ENGINE This part replaces 41214-14F00.
41214-14F10
Unavailable
8
SPACER, BRACKET
41213-14F00
Unavailable
10
BOLT
09103-12086
Unavailable
12
CUSHION,SWING STOP
41185-14F00
Unavailable
13
BOLT
09103-12065
Unavailable
