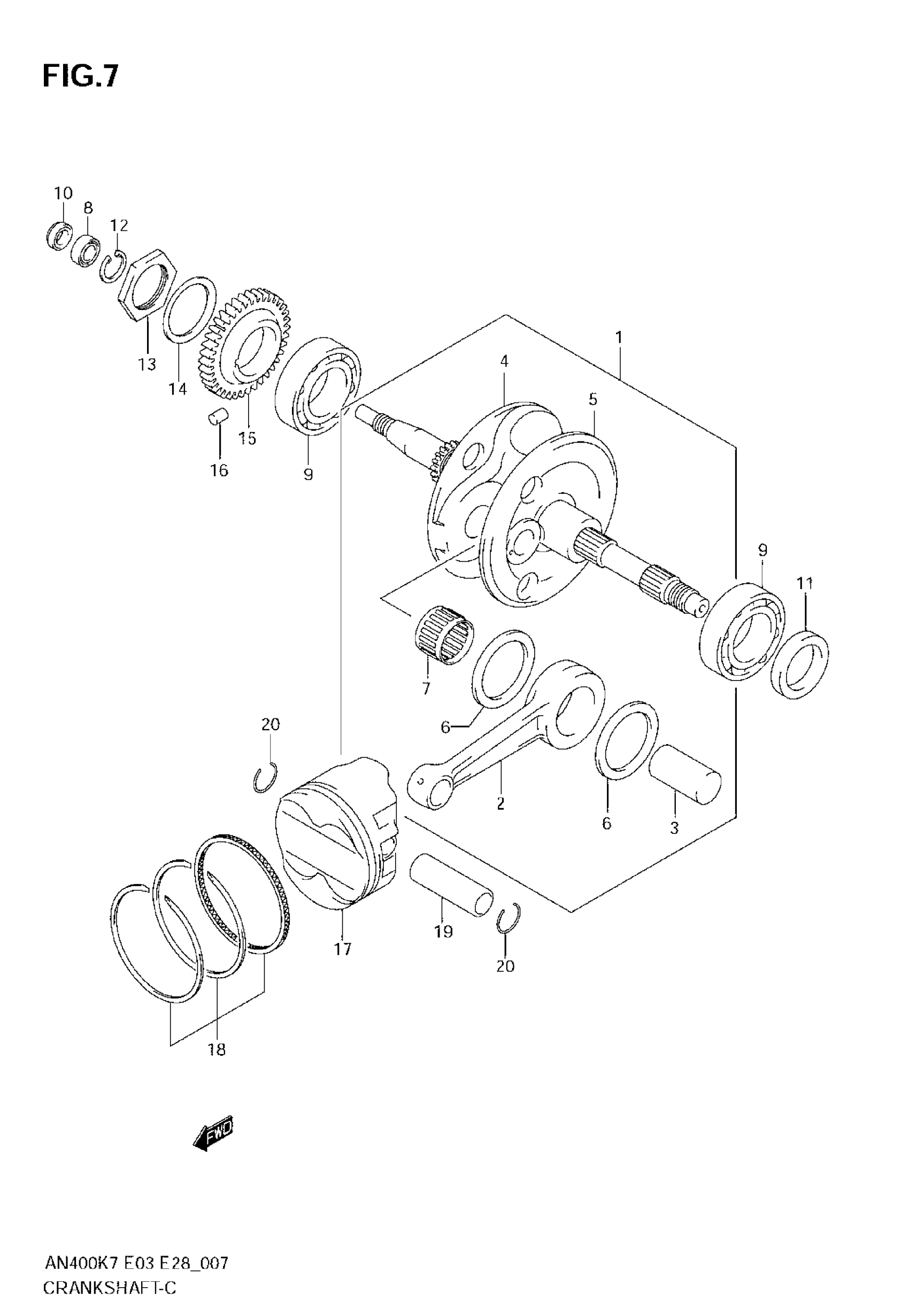

Suzuki AN400 (2008) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7 This part replaces 12200-05H00.

12200-05H10

$787.82

2

.CONNROD This part replaces 12161-05H00.

12161-05H10

Unavailable

3

PIN, CRANK

12210-15F10

Unavailable

4

CRANKSHAFT, RH

12220-05H00

Unavailable

5

CRANKSHAFT, LH

12260-05H00

Unavailable

6

WASHER

09160-35005

$9.32

7

BEARING (35X45X22)

09263-35034

$70.51

8

BEARING (12X32X10)

09262-12016

Unavailable

9

BEARING (35X72X17)

09262-35038

$46.10

10

OIL SEAL (12X29X6)

09282-12011

$18.58

11

OIL SEAL (34X52X6)

09283-34011

$29.25

12

CIRCLIP This part replaces 08331-41326.

08331-41329

$2.42

13

NUT

12664-24B01

$15.42

14

WASHER

09164-35002

Unavailable

15

GEAR, CRANK BALANCER DRIVE

12661-05H00

Unavailable

16

PIN

09261-05005

$1.49

17

PISTON

12111-05H00-0F0

Unavailable

18

RING SET, PISTON

12140-05H00

$110.67

19

PIN,PISTON

12151-05A00

$15.61

20

CIRCLIP

09381-20004

$1.65
