2008 Suzuki AN400 Camshaft/valve Diagram

← All diagrams

Find the part on the Camshaft/valve diagram for your 2008 Suzuki AN400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

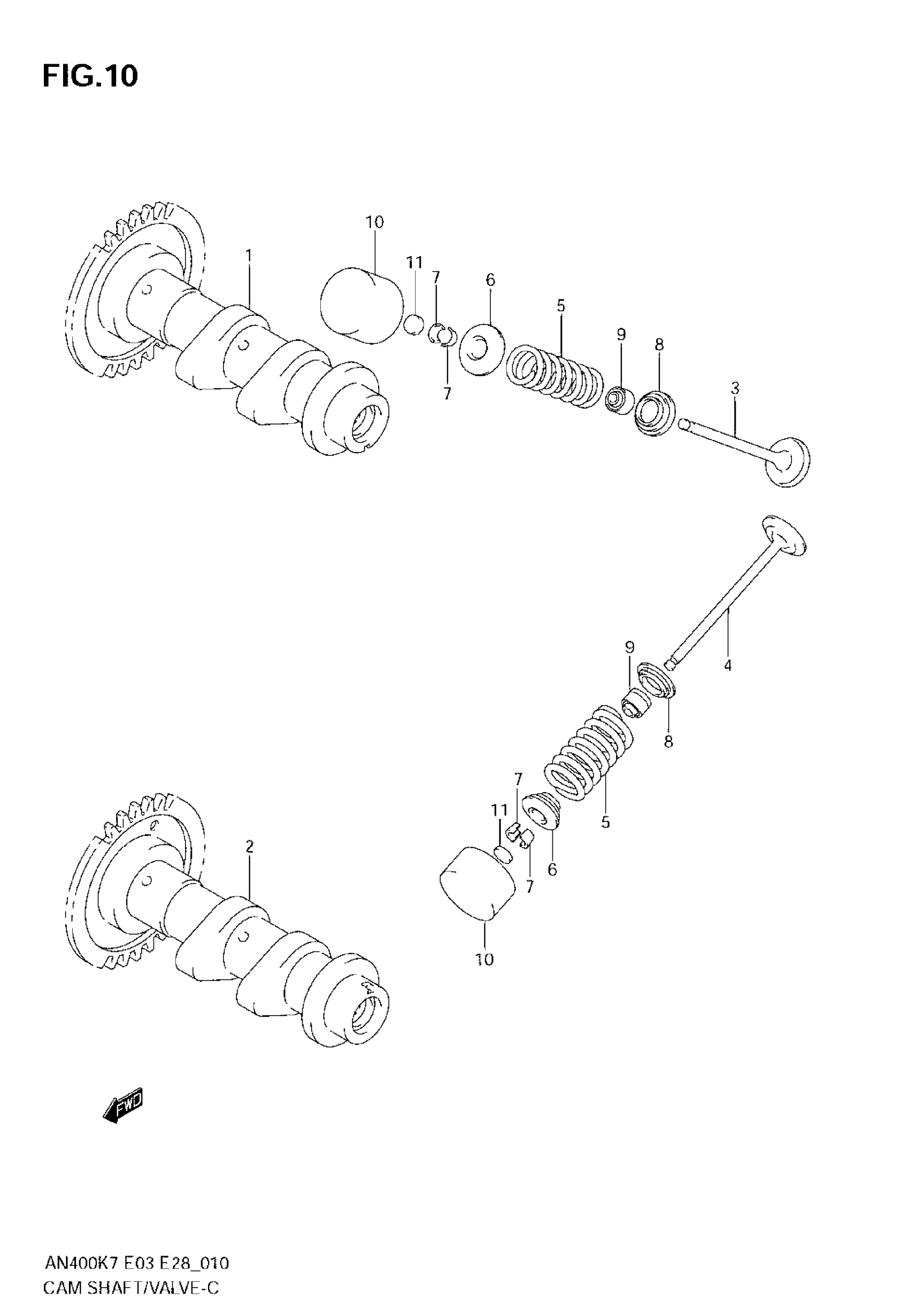

2008 Suzuki AN400 Camshaft/valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAMSHAFT, INTAKE

12710-05H00

1
Out of stock

2

CAMSHAFT, EXHAUST

12720-05H00

1
Out of stock

3

VALVE,INTAKE

12911-05H00

2
Out of stock

4

VALVE,EXHAUST

12912-05H00

2
Out of stock

5

SPRING, VALVE

12921-05H00

4
Out of stock

6

RETAINER,VALVE SPRING

12931-10G00

4
Out of stock

7

COTTER, VALVE

12932-32C00

8
Out of stock

8

SEAT,VALVE SPRING

12933-39E00

4
Out of stock

9

SEAL, VALVE STEM OIL

09289-04002

4
Out of stock

10

TAPPET This part replaces 12891-17E00.

12891-47H00

4
Out of stock

11

SHIM, TAPPET (T:1.20)

12892-05C00-120

4
Out of stock

11

SHIM, TAPPET (T:1.25)

12892-05C00-125

4
Out of stock

11

SHIM, TAPPET (T:1.30)

12892-05C00-130

4
Out of stock

11

SHIM, TAPPET (T:1.35)

12892-05C00-135

4
Out of stock

11

SHIM, TAPPET (T:1.40)

12892-05C00-140

4
Out of stock

11

SHIM, TAPPET (T:1.45)

12892-05C00-145

4
Out of stock

11

SHIM, TAPPET (T:1.50)

12892-05C00-150

4
Out of stock

11

SHIM, TAPPET (T:1.55)

12892-05C00-155

4
Out of stock

11

SHIM, TAPPET (T:1.60)

12892-05C00-160

4
Out of stock

11

SHIM, TAPPET (T:1.65)

12892-05C00-165

4
Out of stock

11

SHIM, TAPPET (T:1.70)

12892-05C00-170

4
Out of stock

11

SHIM, TAPPET (T:1.75)

12892-05C00-175

4
Out of stock

11

SHIM, TAPPET (T:1.80)

12892-05C00-180

4
Out of stock

11

SHIM, TAPPET (T:1.85)

12892-05C00-185

4
Out of stock

11

SHIM, TAPPET (T:1.90)

12892-05C00-190

4
Out of stock

11

SHIM, TAPPET (T:1.95)

12892-05C00-195

4
Out of stock

11

SHIM, TAPPET (T:2.00)

12892-05C00-200

4
Out of stock

11

SHIM, TAPPET (T:2.05)

12892-05C00-205

4
Out of stock

11

SHIM, TAPPET (T:2.10)

12892-05C00-210

4
Out of stock

11

SHIM, TAPPET (T:2.15)

12892-05C00-215

4
Out of stock

11

SHIM, TAPPET (T:2.20)

12892-05C00-220

4
Out of stock

12

SHIM SET, TAPPET INC.REF.NO.11-1%11-21 (5PCS.EACH) & NO.13 | OPT NOT SHOWN; Includes Item(s) 13

12800-05830

1
Out of stock

13

CASE, TAPPET SHIM | OPT NOT SHOWN

99000-69491

1
Out of stock
