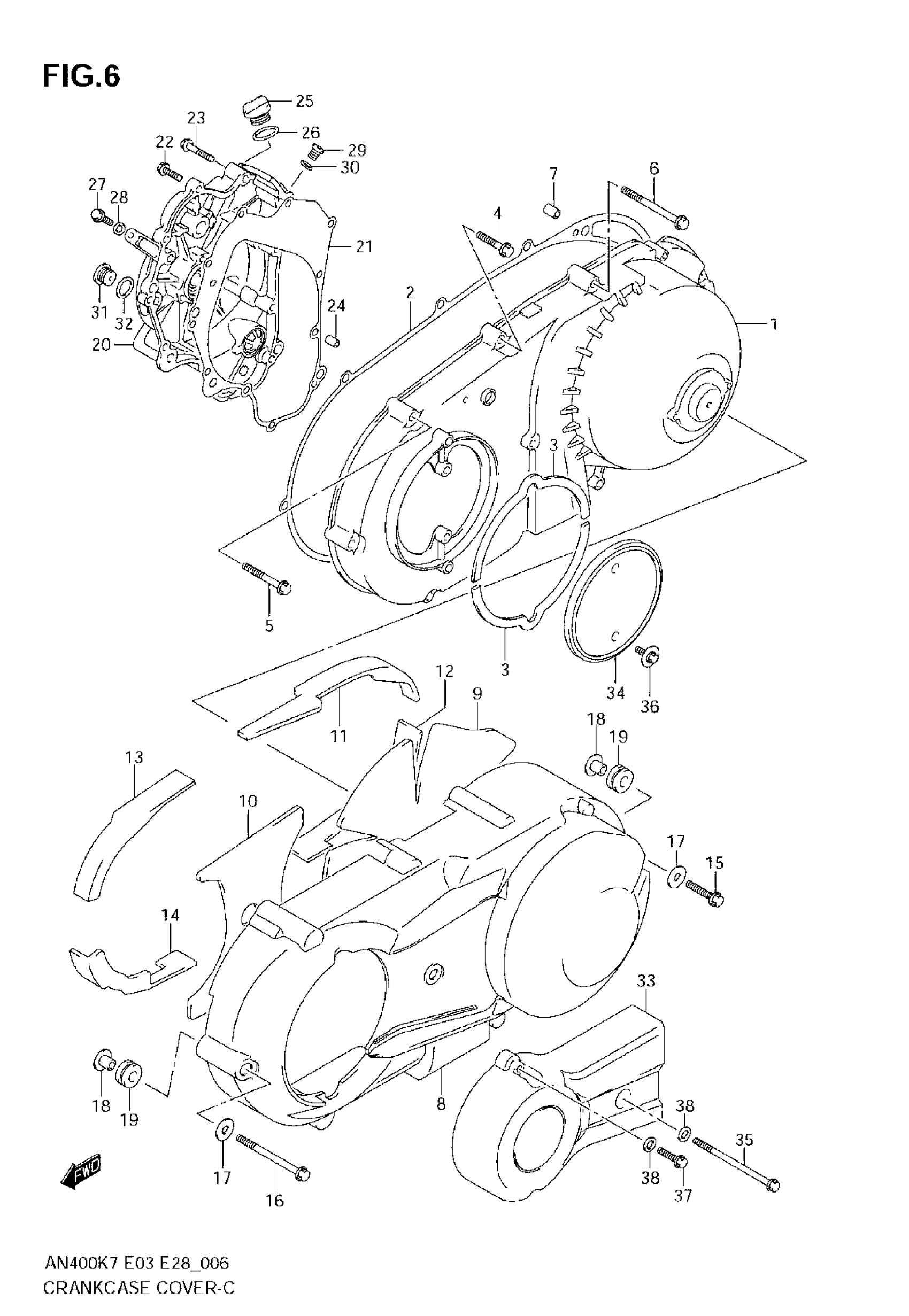

Suzuki AN400 (2008) CRANKCASE COVER Diagram

#

Description
Price

1

COVER,CLUTCH INNER

11341-05H00

$429.22

2

GASKET

11482-05H00

$74.58

3

CUSHION, COOLING DUCT

11485-05H00

$6.75

4

BOLT

01547-0630A

$2.31

5

BOLT

01547-0645A

$2.43

6

BOLT

01547-0675A

$3.67

7

PIN

04211-09149

$1.64

8

COVER,CLUTCH OU This part replaces 11371-05H00.

11371-05H21

$143.60

9

CUSHION, COVER NO.1

11486-05H00

$70.52

10

CUSHION, COVER NO.2

11487-05H00

$27.67

11

CUSHION, COVER NO.3

11488-05H00

$18.22

12

CUSHION, COVER NO.4

11489-05H00

$14.00

13

CUSHION, COVER NO.5

11491-05H00

$13.30

14

CUSHION, COVER NO.6

11492-05H00

$14.98

15

BOLT

01547-0625A

$2.01

16

BOLT

01547-0660A

$2.80

17

WASHER (6.5X18X1.0)

09160-06028

$1.43

18

SPACER

09169-06062

$2.50

19

CUSHION

09320-09016

$1.97

20

COVER, MAGNETO

11350-05H00

Unavailable

21

GASKET

11483-05H00

$21.17

22

BOLT (6X25)

09103-06212

$2.53

23

BOLT (6X40)

09103-06215

$2.80

24

PIN

04211-09149

$1.64

25

PLUG,ENGINE OIL FILLER

11971-25D00

$4.67

26

O RING (D:3.1,ID:16.8)

09280-17003

$1.64

27

PLUG, OIL GALLERY

01547-0612A

$2.01

28

GASKET (ID:5.8,OD:13)

09168-06023

$2.01

29

PLUG, OIL GALLERY

09248-10010

$3.82

30

GASKET (ID:9.9,OD:14)

09168-10002

$1.96

31

PLUG, TDC

09248-16012

$4.19

32

GASKET (ID:16,OD:22)

09168-16002

$1.89

33

DUCT, BELT COOLING

11380-05H10

Unavailable

34

FILTER

11388-10G00

$19.05

35

BOLT (6X95)

09103-06227

$4.53

36

BOLT (6X16)

09116-06170

$2.50

37

BOLT

01547-0620A

$2.01

38

WASHER

08322-01067

$1.86
