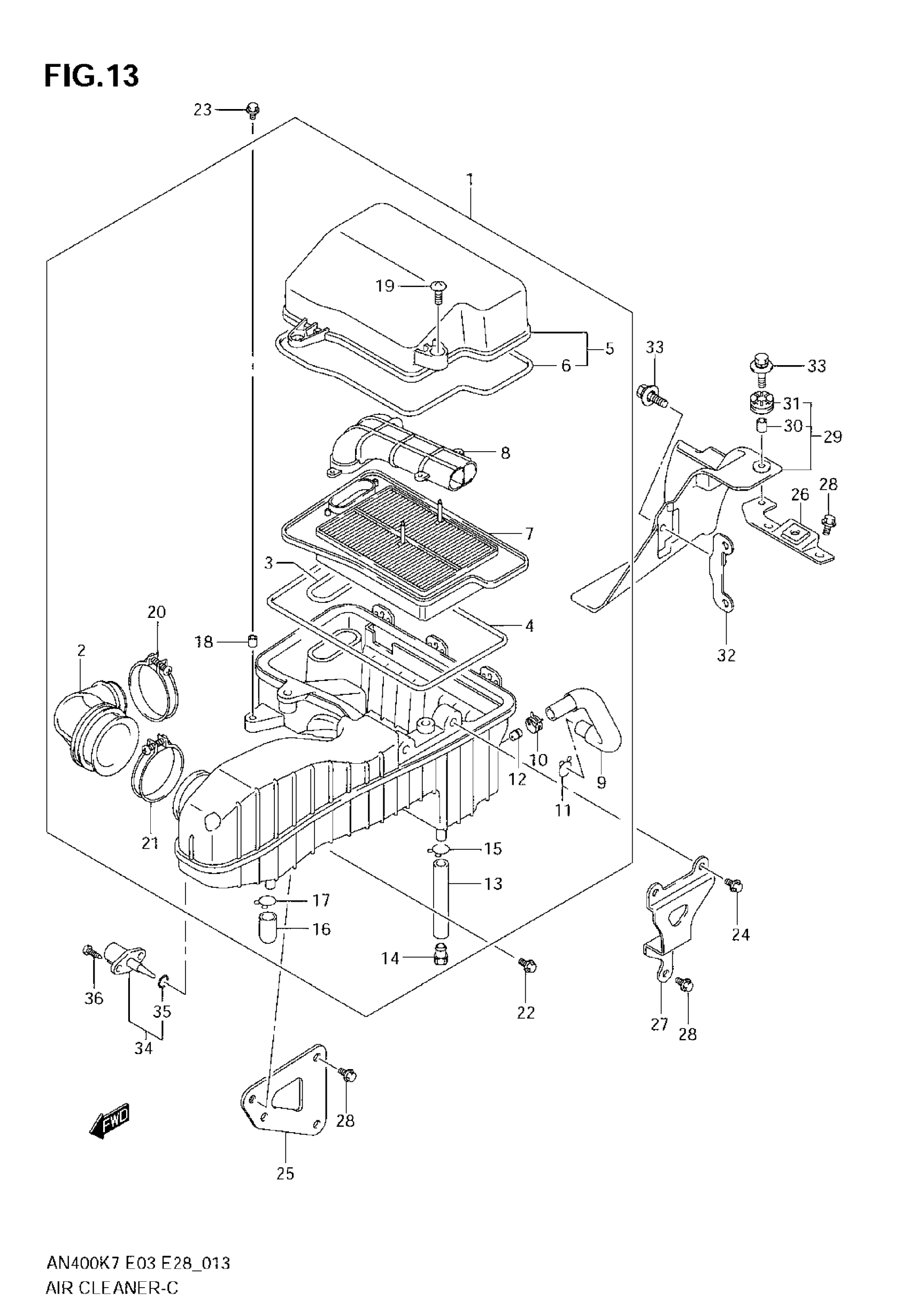

Suzuki AN400 (2008) AIR CLEANER Diagram

#

Description
Price

1

CLEANER ASSY, AIR | Includes Item(s) 2 - 21

13700-05H00

Unavailable

2

TUBE,OUTLET This part replaces 13881-05H00.

13881-05H01

$28.77

3

GASKET, FILTER

13747-05H00

Unavailable

4

GASKET, CASE

13746-05H00

Unavailable

5

CAP This part replaces 13740-05H00.

13740-05H01

$47.77

6

GASKET, CAP

13746-05H00

Unavailable

7

FILTER

13781-05H00

$66.18

8

TUBE, INLET

13891-05H00

$32.17

9

TUBE,BREATHER This part replaces 13853-05H00.

13853-05H01

$29.72

10

CLIP

09401-15404

$2.26

11

CLIP

09401-15101

$2.26

12

.JET,BREATHER This part replaces 13859-14D40.

13859-14D41

$4.40

13

TUBE, DRAIN

13871-05H00

Unavailable

14

STOPPER

13877-00190

$5.32

15

CLIP

09401-14301

$2.35

16

.PLUG This part replaces 13878-10G00.

13878-10G01

$4.93

17

CLIP

09401-14301

$2.35

18

COLLAR

13912-43E60

Unavailable

19

SCREW

02142-0616A

$1.49

20

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

21

CLAMP

09402-62208

$6.58

22

BOLT

09116-06093

$2.43

23

BOLT

09116-06103

$3.15

24

BOLT

01550-0612A

$1.97

25

BRACKET, FRONT

13760-05H00

Unavailable

26

BRACKET, REAR

13760-05H20

Unavailable

27

BRACKET, LH

13760-05H10

Unavailable

28

BOLT

01550-0612A

$1.97

29

COWLING, CYLINDER | Includes Item(s) 30 - 31

17120-05H00

Unavailable

30

CUSHION

09320-10051

$2.99

31

SPACER

09180-06290

$2.35

32

BRACKET

17122-05H00

Unavailable

33

BOLT

09118-06097

$2.50

34

SENSOR, AIR TEMP | Includes Item(s) 35

13650-14G10

$52.06

35

O RING

13655-14G10

$9.90

36

SCREW

03511-0516A

$1.86
