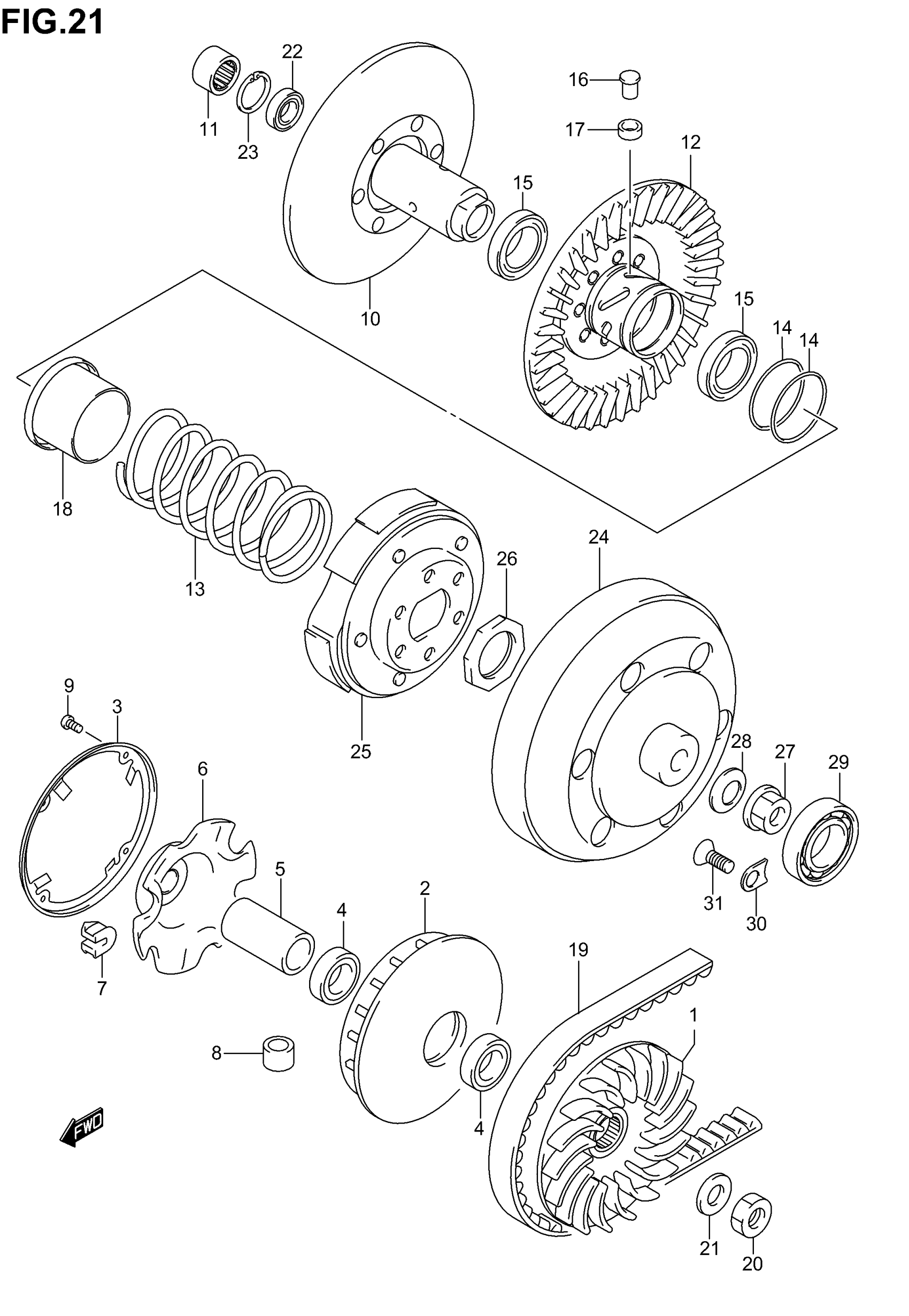

Find the part on the Transmission diagram for your 2006 Suzuki AN400, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2006 Suzuki AN400 Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FACE, FIXED DRIVE

21110-15F10

1
Out of stock

2

FACE, MOVABLE DRIVE

21120-15F10

1
Out of stock

3

COVER, MOVABLE

21122-15F10

1
Out of stock

4

SEAL,MOVABLE DRIVE FACE OIL

21124-15F00

2
Out of stock

5

SPACER, MOVABLE DRIVE

21125-15F10

1
Out of stock

6

PLATE, MOVABLE DRIVE

21431-15F00

1
Out of stock

7

DAMPER,MOVABLE DRIVE PLATE

21481-14F00

4
Out of stock

8

ROLLER,MOVABLE DRIVEN

21650-15F40

8
Out of stock

9

SCREW This part replaces 02142-04103.

02142-0410A

4
Out of stock

10

FACE, FIXED DRIVEN

21210-15F10

1
Out of stock

11

BEARING,FIXED DRIVEN RH This part replaces 21214-15F00.

21214-15F01

1
Out of stock

12

FACE, MOVABLE DRIVEN

21240-15F10

1
Out of stock

13

SPRING, MOVABLE DRIVEN

21243-15F20

1
Out of stock

14

O-RING

21245-15F00

2
Out of stock

15

SEAL, MOVABLE DRIVEN OIL

21247-15F00

2
Out of stock

16

PIN,MOVABLE DRIVEN

21248-15F01

3
Out of stock

17

SPACER,MOVABLE DRIVEN PIN

21249-15F00

3
Out of stock

18

SHEET, MOVABLE DRIVEN

21471-15F00

1
Out of stock

19

V BELT, DRIVE

27601-15F10

1
Out of stock

20

NUT

09140-18501

1
Out of stock

21

LOCK WASHER (ID:18.3) This part replaces 09164-18007.

09164-18001

1
Out of stock

22

1

$19.66

In stock

23

CIRCLIP This part replaces 08331-41376.

08331-41379

1
Out of stock

24

HOUSING, CLUTCH

21220-15F11

1
Out of stock

25

CLUTCH ASSY,SHO This part replaces 21501-15F01.

21501-15F02

1
Out of stock

26

NUT,SHOE CLUTCH

21518-15F00

1
Out of stock

27

NUT, CLUTCH HOUSING

09140-16002

1
Out of stock

28

WASHER, CLUTCH HOUSING

09164-16002

1
Out of stock

29

BEARING, CLUTCH HOUSING | 35X62X14

09262-35064

1
Out of stock

30

RETAINER, CLUTCH HOUSING

24742-44B00

2
Out of stock

31

SCREW This part replaces 02122-06163.

02122-0616A

2
Out of stock
