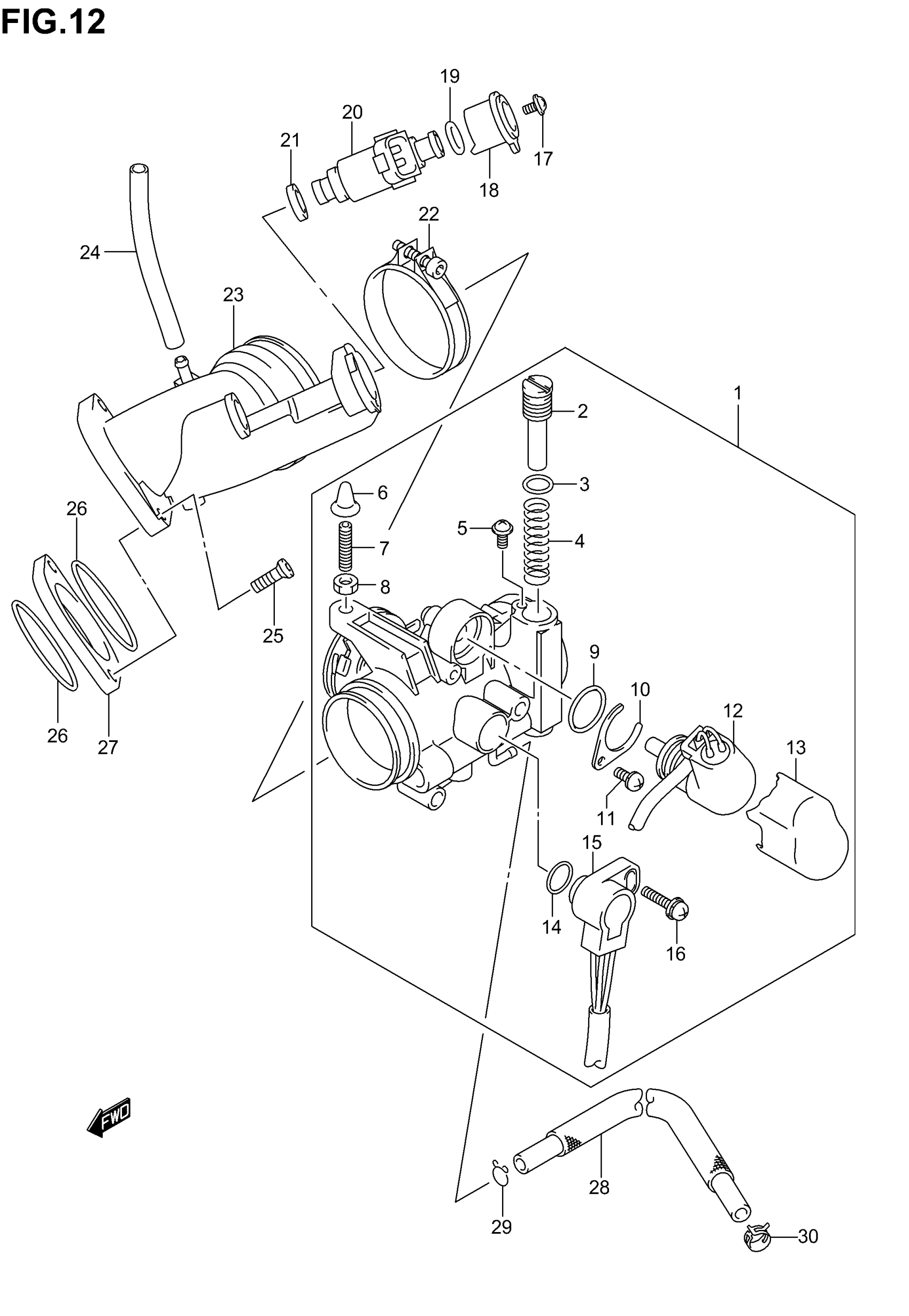

Suzuki AN400 (2006) THROTTLE BODY Diagram

#

Description
Price

1

BODY ASSY, THROTTLE | E3,E28

13401-15G01

Unavailable

1

BODY ASSY, THROTTLE | E33; Includes Item(s) 2 - 16

13401-15G11

Unavailable

2

SCREW

13269-14G00

Unavailable

3

O RING

13295-14G00

$3.17

4

SPRING

13271-14G00

Unavailable

5

SCREW

13601-14G00

$3.42

6

CAP

13688-14G00

Unavailable

7

SCREW

13267-14G00

Unavailable

8

NUT

13661-14G00

Unavailable

9

O RING

13278-10G00

$20.62

10

PLATE

13428-06F30

$7.30

11

SCREW

02112-14087

$2.58

12

VALVE,IDLE SPEE This part replaces 13420-14G01.

13420-14G02

$106.92

13

COVER

13431-15F00

Unavailable

14

O RING

13575-40F00

$3.85

15

SENSOR,THROTTLE This part replaces 13580-14G00.

13580-14G01

Unavailable

16

SCREW

13605-40F00

$3.50

17

SCREW

13601-14G00

$3.42

18

COVER

13473-14G00

$16.67

19

O-RING

15721-10G00

$8.31

20

INJECTOR

15710-10G00

$357.70

21

O RING

15722-10G00

$10.30

22

BAND

13170-15G00

$7.25

23

PIPE, INTAKE

13110-15G00

Unavailable

24

HOSE

13683-14G00

Unavailable

25

BOLT

09120-06008

$2.88

26

O-RING (D:2.4,ID:39.7) This part replaces 09280-40010.

09280-40020

$2.80

27

INSULATOR, INTAKE PIPE

13117-15G00

Unavailable

28

HOSE, CANISTER PURGE | E33

13680-14G00

Unavailable

29

CLIP | E33

09401-06101

$2.06

30

CLIP | E33

09401-08411

$1.77
