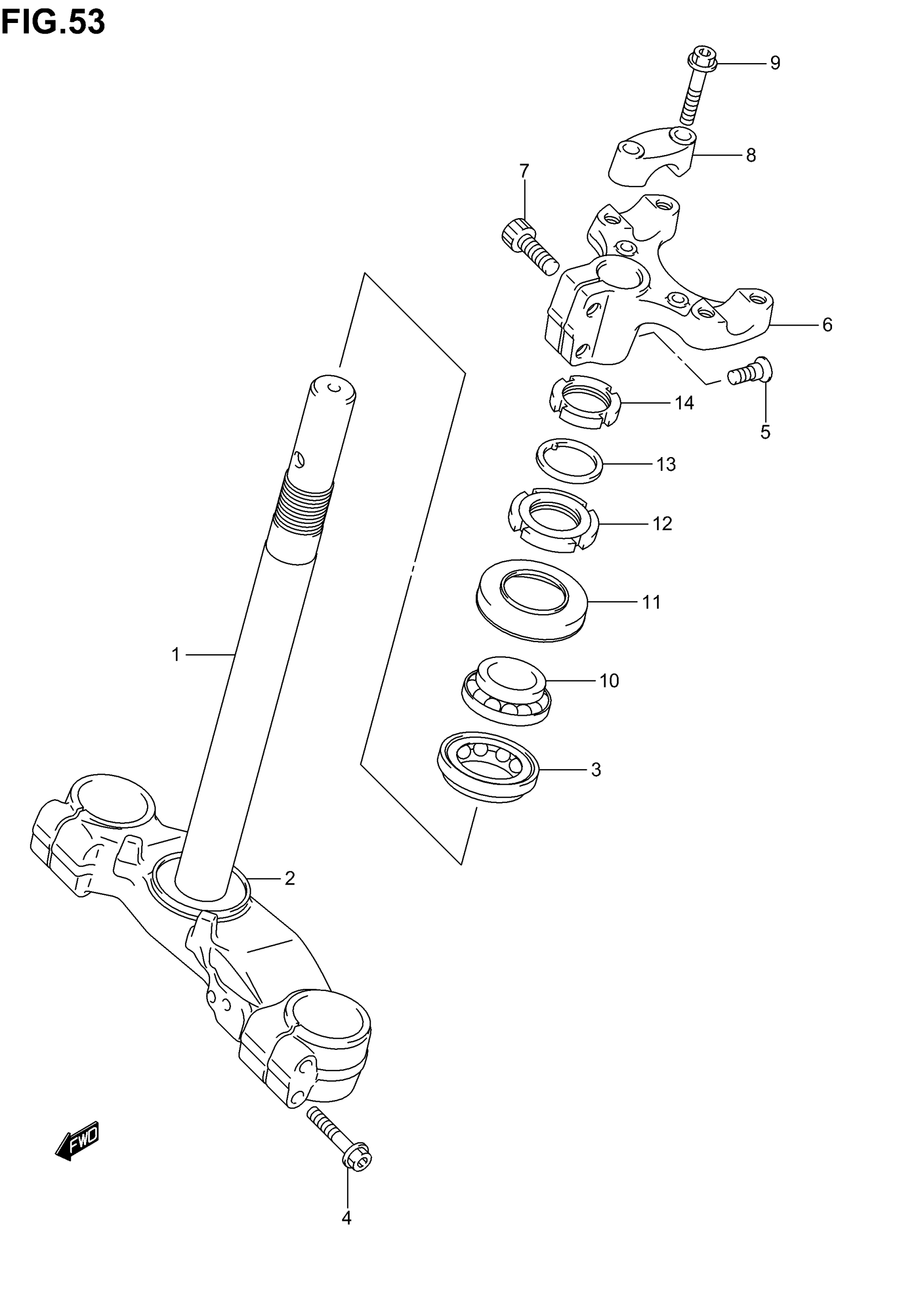

Suzuki AN400 (2006) STEERING STEM (AN400K3/K4/K5/K6) Diagram

BRACKET, FRONT FORK UNDER | Includes Item(s) 2 - 3

51410-14FD0

$850.02

SEAL, STEERING LOWER

51644-12C00

$9.44

BEARING, (30X55X17)

09267-30010

$48.11

BOLT

01550-08407

$3.42

SCREW

56123-14F10

$6.03

BRACKET, FRONT FORK, UPPER

51311-14F10

$206.78

BOLT (10X25)

09106-10067

Unavailable

HOLDER, HANDLE

56211-09F00-291

$29.37

BOLT (8X40)

09106-08122

Unavailable

BEARING (25X47X17)

09267-25009

$52.18

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

NUT, STEERING STEM (25X44)

51631-28000

$17.37

WASHER

09166-26001

$2.07

NUT, STEERING STEM LOCK

51632-02400

$16.87
