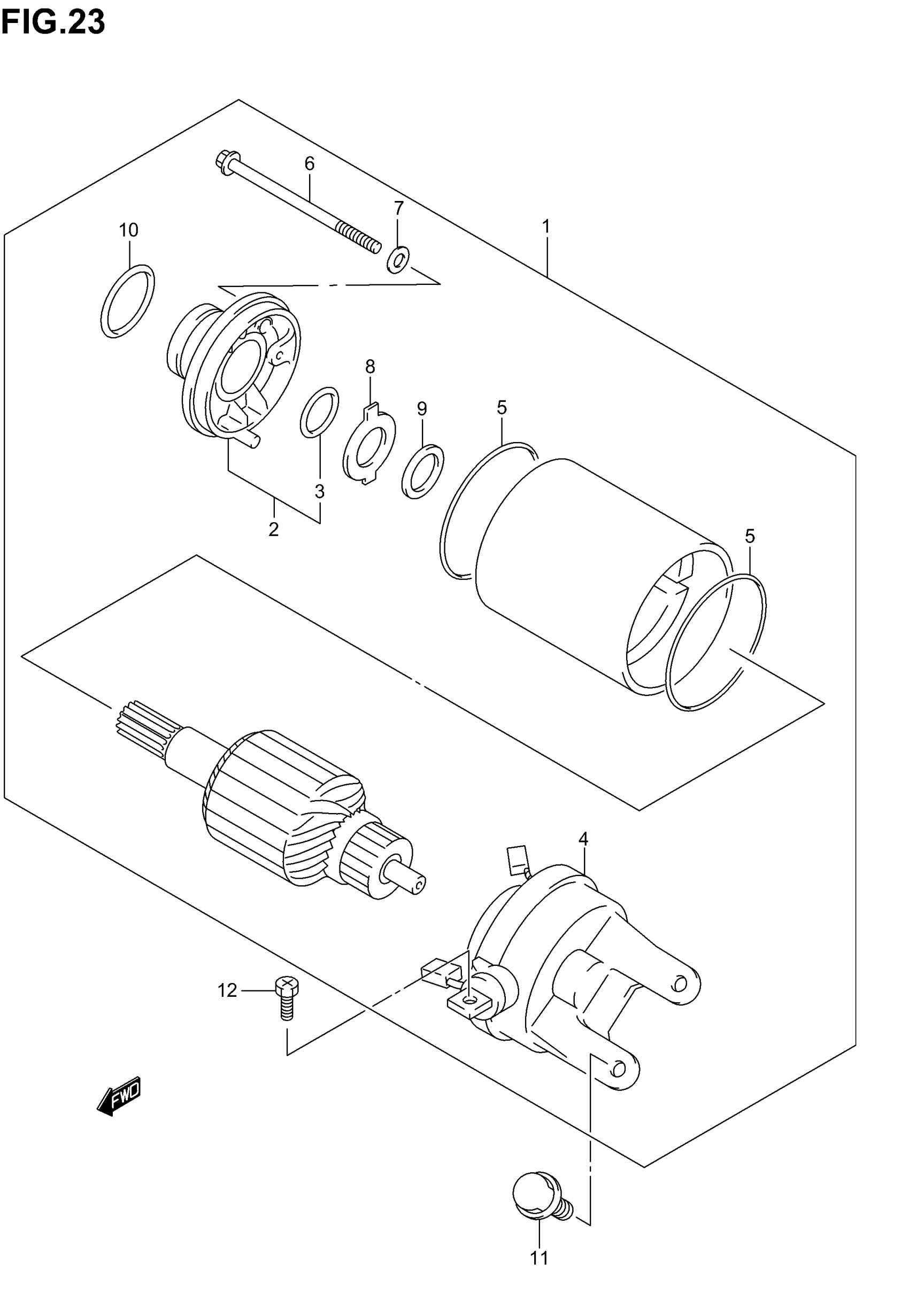

Suzuki AN400 (2006) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | Includes Item(s) 2 - 10

31100-14F01

$679.68

2

BRACKET

31150-08F00

Unavailable

3

OIL SEAL

31153-49210

$24.20

4

FRAME ASSY, COMMUTATOR, END

31175-14F00

Unavailable

5

O RING

31264-32C10

$14.20

6

BOLT

31281-08F00

Unavailable

7

O RING

31156-38300

$4.52

8

PLATE, LOCK

31361-32C10

Unavailable

9

SHIM

31361-38300

Unavailable

10

.O-RING (D:3,ID:24.5)

09280-24003

$1.55

11

BOLT This part replaces 01550-06203.

01550-0620A

$1.97

12

SCREW (5X8)

09137-05004

$2.17
