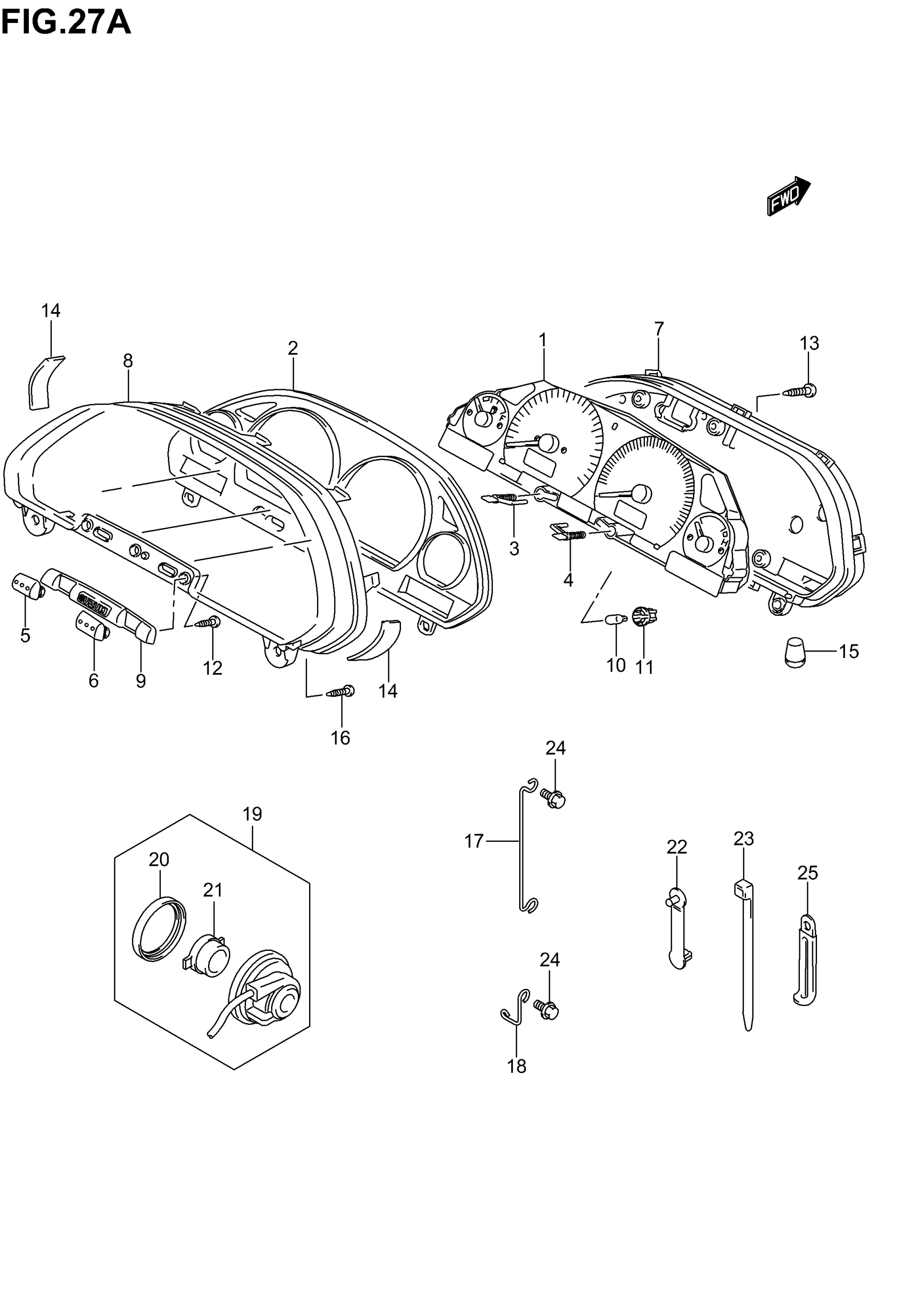

Suzuki AN400 (2006) SPEEDOMETER (AN400SK5/SK6) Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34110-15G90

Unavailable

1

SPEEDOMETER (KILO) | E28

34110-14G80

Unavailable

2

PLATE, WINDOW

34113-14G00

Unavailable

3

LEVER, SELECT

34123-14G00

Unavailable

4

LEVER, ADJUST

34123-14G10

Unavailable

5

SWITCH, SELECT

34141-14G00

Unavailable

6

SWITCH, ADJUST

34142-14G00

Unavailable

7

CASE, LOWER

34152-14G00

Unavailable

8

GLASS

34154-14G00

Unavailable

9

DECORATION, PLATE METER CASE

34157-14G00

Unavailable

10

BULB (T6.5,14V 1.7W)

34171-14F00

$7.37

11

SOCKET (T6.5)

34173-14F00

Unavailable

12

SCREW (3X10)

34183-14F00

$3.03

13

SCREW (3X12)

34183-29F00

$3.84

14

CUSHION (65X22X3)

34188-14G00

Unavailable

15

CUSHION,SPEEDOM This part replaces 34955-10G00.

34955-10G01

$3.03

16

SCREW This part replaces 03541-05203.

03541-0520A

$1.80

17

GUIDE, SENSOR LEAD

34938-14G00

Unavailable

18

GUIDE, SENSOR LEAD

34938-14G10

Unavailable

19

SENSOR,SPEED | Includes Item(s) 20 - 21 This part replaces 34990-14G10.

34990-14G11

$249.50

20

OIL SEAL

09283-43004

$14.03

21

ROTOR,SPEEDOMET This part replaces 34983-14G00.

34983-14G01

$41.01

22

CLAMP (L:33)

09407-03401

$3.07

23

CLAMP (L:145)

09407-14407

$3.57

24

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

25

CLAMP (L:45)

09404-06429

$1.83
