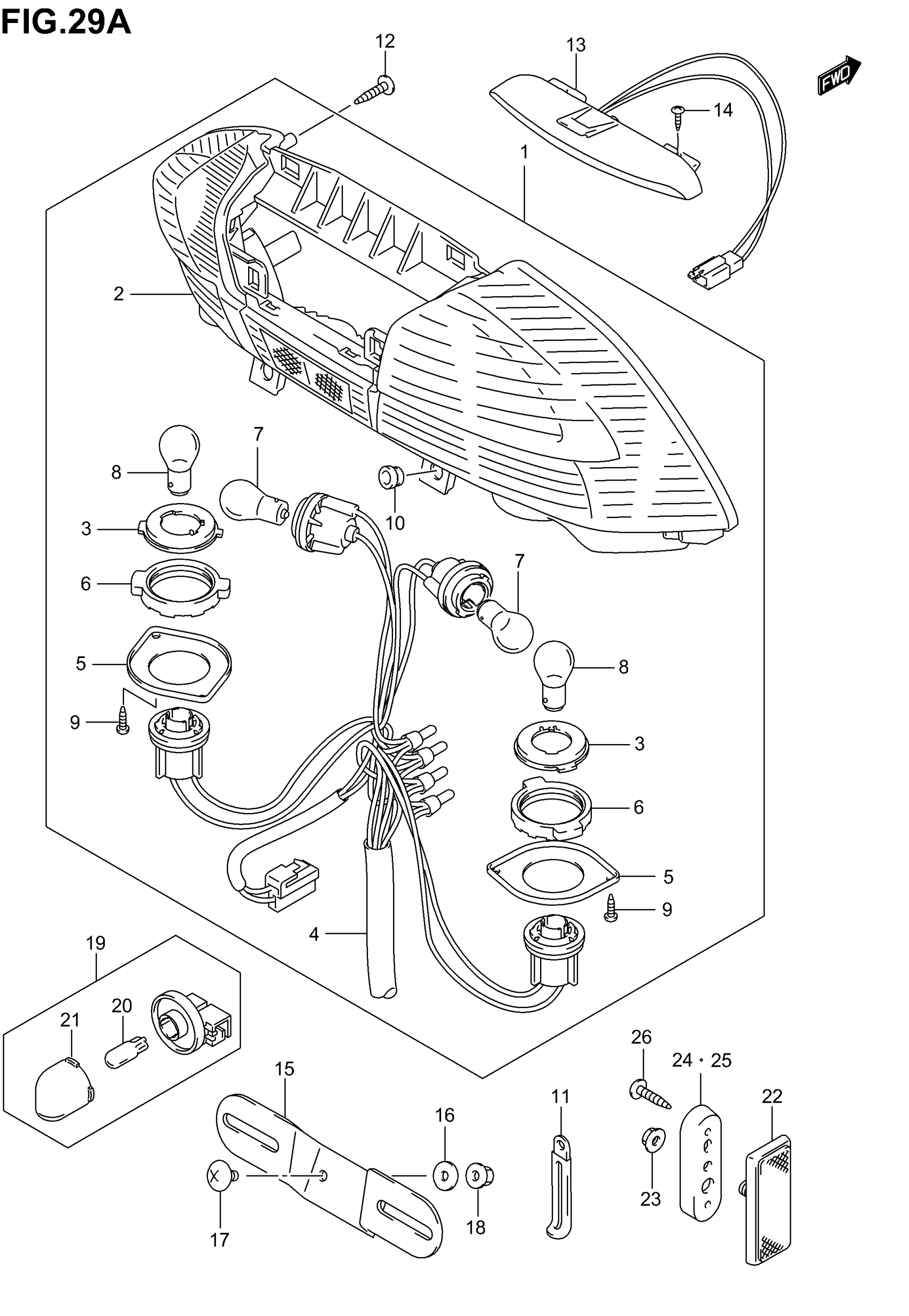

Suzuki AN400 (2006) REAR COMBINATION LAMP (AN400SK5/SK6) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMB | Includes Item(s) 2 - 10

35710-14G50

Unavailable

2

UNIT, LAMP

35720-14G30

Unavailable

3

PLATE NO.1

35716-48B21

$22.82

4

SOCKET & CORD

35718-14G50

Unavailable

5

PLATE, NO.2

35736-48B21

$24.73

6

CUSHION

35765-48B21

$14.63

7

BULB (12V21W)

09471-12186

$16.18

8

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.08

9

SCREW This part replaces 03211-04123.

03211-0412A

$0.73

10

CUSHION

35728-14G00

Unavailable

11

CLAMP (L:45)

09404-06429

$1.82

12

SCREW This part replaces 03541-05163.

03541-0516A

$1.37

13

LAMP ASSY, STOP

35810-17B00

Unavailable

14

.SCREW This part replaces 02142-05123.

02142-0512A

$1.37

15

BRACKET, LICENSE PLATE

35927-24F00

$15.43

16

WASHER (6.5X24X1.2) This part replaces 09160-06140.

09160-06114

$2.01

17

SCREW This part replaces 02142-06163.

02142-0616A

$1.37

18

NUT This part replaces 08316-10063.

08316-1006B

$2.50

19

LAMP ASSY, LICENSE | Includes Item(s) 20 - 21

35910-14F01

$34.10

20

.BULB (12V5W)

09471-12216

$4.84

21

LENS

35912-14F11

$9.35

22

REFLECTOR ASSY, RR SIDE This part replaces 35970-07F00.

35970-07F01

$19.11

23

NUT This part replaces 08316-10053.

08316-1005A

$2.19

24

SPACER, RR, RH

35978-40F00

Unavailable

25

SPACER, RR, LH

35979-40F00

Unavailable

26

SCREW This part replaces 03541-04163.

03541-0416A

$1.43
