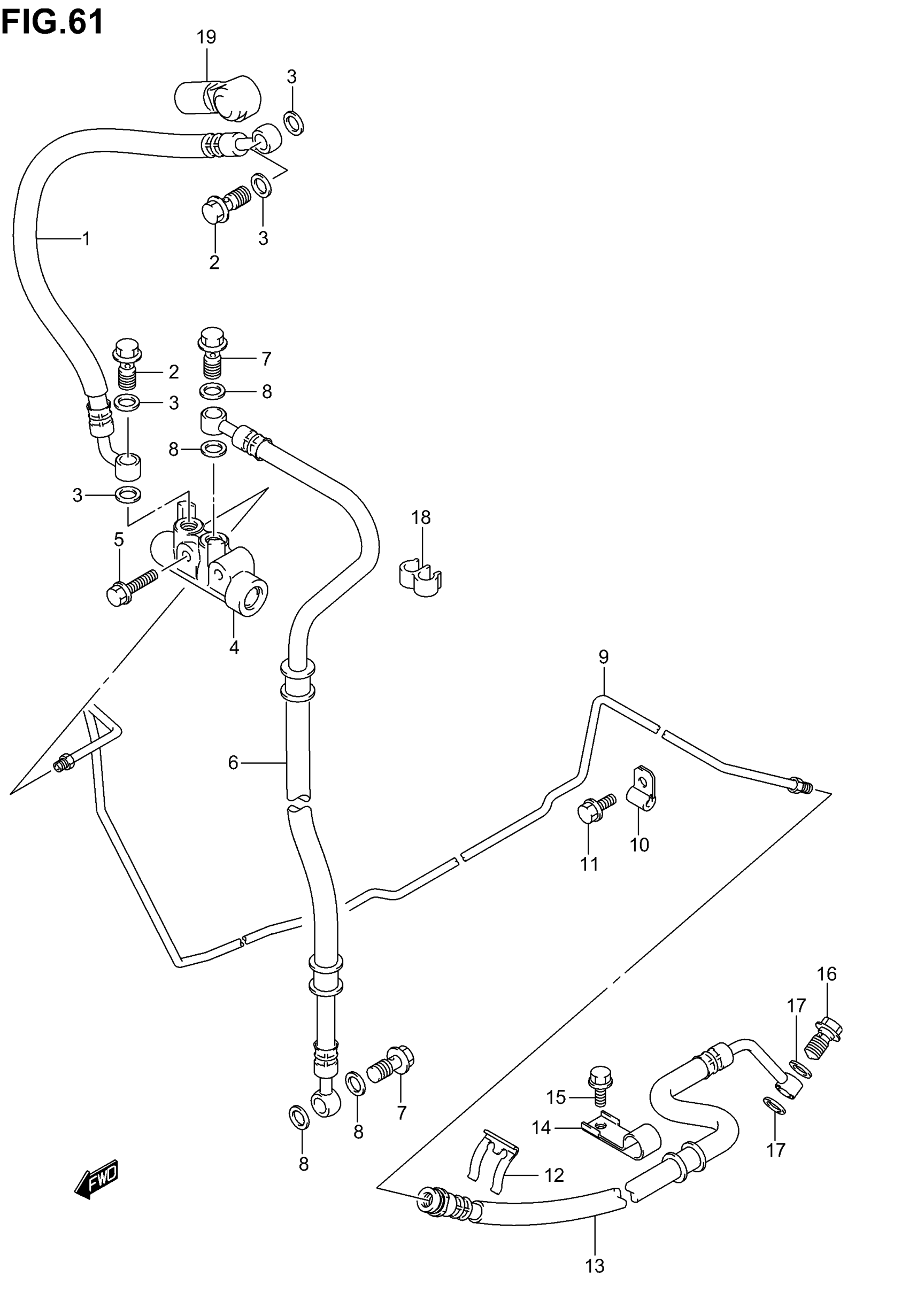

Suzuki AN400 (2006) REAR BRAKE HOSE Diagram

#

Description
Price

1

HOSE This part replaces 69240-14G00.

69240-14G02

Unavailable

2

UNION This part replaces 09360-10042.

09360-10062

$6.43

3

WASHER (10X15X1.5)

09161-10009

$1.84

4

VALVE ASSY,BRAK This part replaces 55910-14F00.

55910-14F01

$228.65

5

BOLT This part replaces 01550-06303.

01550-0630A

$2.32

6

HOSE, REAR BRAKE NO.2 | MODEL K3

69260-14G00

Unavailable

6

HOSE,REAR BRAKE | MODEL K4/K5/K6 This part replaces 69260-14G10.

69260-14G11

$120.72

7

UNION This part replaces 09360-10042.

09360-10062

$6.43

8

WASHER (10X15X1.5)

09161-10009

$1.84

9

PIPE, REAR BRAKE

69250-14G00

Unavailable

10

CLAMP

09403-07401

Unavailable

11

BOLT This part replaces 01547-06163.

01547-0616B

$2.45

12

E RING

09383-13003

$2.30

13

HOSE,RR BRAKE This part replaces 69480-14F10.

69480-14F12

Unavailable

14

CLAMP, REAR BRAKE HOSE NO.1

59268-01D10

Unavailable

15

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

16

UNION This part replaces 09360-10042.

09360-10062

$6.43

17

WASHER (10X15X1.5)

09161-10009

$1.84

18

CLIP

09408-00100

Unavailable

19

BOOT, RR MASTER CYLINDER | AN400SK5/SK6

59712-14G00

Unavailable
