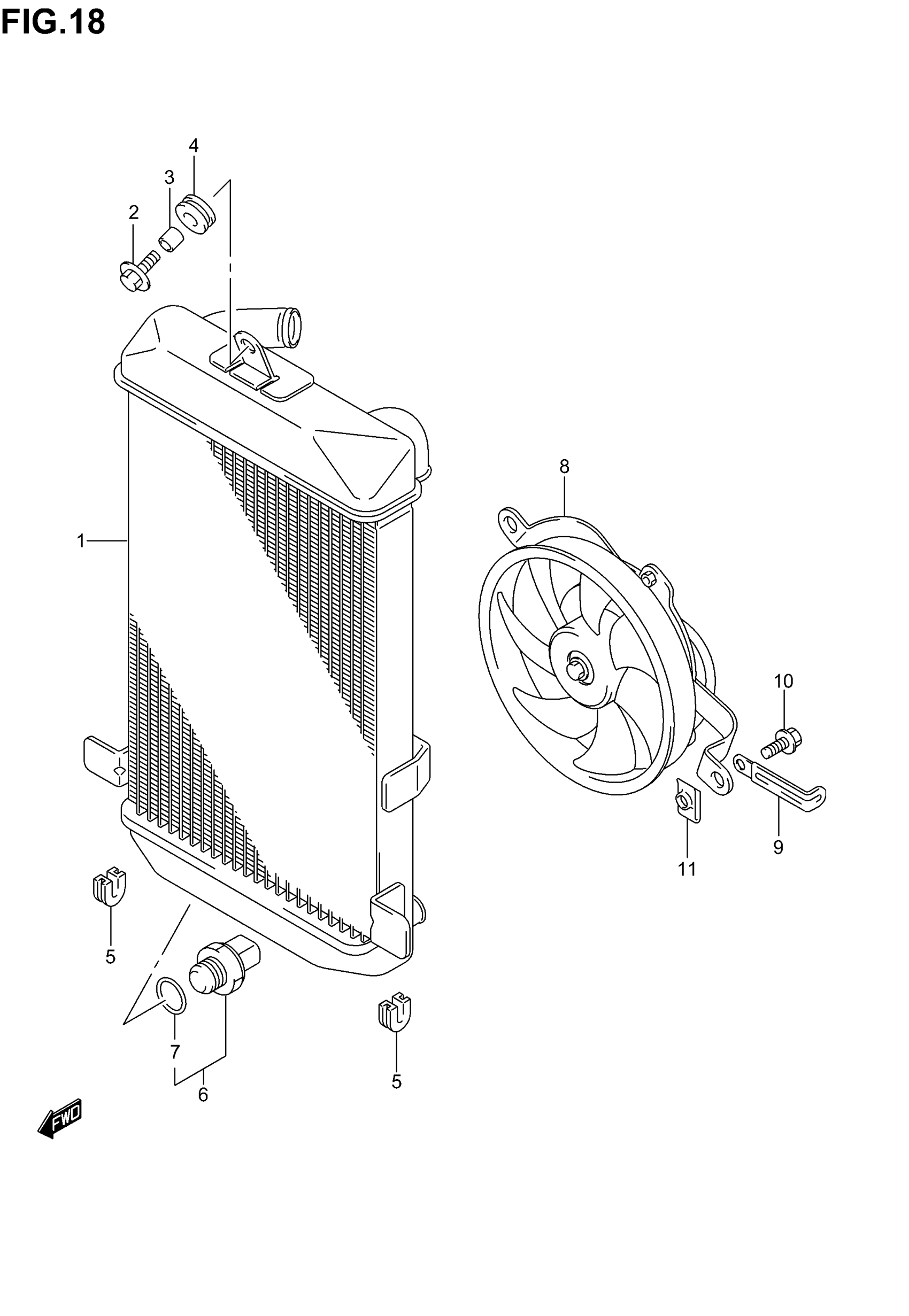

Suzuki AN400 (2006) RADIATOR Diagram

#

Description
Price

1

RADIATOR ASSY, WATER | MODEL K3

17710-14G00

Unavailable

1

RADIATOR ASSY, WATER | MODEL K4/K5/K6

17710-14G10

Unavailable

2

BOLT, 6X20

09116-06167

$2.19

3

SPACER, 6.5X10X10

09180-06310

$1.91

4

CUSHION

09320-10501

$6.23

5

CUSHION

16628-27A00

$2.92

6

SWITCH COMP,FAN | Includes Item(s) 7 This part replaces 17680-50F10.

17680-50F11

$78.18

7

O RING

17689-50F00

$2.53

8

FAN ASSY, RADIATOR | MODEL K3 This part replaces 17800-14G00.

17800-14G10

Unavailable

8

FAN ASSY, RADIATOR | MODEL K4/K5/K6

17800-14G10

Unavailable

9

CLAMP

09404-06429

$1.83

10

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$1.97

11

NUT

17802-14F00

$3.38
