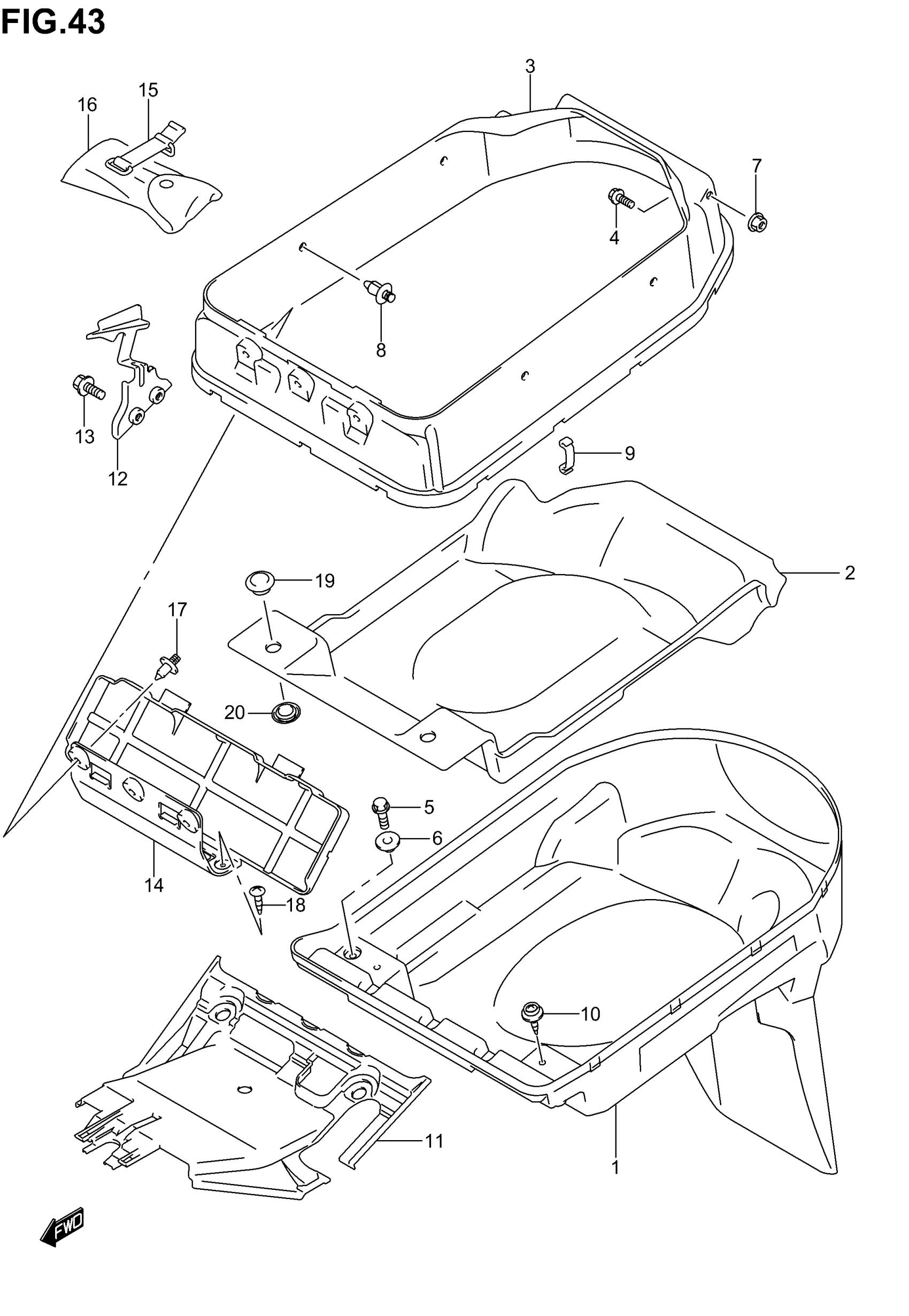

Suzuki AN400 (2006) HELMET BOX Diagram

#

Description
Price

1

BOX, HELMET LOWER (BLACK)

92211-14G10-291

Unavailable

2

MAT, HELMET BOX

92213-14G00

Unavailable

3

BOX, HELMET UPPER

92221-14FA2

Unavailable

4

BOLT

09113-06001

$2.73

5

BOLT

09103-06240

$3.08

6

WASHER

09169-06076

$3.05

7

NUT This part replaces 08316-10063.

08316-1006B

$2.50

8

CLIP (BLACK)

09409-08308-5ES

$1.97

9

CLAMP,HELMET BOX

92214-14G00

$4.18

10

CLIP

09410-00073

$2.28

11

COVER, HELMET BOX FRONT

92212-14G00

Unavailable

12

HOLDER, HELMET RH

95720-14G01

Unavailable

13

BOLT This part replaces 01550-06163.

01550-0616A

$1.97

14

HOLDER, TOOL (GRAY)

41551-14FA3-Y0J

Unavailable

15

BAND, TOOL

09462-00093

$9.24

16

TOOL ASSY This part replaces 09800-21047.

09800-21095

$58.18

17

CLIP (BLACK)

09409-08308-5ES

$1.97

18

SCREW This part replaces 03541-05123.

03541-0512A

$1.49

19

HOOK, MAT NO.1 (GRAY)

75115-80000-5RT

Unavailable

20

HOOK, MAT NO.2

75116-80000

$5.10
