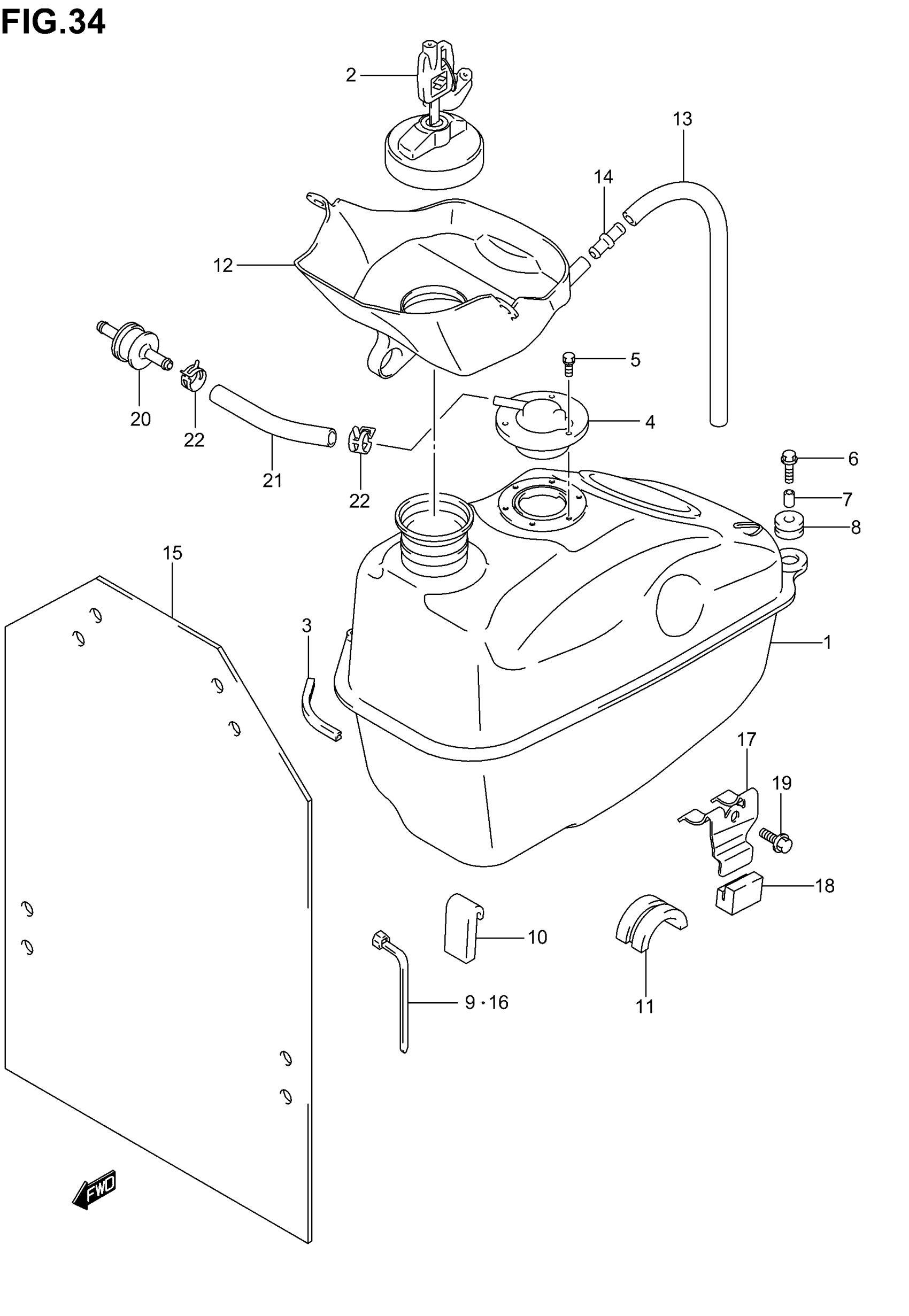

Suzuki AN400 (2006) FUEL TANK Diagram

#

Description
Price

1

TANK,FUEL This part replaces 44110-14G00.

44110-14G02

Unavailable

2

CAP SET,FUEL TANK

44200-14840

$175.18

3

MOLDING

68241-04X50-00B

$27.30

4

VALVE, FUEL CUT

89485-65D00

$90.23

5

BOLT This part replaces 09117-05003.

01570-0510B

$2.53

6

BOLT

09116-06147

$3.20

7

SPACER

09180-06267

$4.10

8

CUSHION,FUEL TANK SIDE This part replaces 44512-04F00.

44512-04F01

$3.86

9

CLAMP

09407-25402

$4.64

10

CUSHION, TANK LOWER RH

44541-14F00

Unavailable

11

CUSHION,FUEL TANK LWR This part replaces 44541-14F10.

44541-14F11

$4.62

12

TRAY, TANK INLET

44261-14G00

Unavailable

13

HOSE(7X10.2X600 This part replaces 09352-70103-600.

09352-70104-600

$5.63

14

JOINT

09367-08001

$4.17

15

HEAT SHIELD, RUBBER

44191-14G00

Unavailable

16

CLAMP

09407-18402

$2.19

17

BRACKET, TANK FRONT

44531-14G00

Unavailable

18

CUSHION,FUEL TA This part replaces 44541-24F00.

44541-24F01

$5.87

19

BOLT This part replaces 01550-06103.

01550-0610A

$1.97

20

VALVE,2 WAY CHECK

85451-75100

$46.78

21

HOSE (L:600!230)

09355-54116-600

$12.06

22

CLIP (ID:10.5,H:8)

09401-10409

$2.26
