Description

Price

1

PUMP ASSY,FUEL | Includes Item(s) 2 - 18 This part replaces 15100-14G00.

15100-14G11

$443.18

2

PLATE SET

15120-14G00

Unavailable

3

CLIP

15135-14G00

Unavailable

4

HOSE

15181-14G00

Unavailable

5

FILTER

15410-14G00

$43.13

6

PUMP, FUEL

15110-14G00

$362.35

7

HOLDER

15115-14G00

Unavailable

8

SCREW

13601-14G50

Unavailable

9

PLATE

15119-14G00

$5.38

10

STRAINER

15420-14G00

$52.23

11

COVER

15425-14G00

Unavailable

12

CUSHION

15116-14G00

Unavailable

13

O RING

13278-10G10

Unavailable

14

REGULATOR

15610-14G00

Unavailable

15

SCREW

13602-14G50

Unavailable

16

CLAMP

13671-26E10

Unavailable

17

HOSE

15615-14G00

Unavailable

18

CLAMP

13432-14G00

Unavailable

19

O-RING

15201-35F00

$27.60

20

BOLT, OIL GALLERY This part replaces 07120-06123.

07120-0612B

$3.04

21

HOSE, FUEL | Includes Item(s) 22

15810-14G00

Unavailable

22

RING

15817-14G00

$4.52

23

BOLT, NO.3 This part replaces 07130-06103.

07130-0610B

$3.21

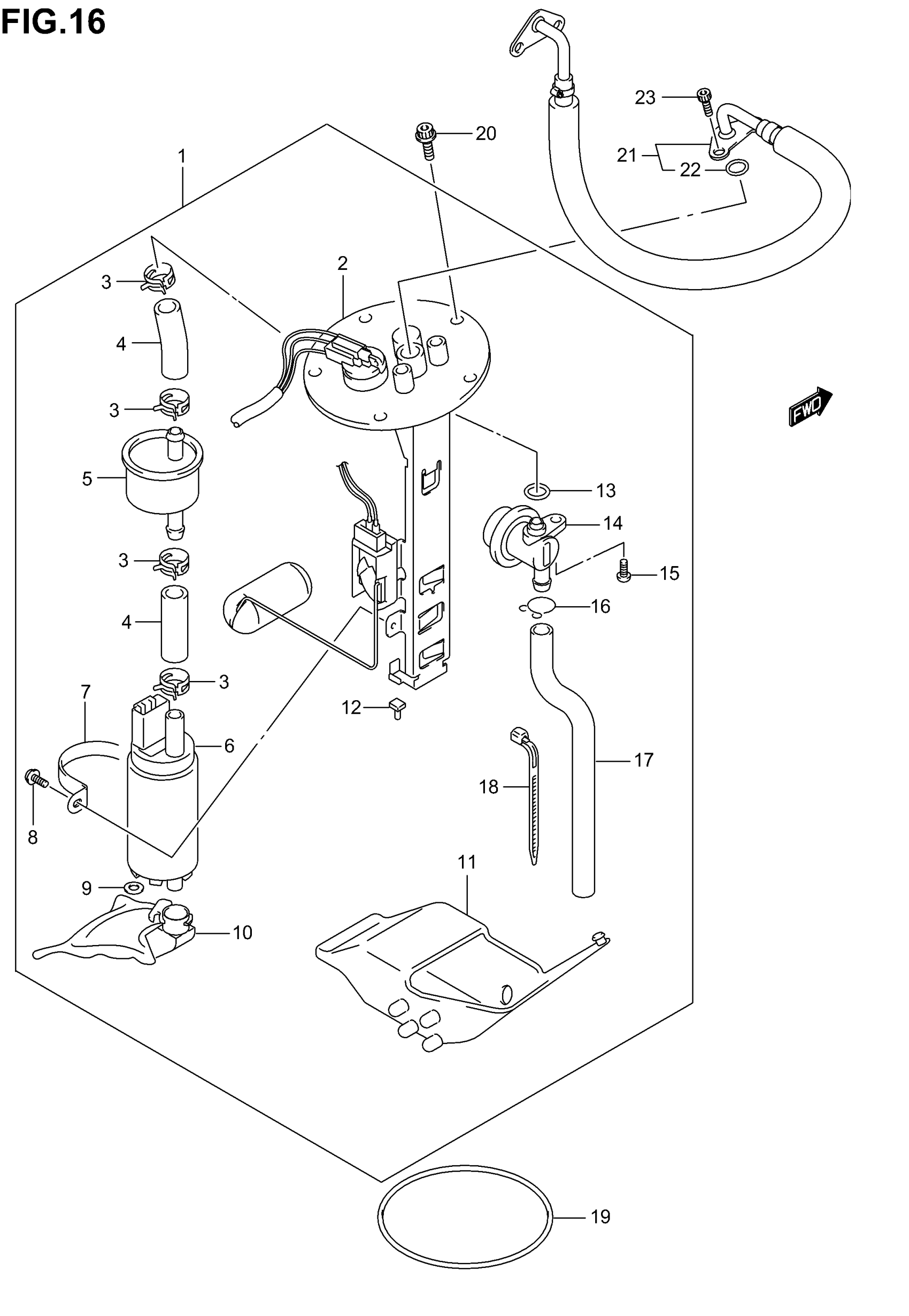

Suzuki AN400 (2006) FUEL PUMP Diagram

PUMP ASSY,FUEL | Includes Item(s) 2 - 18 This part replaces 15100-14G00.

PLATE SET

CLIP

HOSE

FILTER

PUMP, FUEL

HOLDER

SCREW

PLATE

STRAINER

COVER

CUSHION

O RING

REGULATOR

SCREW

CLAMP

HOSE

CLAMP

O-RING

BOLT, OIL GALLERY This part replaces 07120-06123.

HOSE, FUEL | Includes Item(s) 22

RING

BOLT, NO.3 This part replaces 07130-06103.
