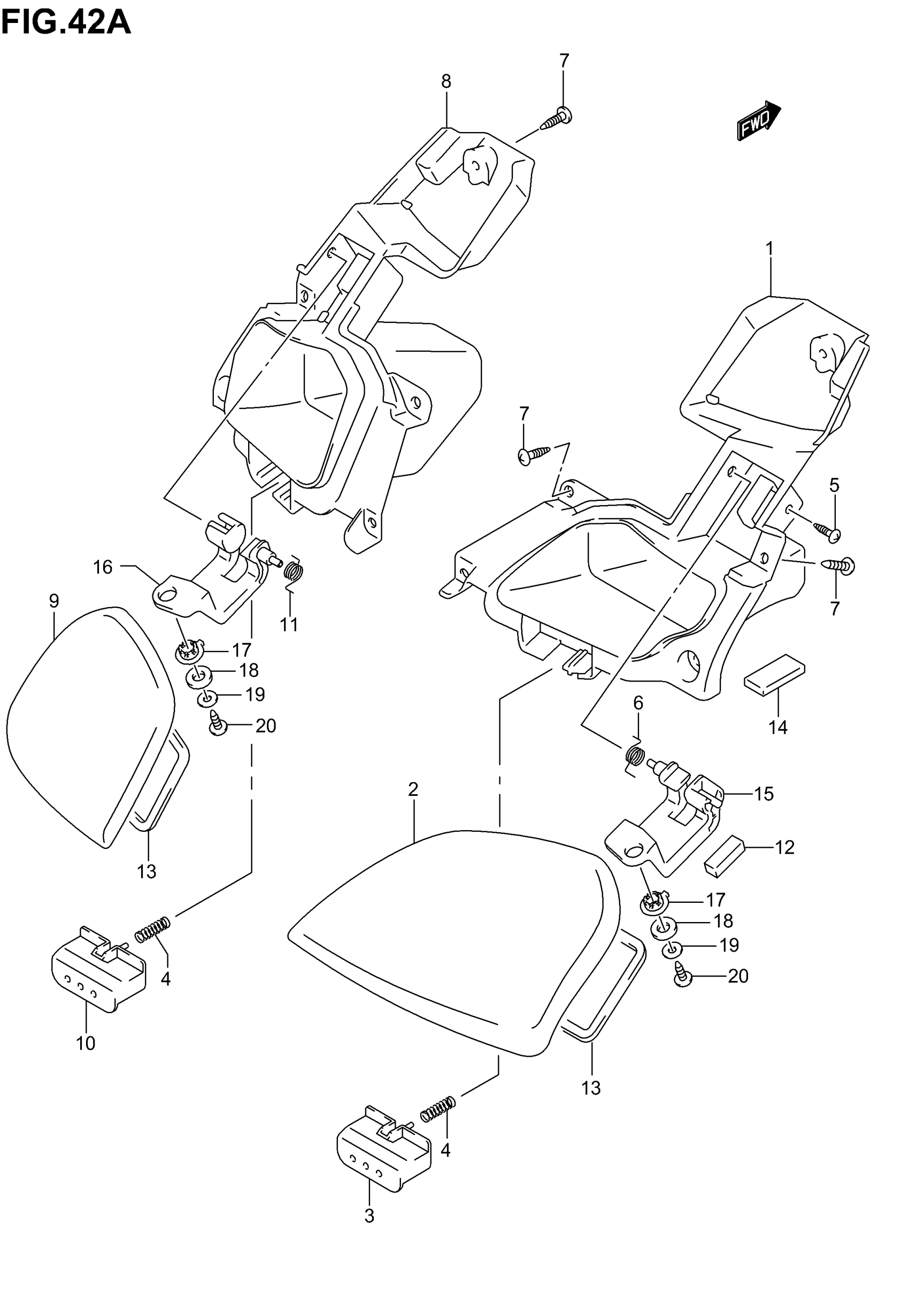

Suzuki AN400 (2006) FRONT PANEL BOX (MODEL K4/K5/K6) Diagram

#

Description
Price

1

BOX, PANEL RH (GRAY)

92141-14G01-Y0J

Unavailable

2

LID, PANEL RH (GRAY)

92142-14G10-Y0J

$23.47

3

LOCK, PANEL BOX RH (GRAY)

92143-14G00-Y0J

$12.35

4

SPRING This part replaces 92144-14G00.

92144-14G01

$5.47

5

SCREW (4x12) This part replaces 03541-04123.

03541-0412A

$1.49

6

SPRING, PANEL LID RH This part replaces 92145-14G00.

92145-14G01

$6.94

7

SCREW This part replaces 03541-05163.

03541-0516A

$1.49

8

BOX, FRONT PANEL LH (GRAY)

92151-14G01-Y0J

Unavailable

9

LID, PANEL LH (GRAY)

92152-14G10-Y0J

Unavailable

10

LOCK, PANEL BOX LH (GRAY)

92153-14G00-Y0J

$12.82

11

SPRING, PANEL LID LH This part replaces 92155-14G00.

92155-14G01

$6.94

12

CUSHION, BOX NO.1

92146-14G10

$5.67

13

CUSHION, BOX NO.2

92147-14G00

$5.98

14

CUSHION

92154-14G00

Unavailable

15

ARM, LID RH

92148-14G10

$19.57

16

ARM, LID LH

92158-14G10

Unavailable

17

STOPPER

92149-14G10

$7.63

18

WASHER

09160-05048

$2.02

19

CUSHION

09320-09004

$3.03

20

SCREW

09132-05041

$2.06
